1861167

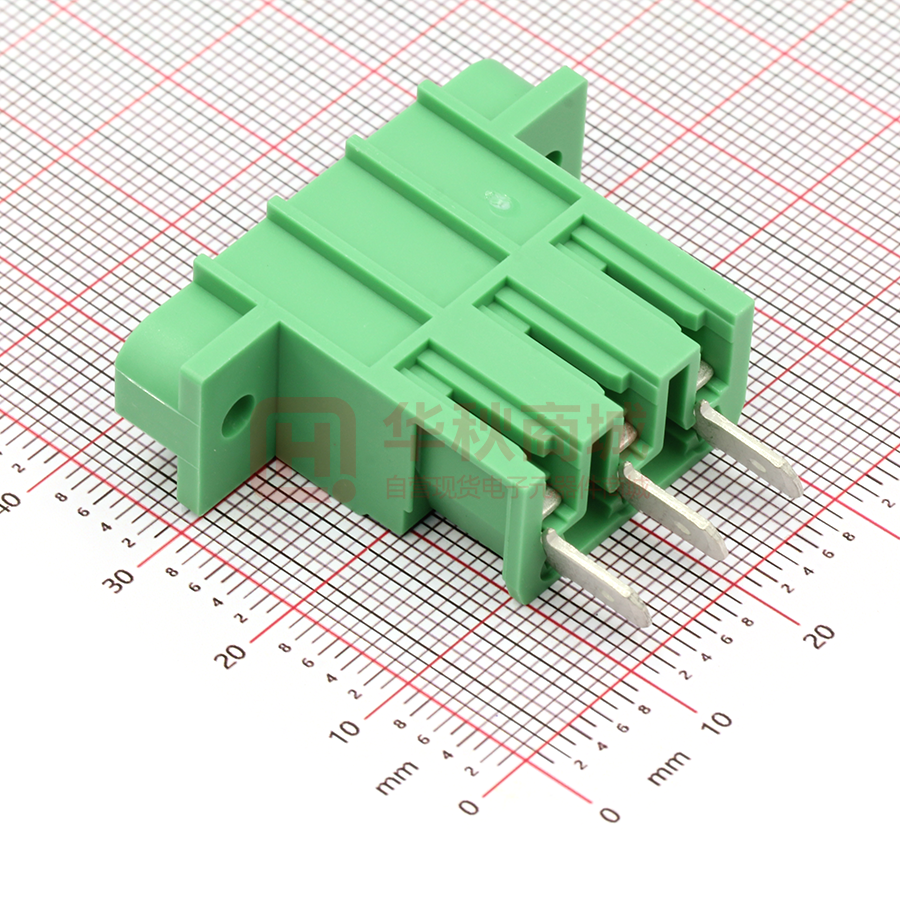

https://www.phoenixcontact.com/us/products/1861167 Header - DFK-PC 4/ 3-G-7,62-FS4,8 - 1861167 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, Nominal current: 15 A, Rated voltage (III/2): 400 V, Number of positions: 3, Pitch: 7.62 mm, Connection method: Solder/Slip-on connection, Color: green, Contact surface: Tin, Mounting: Direct mounting The figure shows a 5-pos. version of the product Product Features ■ ■ ■ ■ Slip-on plug-in connection on the inside of the device (solder connection available on request) Can be plugged into PC 4 and PC 5 plugs Lateral mounting flanges (for screw set see accessories) Feed-through connectors for a panel thickness of 1 to 5 mm Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 8.0 g Custom tariff number 85366990 Country of origin Poland Technical data Dimensions Pitch 7.62 mm Dimension a 15.24 mm General Range of articles DFK-PC 4/..-G -FS4,8 Insulating material group I 04/06/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1861167 Header - DFK-PC 4/ 3-G-7,62-FS4,8 - 1861167 Technical data General Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 400 V Rated voltage (II/2) 800 V Connection in acc. with standard EN-VDE Nominal current IN 15 A Nominal cross section 4 mm² Maximum load current 15 A Insulating material PA Flammability rating according to UL 94 V2 Number of positions 3 Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 4 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 4 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 10 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V2 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27141190 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27141134 eCl@ss 9.0 27141134 04/06/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1861167 Header - DFK-PC 4/ 3-G-7,62-FS4,8 - 1861167 Classifications ETIM ETIM 3.0 EC001283 ETIM 4.0 EC001283 ETIM 5.0 EC001283 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V   B C Nominal current IN 20 A 20 A UL Recognized  04/06/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1861167 Header - DFK-PC 4/ 3-G-7,62-FS4,8 - 1861167 Approvals   B C Nominal voltage UN 300 V 300 V   B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V cUL Recognized  EAC  EAC  cULus Recognized  Drawings Dimensional drawing 30 24 29 18 8,35 a+22,84 21 12 3 1 = 2-pos. 2 = 5-pos. 3 = 12-pos. 6 0 0 20 14,3 Current carrying capacity [A] Diagram 7,8 40 60 80 100 7,62 7,62 a Ambient temperature [°C] Derating curve for: PC 4/..-ST-7,62 with DFK-PC 4/..-G-7,62-FS4,8 04/06/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1861167 Header - DFK-PC 4/ 3-G-7,62-FS4,8 - 1861167 Dimensional drawing 6,5±0,1 13,8±0,1 3,3 ±0,3 b c±0,1 Dimension b = 22.81 mm; dimension c = 30.48 mm Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/06/2016   Page 5 / 5
