1861234

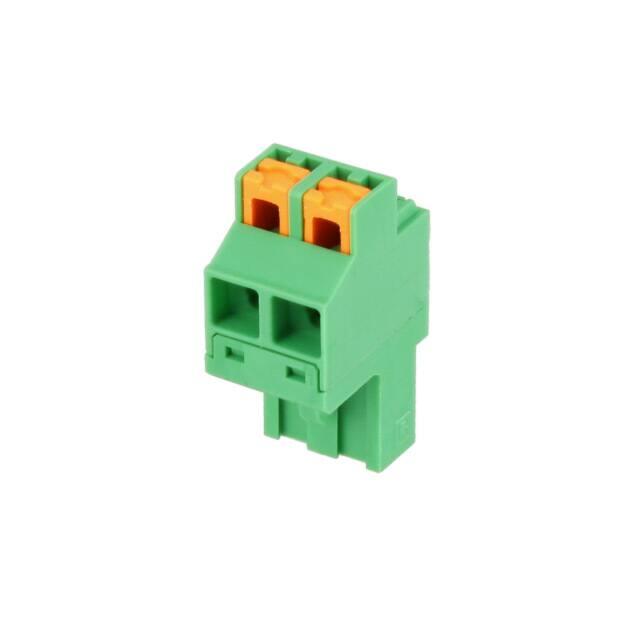

2017-07-06 Product version 00  Data sheet Document revision 1 Order No.: 1861234 Type: FKCOR 2,5/ 2-ST-5,08 Plug component, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 2 2.5 mm² green 5.08 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 12 A 320 V 90 ° packed in cardboard   1   The figure shows a 10-position version The conductor connection orthogonal to the direction of operation simplifies the cabling of DIN-rail-mountable devices   Your advantages Time saving push-in connection, tools not required Intuitive use through colour coded actuation lever Quick and convenient testing using integrated test option Can be combined with the MSTB 2´,5 range Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1861234 © PHOENIX CONTACT 2017 2 2017-07-06 XX Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Specifications for ferrules ...................................................................................................... 4 5.3 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 4 6.1 Dimensions for the product .................................................................................................... 4 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 10 Mechanical tests...................................................................................................................... 8 10.1 Termination and connection method ......................................................................................... 8 10.2 Pull-out test ........................................................................................................................ 8 11 Electrical tests ......................................................................................................................... 9 11.1 Electrical data ..................................................................................................................... 9 11.2 Air and creepage distances .................................................................................................... 9 12 Current carrying capacity/derating curves ............................................................................. 10 13 Environmental and durability tests ......................................................................................... 11 13.1 Vibration test .................................................................................................................... 11 14 Classification for connectors.................................................................................................. 11 15 Approvals .............................................................................................................................. 11 16 Commercial Data................................................................................................................... 12 17 Accessories ........................................................................................................................... 12 18 Combination tests.................................................................................................................. 13   Table of contents 1 © PHOENIX CONTACT 2017 3   Document revision 1   1861234 FKCOR 2,5/ 2-ST-5,08 REF 1861234 PHOENIX CONTACT 2 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2017       4 Document revision 1 REF 1861234 PHOENIX CONTACT 3 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 item properties Order No. 1861234 Type FKCOR 2,5/ 2-ST-5,08 Type of contact Female connector Range of articles FKCOR 2,5/..-ST Pitch 5.08 mm Number of positions 2 Connection method Push-in spring connection 5.1 Connection capacity Conductor cross section, solid 0.2 mm² to 2.5 mm² Conductor cross section, flexible 0.2 mm² to 2.5 mm² Conductor cross section AWG/kcmil 24 to 12 Stripping length 10 mm 5.2 Specifications for ferrules Ferrules without insulating collar, according to DIN 46228-1 Cross section: 0.25 mm²; Length: 7 mm Cross section: 0.34 mm²; Length: 7 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 8 mm ... 10 mm Ferrules with insulating collar, according to DIN 46228-4 Cross section: 0.14 mm²; Length: 8 mm Cross section: 0.25 mm²; Length: 8 mm ... 10 mm Cross section: 0.34 mm²; Length: 8 mm ... 10 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Material data   5.3   5 Document revision 1 Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Terminal point surface Surface contact area   Note Sn 4 µm ... 8 µm Sn 4 µm ... 8 µm hot-dip tin-plated Insulating material data Housing Actuation element Insulating material PA PBT CTI according to IEC 60112 600 275 Flammability rating according to UL 94 V0 V0 Color green (6021) orange 6 Dimensions 6.1 Dimensions for the product REF 1861234 © PHOENIX CONTACT 2017 Surface characteristics PHOENIX CONTACT 4 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 Document revision 1 23.7 mm Width 10.03 mm Total height 14.3 mm Dimension a 5.08 mm © PHOENIX CONTACT 2017       Length REF 1861234 PHOENIX CONTACT 5 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 Series drawing © PHOENIX CONTACT 2017       7 Document revision 1 REF 1861234 PHOENIX CONTACT 6 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 8 Document revision 1 Packaging information Type of packaging packed in cardboard Pieces per package 250 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2017       Ambient temperature (storage/transport) REF 1861234 PHOENIX CONTACT 7 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 10 Document revision 1 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual test Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 8N Withdraw strength per pos. approx. 11 N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 20 N 10.1 Termination and connection method IEC 60999-1:1999-11 Check for damage to conductor or loosening Test passed 10.2   Specification Pull-out test Termination and connection method: pull-out test IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.2 mm² / solid / > 10 N Conductor cross section/conductor type/tractive force actual value 0.2 mm² / stranded / > 10 N 2.5 mm² / solid / > 50 N Conductor cross section/conductor type/tractive force actual value 2.5 mm² / stranded / > 50 N Conductor cross section/conductor type/tractive force actual value AWG 12 / stranded / > 60 N © PHOENIX CONTACT 2017 Conductor cross section/conductor type/tractive force actual value     Specification REF 1861234 PHOENIX CONTACT 8 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 11 Electrical tests 11.1 Electrical data Rated current / conductor cross section Document revision 1 12 A / 2.5 mm² Rated insulation voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Contact resistance 1.3 mΩ Degree of pollution 2 11.2 Air and creepage distances Component Plug component Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group CTI 600 Rated insulation voltage 250 V 320 V 630 V Rated surge voltage 4 kV 4 kV 4 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 3 mm 3 mm 3 mm Minimum value of the creepage path requirement in acc. with table 3.2 mm 3 mm 3.2 mm © PHOENIX CONTACT 2017       Comparative tracking index (IEC 60112:2003-01) REF 1861234 PHOENIX CONTACT 9 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 12 Document revision 1 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 2.5 mm² Type: FKCO(R/W) 2,5/...-ST-5,08-LR with MSTBA(R/W) 2,5/...-G-5,08-LR 81345_1000_en Type: FKCO(R/W) 2,5/...-ST-5,08(-LR) with MSTBVA 2,5/...-ST-5,08(-LR) © PHOENIX CONTACT 2017       81491_1000_en REF 1861234 PHOENIX CONTACT 10 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 13 Environmental and durability tests 13.1 Vibration test Document revision 1 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis 14 Classification for connectors Specification IEC 61984:2008-10 Main features Connectors without switching capacity (COC) Construction form Fixed connectors Strain relief elements without strain relief Connection method Can be reconnected Protection against electric shock Not encapsulated - touch-proof when inserted Protective conductor without PE Lock no Connection method Screwless terminal points Approvals   15 Use group B D mm²/AWG/kcmil 26-12 26-12 300 V 300 V Current 12 A 10 A © PHOENIX CONTACT 2017   Voltage   cULus Recognized  REF 1861234 PHOENIX CONTACT 11 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 16 Document revision 1 Commercial Data Order No. 1861234 Type FKCOR 2,5/ 2-ST-5,08 Pieces per package 250 Net weight 5.3 g GTIN 4055626125312 Information that applies locally, see link on page 1 Country of origin 17 Information that applies locally, see link on page 1 Accessories Description Order No. Type Coding profile, is inserted into the slot on the plug or inverted header, red insulating material 1734634 CP-MSTB 0201744 MPS-MT 0201647 RPS Actuation tool, for ST terminal blocks, insulated, also suitable for use as a 1205053 bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with nonslip grip SK 5,08/3,8:FORTL.ZAHLEN © PHOENIX CONTACT 2017       0804293 SZS 0,6X3,5 REF 1861234 PHOENIX CONTACT 12 / 13 2017-07-06 XX 1861234 FKCOR 2,5/ 2-ST-5,08 18 Document revision 1 Combination tests FKCOR 2,5/..-ST MSTBA 2,5/..-GLR MSTBVA 2,5/..-GLR Specification IEC 61984 IEC 61984 Insertion/withdrawal force per position approx. 8 N / 11 N approx. 10 N / 12 N Polarization when inserted Requirement > 20 N Test passed Test passed Contact holder in insert Requirements > 20 N Test passed Test passed Contact resistance R1 1.3 mΩ 2.5 mΩ Insertion/withdrawal cycles 25 25 Contact resistance R2 1.3 mΩ 2.4 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 4.8 kV 4.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 2.21 kV 2.21 kV Insulation resistance Requirements > 5 MΩ > 1.5 TΩ > 1 TΩ Tested number of positions 24 24 Tested conductor cross section 2.5 mm² 2.5 mm² Mechanical tests (A)   Endurance tests (B) Test current 12 A 12 A Upper limiting temperature Requirements < 100°C Test passed Test passed -40 °C/2 h -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 4.8 kV 4.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 2.21 kV 2.21 kV   Thermal tests (C) Test sequence 1: low temperature storage   Climatic tests (D) Specification IEC 61984:2008-10 IEC 61984:2008-10 Degree of protection Finger safety with IP20 test finger Finger safety with IP20 test finger REF 1861234 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2017 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
