1861441

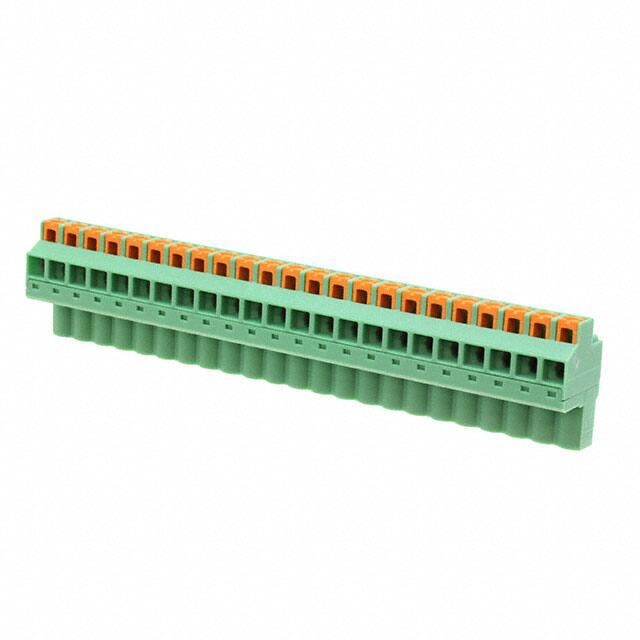

https://www.phoenixcontact.com/us/products/1861441 Printed-circuit board connector - FKCOR 2,5/23-ST-5,08 - 1861441 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 23, Pitch: 5.08 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin The figure shows a 10-position version Why buy this product  The conductor connection orthogonal to the direction of operation simplifies the cabling of DIN-rail-mountable devices  Time saving push-in connection, tools not required  Intuitive use through colour coded actuation lever  Quick and convenient testing using integrated test option  Can be combined with the MSTB 2´,5 range Key Commercial Data Packing unit 1 GTIN GTIN 4055626125558 Custom tariff number 85366990 Technical data Dimensions Length 23.7 mm Height 14.3 mm Width 116.71 mm Pitch 5.08 mm Dimension a 111.76 mm 04/13/2017   Page 1 / 4 https://www.phoenixcontact.com/us/products/1861441 Printed-circuit board connector - FKCOR 2,5/23-ST-5,08 - 1861441 Technical data General Range of articles FKCOR 2,5/..-ST Type of contact Female connector Number of positions 23 Connection method Push-in spring connection Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Stripping length 10 mm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Standards and Regulations Connection in acc. with standard EN-VDE Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 5.1 27260705 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 5.0 EC002638 04/13/2017   Page 2 / 4 https://www.phoenixcontact.com/us/products/1861441 Printed-circuit board connector - FKCOR 2,5/23-ST-5,08 - 1861441 Classifications ETIM ETIM 6.0 EC002638 UNSPSC UNSPSC 13.2 39121409 Approvals Approvals Approvals cULus Recognized Ex Approvals Approval details cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D mm²/AWG/kcmil 26-12 26-12 Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V  E60425-19931011 Accessories Accessories Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker 04/13/2017   Page 3 / 4 https://www.phoenixcontact.com/us/products/1861441 Printed-circuit board connector - FKCOR 2,5/23-ST-5,08 - 1861441 Accessories Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting type: Adhesive, for terminal block width: 5.08 mm, Lettering field: 5.08 x 3.8 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, Color: silver     Reducing plug - RPS - 0201647 Reducing plug, Color: gray     Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 04/13/2017   Page 4 / 4
