Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch:
5.08 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin

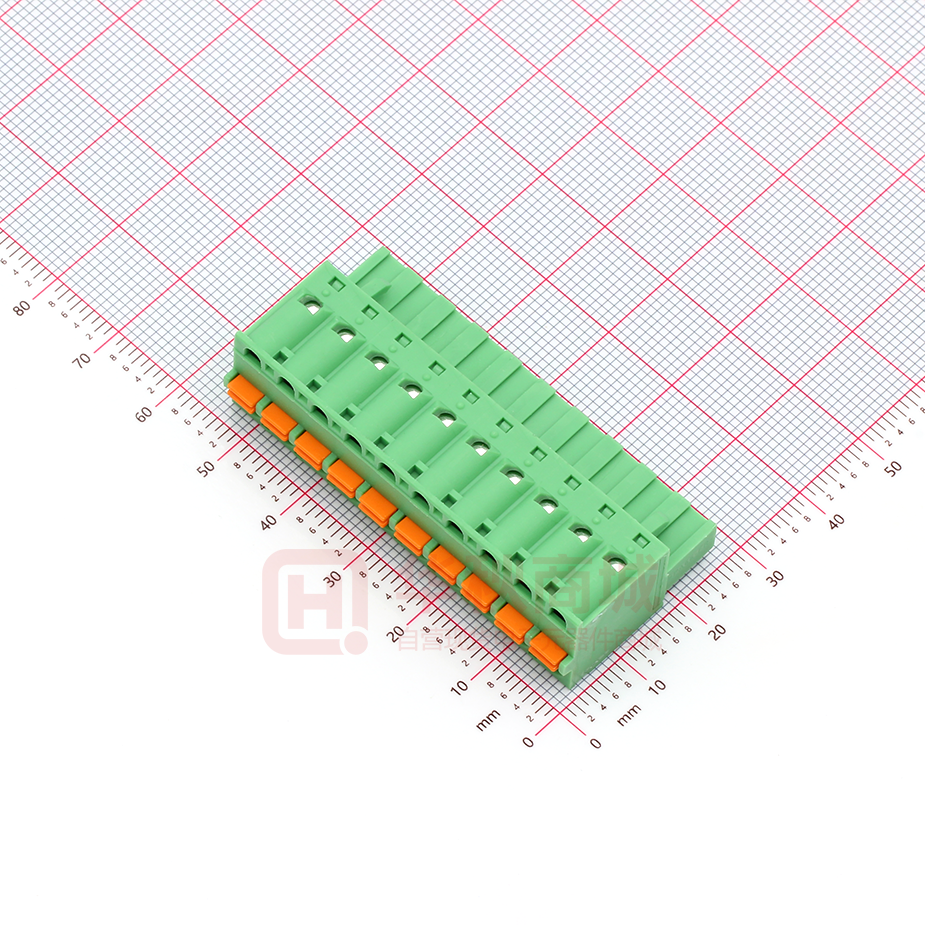

The figure shows a 10-position
version of the product
Why buy this product
For larger numbers of positions up to 24-pos., visit: www.phoenixcontact.net/catalog
Can be combined with the MSTB 2,5 range
Fast conductor connection thanks to Push-in spring-cage connection
Two test connections for accommodating 2 mm Ø test pins or 2.3 mm Ø test plug
Contacting of solid or stranded conductors with ferrules without actuating the opening lever directly in the terminal point
Key commercial data
Packing unit
1
Minimum order quantity
50
Catalog page
Page 248 (CC-2011)
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
Dimensions / positions
Pitch
5.08 mm
Dimension a
45.72 mm
Number of positions
10
Technical data
Range of articles
FKC 2,5/..-ST
Insulating material group
I
Rated surge voltage (III/3)
4 kV
Rated surge voltage (III/2)
4 kV
Rated surge voltage (II/2)
4 kV
03.10.2012 Page 1 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Technical data
Technical data
Rated voltage (III/2)
320 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal voltage UN
250 V
Nominal cross section
2.5 mm²
Maximum load current
12 A
Insulating material
PA
Inflammability class according to UL 94
V0
Internal cylindrical gage
A2
Stripping length
10 mm
Nominal voltage, UL/CUL Use Group B
300 V
Nominal current, UL/CUL Use Group B
10 A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
10 A
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
2.5 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
2.5 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve max.
2.5 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
min.
0.25 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
max.
2.5 mm²
Conductor cross section AWG/kcmil min.
24
Conductor cross section AWG/kcmil max
12
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
1.5 mm²
Minimum AWG according to UL/CUL
26
Maximum AWG according to UL/CUL
12
Classifications
eclass
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
03.10.2012 Page 2 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Classifications
eclass
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
unspsc
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
B
D
mm²/AWG/kcmil
26-12
26-12
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
VDE report with production monitoring
mm²/AWG/kcmil
0.2-2.5
03.10.2012 Page 3 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Approvals
Nominal current IN
12 A
Nominal voltage UN
250 V
cUL Recognized
B
D
mm²/AWG/kcmil
26-12
26-12
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
GOST
IECEE CB Scheme
mm²/AWG/kcmil
0.2-2.5
Nominal current IN
12 A
Nominal voltage UN
250 V
GOST
cULus Recognized
Accessories
Accessories
Assembly
Strain relief - STZ 4-FKC-5,08 - 1876877
Strain relief for snapping into the latching chambers of the plugs, 4-pos.
Strain relief - STZ 8-FKC-5,08 - 1876880
Strain relief for snapping into the latching chambers of the plug components, 8-pos.
03.10.2012 Page 4 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Marking
Marker cards - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker cards, Card, white, Labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 (99)100, Mounting type: Adhesive, For terminal block width: 5.08 mm
Marker cards - SK 5,08/3,8:UNBEDRUCKT - 0805412
Marker cards, Card, white, Unlabeled, Can be labeled with: Thermomark R, Thermomark X, Thermomark S,
Mounting type: Adhesive, For terminal block width: 5.08 mm
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Plug/Adapter
Coding profile - CP-MSTB - 1734634
Keying profile, is inserted into the slot on the plug or inverted header, red insulating material
Test plugs - MPS-MT - 0201744
Test plugs
03.10.2012 Page 5 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
Reducing plug - RPS - 0201647
Reducing plug, Color: gray
Tools
03.10.2012 Page 6 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x
3.5 x 100 mm, 2-component grip, with non-slip grip
Additional products
Plug-in block - UMSTBVK 2,5/10-G-5,08 - 1788198
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08
mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: DIN rail
Feed-through terminal block - UK 3-MSTB-5,08 - 3002034
Feed-through terminal block, Connection method: Special and hybrid connection, Cross section: 0.2
mm² - 4 mm², AWG 24 - 12, Width: 5.08 mm, Color: gray, Mounting type: NS 32, NS 35/15, NS 35/7.5
Base strip - MVSTBU 2,5/10-GB-5,08 - 1788619
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08
mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: Direct mounting
Feed-through terminal block - UK 3D-MSTBV-5,08 - 3002131
Feed-through terminal block, Connection method: Special and hybrid connection, Cross section: 0.2
mm² - 4 mm², AWG 24 - 12, Width: 5.08 mm, Color: gray, Mounting type: NS 32, NS 35/15, NS 35/7.5
03.10.2012 Page 7 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Feed-through terminal block - UK 3-MVSTB-5,08-LA 24RD - 3002102
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7.5, Pitch: 5.08 mm, Width: 5.08, Color: gray
Feed-through terminal block - UK 3-MVSTB-5,08 - 3002076
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7.5, Pitch: 5.08 mm, Width: 5.1, Color: gray
Double-level terminal block - UKK 3-MSTB-5,08 - 2770888
Double-level modular terminal block with COMBICON plug-in zone, nominal current: 12 A, nominal voltage:
250 V, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, mounting type: NS 35/7.5, NS 35/15, NS 32, pitch:
5.08 mm, width: 5.08, color: gray
Feed-through terminal block - UKK 3-MSTBVH-5,08 - 2770846
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 35/7.5, NS 35/15, NS 32, Pitch: 5.08 mm, Width: 5.08, Color: gray
Feed-through terminal block - UKK 3-MSTB-5,08-PE - 1876615
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 320 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 35/7.5, NS 35/15, NS 32, Pitch: 5.08 mm, Width: 5.08, Color: greenyellow
Feed-through terminal block - ZFKK 1,5-MSTBV-5,08 - 1873016
Feed-through terminal block, Connection method: Special and hybrid connection, MSTB plug entry, Cross
section: 0.2 mm² - 2.5 mm², Width: 5.08 mm, Color: gray, Mounting: NS 35/7.5, NS 35/15 / Ex data new / /
03.10.2012 Page 8 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Base strip - MSTBVK 2,5/10-G-5,08 - 1788800
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08
mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: DIN rail
Housing - MSTBHK 2,5/10-G-5,08 - 1765030
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08
mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: DIN rail
Base strip - MSTBA 2,5/10-G-5,08-LA - 1768024
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Base strip - MSTBA 2,5/10-G-5,08 - 1757323
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Base strip - MSTB 2,5/10-G-5,08-LA - 1770795
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
03.10.2012 Page 9 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Accessories
Base strip - MDSTBV 2,5/10-G1-5,08 - 1762583
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering, In combination with MVSTB or FKCV plug components,
both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Base strip - MDSTB 2,5/10-G1-5,08 - 1762457
Header, Nominal current: 10 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering, In combination with MVSTB or FKCV plug components,
both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with
TMSTBP plug components is not possible!
Base strip - SMSTBA 2,5/10-G-5,08 - 1767452
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Base strip - SMSTB 2,5/10-G-5,08 - 1769544
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Printed-circuit board connector - ICC 2,5/10-STZ-5,08 - 1823927
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08
mm, Connection method: Crimp connection, Color: green, Corresponding male crimp contacts with current
[A] and conductor cross section range [mm²] data: 10A/ICC-MT 0,5-1,0 (3190577); 10A/ICC-MT 0,5-1,0 BA
(3190603); 12A/ICC-MT 1,5-2,5 (3190580); 12A/ICC-MT 1,5-2,5 BA (3190593). BA = Bandkontakte
Drawings
03.10.2012 Page 10 / 11
https://www.phoenixcontact.com/us/produkte/1873139
Printed-circuit board connector - FKC 2,5/10-ST-5,08 - 1873139
Dimensioned drawing
a+5,7
15
25,6
8,3
2,85
5,08
a
© Phoenix Contact 2012 - all rights reserved
