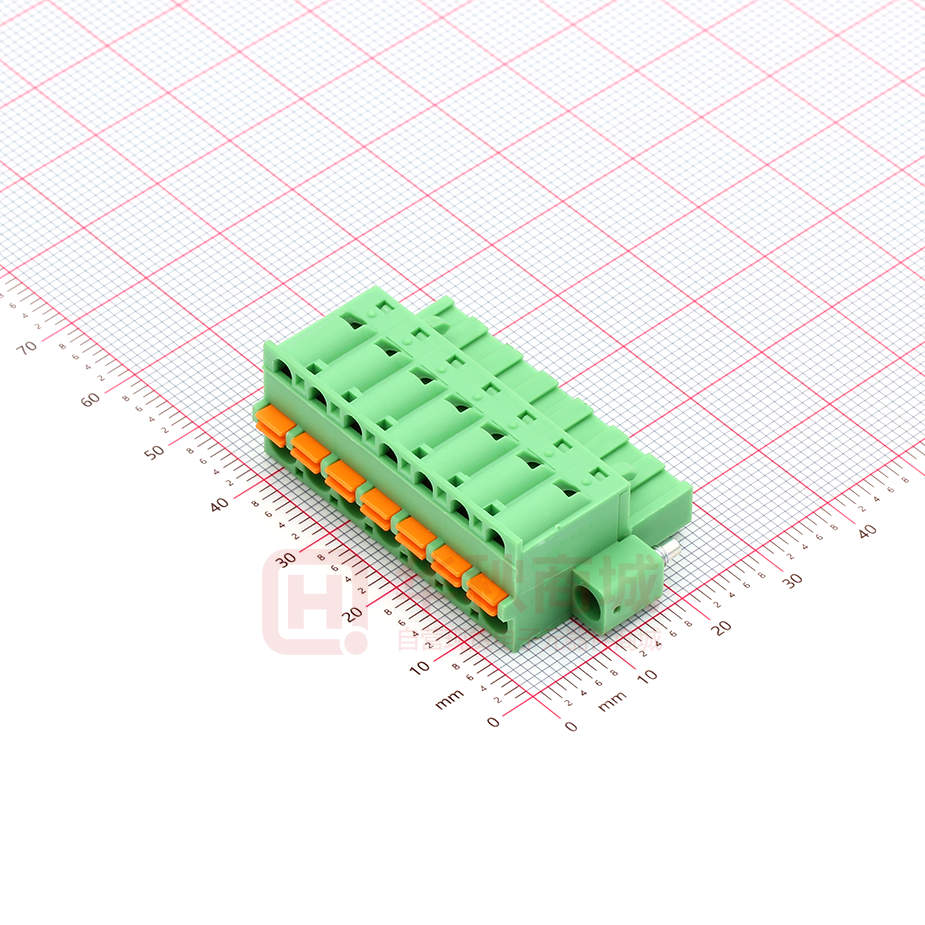

https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin The figure shows a 10-position version of the product Why buy this product  Time saving push-in connection, tools not required  Intuitive use through colour coded actuation lever  Quick and convenient testing using integrated test option  Screwable flange for superior mechanical stability  Can be combined with the MSTB 2´,5 range Key Commercial Data Packing unit 1 STK GTIN GTIN 4017918142643 Weight per Piece (excluding packing) 13.480 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length [ l ] 25.73 mm Width [ w ] 45.66 mm Height [ h ] 15 mm Pitch 5.08 mm 01/08/2018   Page 1 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Technical data Dimensions Dimension a 30.48 mm General Range of articles FKC 2,5/..-STF Type of contact Female connector Number of positions 7 Connection method Push-in spring connection Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 320 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A2 Stripping length 10 mm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Minimum AWG according to UL/CUL 26 01/08/2018   Page 2 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Technical data Connection data Maximum AWG according to UL/CUL 12 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings Dimensional drawing 4,74 a+5,7 15 25,6 8,3 5,08 5,08 a Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 01/08/2018   Page 3 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Classifications ETIM ETIM 6.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals VDE Gutachten mit Fertigungsüberwachung / cULus Recognized / EAC / IECEE CB Scheme Ex Approvals Approval details VDE Gutachten mit Fertigungsüberwachung    http://www.vde.com/en/Institute/OnlineService/ VDE-approved-products/Pages/Online-Search.aspx     mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V cULus Recognized    40004701  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D mm²/AWG/kcmil 26-12 26-12 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V  E60425-19931011 01/08/2018   Page 4 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Approvals EAC      B.01742 IECEE CB Scheme    http://www.iecee.org/  DE1-56062-M1-B1B2     mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V Accessories Accessories Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Screwdriver tools 01/08/2018   Page 5 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Accessories Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, color: silver     Reducing plug - RPS - 0201647 Reducing plug, color: gray     Strain relief - STZ 4-FKC-5,08 - 1876877 Strain relief for snapping into the latching chambers of the plugs, 4-pos.     Strain relief - STZ 8-FKC-5,08 - 1876880 Strain relief for snapping into the latching chambers of the plug components, 8-pos.     Additional products 01/08/2018   Page 6 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Accessories Base strip - MSTB 2,5/ 7-GF-5,08 - 1776553 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Printed-circuit board connector - MSTBV 2,5/ 7-GF-5,08 - 1777125 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Base strip - MDSTB 2,5/ 7-GF-5,08 - 1842416 Header, nominal current: 10 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Base strip - MDSTBV 2,5/ 7-GF-5,08 - 1845688 Header, nominal current: 10 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Printed-circuit board connector - DFK-MSTBA 2,5/ 7-GF-5,08 - 1899032 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     01/08/2018   Page 7 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Accessories Printed-circuit board connector - DFK-MSTBVA 2,5/ 7-GF-5,08 - 1899333 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Base strip - EMSTB 2,5/ 7-GF-5,08 - 1899663 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Press-in technology     Base strip - EMSTBV 2,5/ 7-GF-5,08 - 1915262 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Press-in technology     Base strip - MSTB 2,5/ 7-GF-5,08 THT - 1927616 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CC 2,5/ 7-GF-5,08 P26THR - 1954744 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     01/08/2018   Page 8 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Accessories Printed-circuit board connector - CC 2,5/ 7-GF-5,08 P26THRR88 - 1954854 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CCV 2,5/ 7-GF-5,08 P26THR - 1955688 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CCV 2,5/ 7-GF-5,08 P26THRR88 - 1955798 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CC 2,5/ 7-GFL-5,08P26THRR56 - 1956386 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left (L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR pin strip.     Printed-circuit board connector - CC 2,5/ 7-GFR-5,08P26THRR56 - 1956522 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left (L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR pin strip.     01/08/2018   Page 9 / 10 https://www.phoenixcontact.com/us/products/1873252 Printed-circuit board connector - FKC 2,5/ 7-STF-5,08 - 1873252 Accessories Printed-circuit board connector - CCV 2,5/ 7-GFR-5,08P26THR - 1959817 Header, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 7, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left (L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR pin strip.     Phoenix Contact 2018 © - all rights reserved http://www.phoenixcontact.com 01/08/2018   Page 10 / 10
