1873265

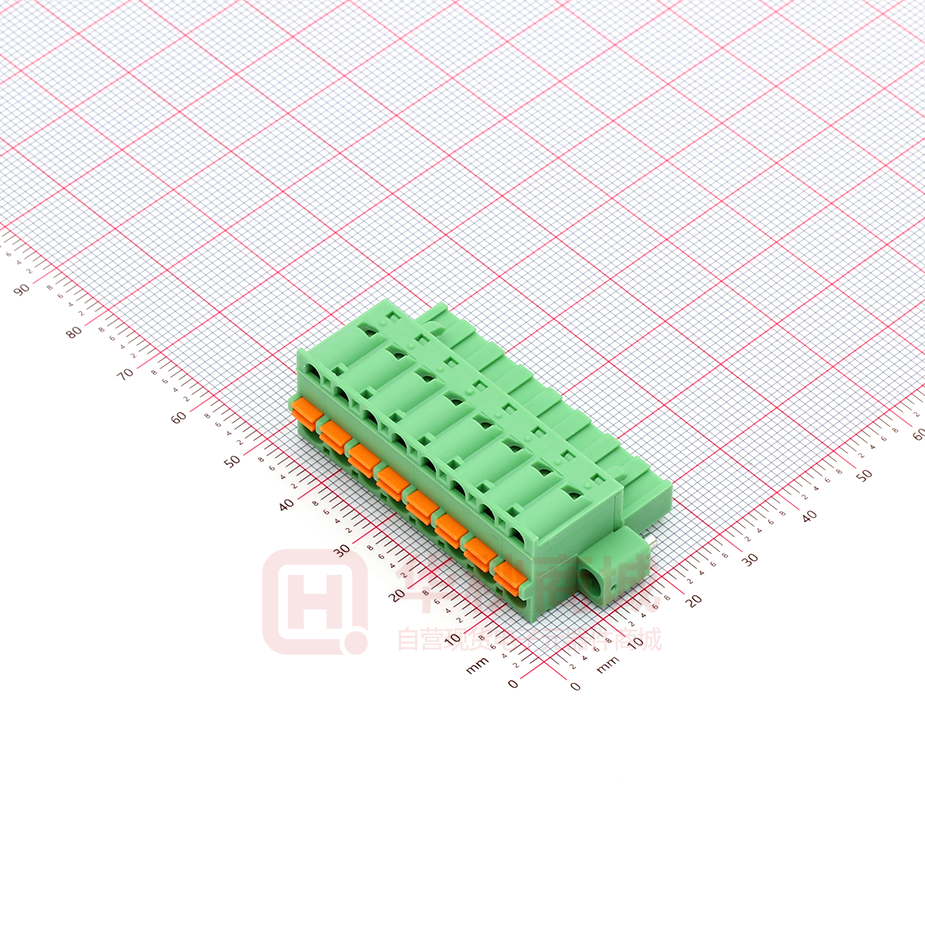

https://www.phoenixcontact.com/us/products/1873265 Printed-circuit board connector - FKC 2,5/ 8-STF-5,08 - 1873265 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin The figure shows a 10-position version of the product Product Features ■ ■ ■ ■ ■ Can be combined with the MSTB 2,5 range For larger numbers of positions up to 24-pos., visit: phoenixcontact.net/products Fast conductor connection thanks to Push-in spring-cage connection Two test connections for accommodating 2 mm Ø test pins or 2.3 mm Ø test plug Contacting of solid or stranded conductors with ferrules without actuating the opening lever directly in the terminal point Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 15.35 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Width 50.74 mm Pitch 5.08 mm Dimension a 35.56 mm General Range of articles FKC 2,5/..-STF Insulating material group I Rated surge voltage (III/3) 4 kV 04/05/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1873265 Printed-circuit board connector - FKC 2,5/ 8-STF-5,08 - 1873265 Technical data General Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A2 Stripping length 10 mm Number of positions 8 Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Minimum AWG according to UL/CUL 26 Maximum AWG according to UL/CUL 12 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 04/05/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1873265 Printed-circuit board connector - FKC 2,5/ 8-STF-5,08 - 1873265 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC / cULus Recognized / EAC Ex Approvals Approvals submitted Approval details 04/05/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1873265 Printed-circuit board connector - FKC 2,5/ 8-STF-5,08 - 1873265 Approvals VDE Gutachten mit Fertigungsüberwachung      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V IECEE CB Scheme      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V EAC  cULus Recognized    B D mm²/AWG/kcmil 26-12 26-12 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V EAC  Drawings Dimensional drawing 4,74 a+5,7 15 25,6 8,3 5,08 5,08 a 04/05/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1873265 Printed-circuit board connector - FKC 2,5/ 8-STF-5,08 - 1873265 Diagram Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/05/2016   Page 5 / 5
