1873304

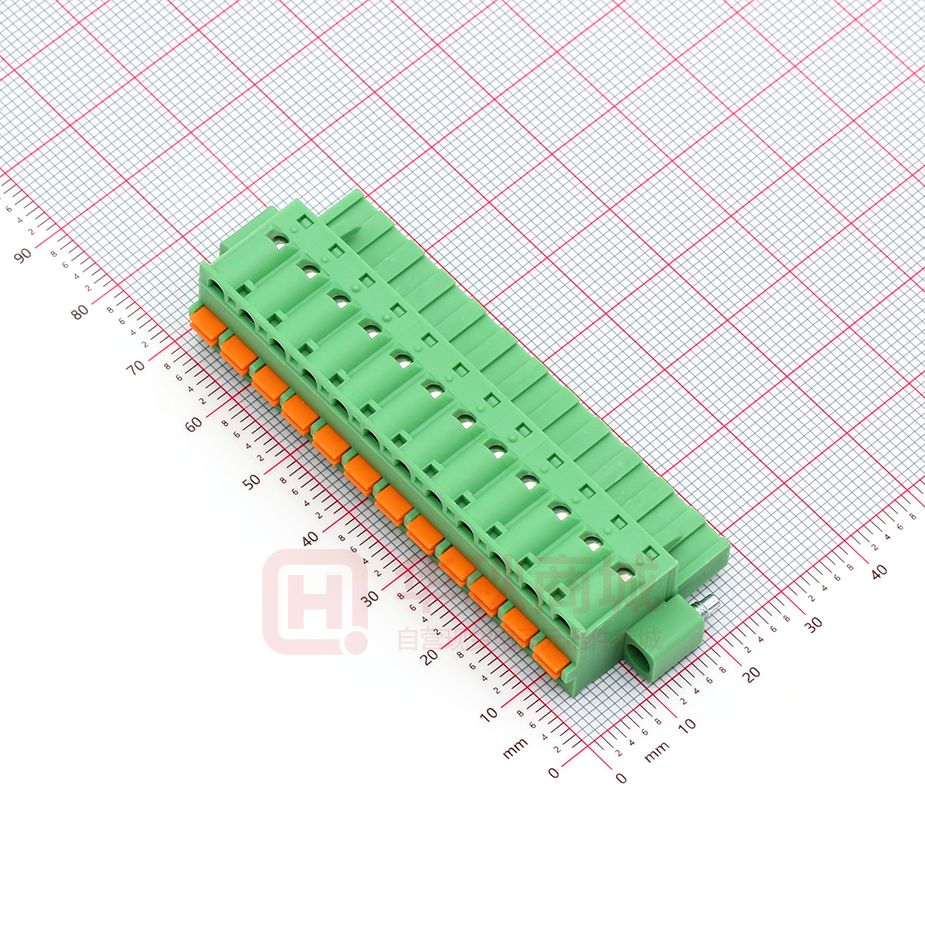

https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin The figure shows a 10-position version of the product Your advantages  Time saving push-in connection, tools not required  Intuitive use through colour coded actuation lever  Quick and convenient testing using integrated test option  Screwable flange for superior mechanical stability  Can be combined with the MSTB 2,5 range Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918142698 Weight per Piece (excluding packing) 23.060 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length [ l ] 25.73 mm Width [ w ] 71.06 mm Height [ h ] 15 mm Pitch 5.08 mm 07/24/2019   Page 1 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Technical data Dimensions Dimension a 55.88 mm General Range of articles FKC 2,5/..-STF Number of positions 12 Connection method Push-in spring connection Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 320 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A2 Stripping length 10 mm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Minimum AWG according to UL/CUL 26 Maximum AWG according to UL/CUL 12 07/24/2019   Page 2 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Technical data Specifications for ferrules Recommended crimping pliers 1212034 CRIMPFOX 6 Ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440309 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 ETIM 6.0 EC002638 ETIM 7.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 07/24/2019   Page 3 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Classifications UNSPSC UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5 VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5 EAC      DE1-60988-B1B2  40004701  B.01742 07/24/2019   Page 4 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A mm²/AWG/kcmil 26-12 26-12  E60425-19931011 Accessories Accessories Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Strain relief 07/24/2019   Page 5 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Accessories Strain relief - STZ 4-FKC-5,08 - 1876877 Strain relief for snapping into the latching chambers of the plugs, 4-pos.     Strain relief - STZ 8-FKC-5,08 - 1876880 Strain relief for snapping into the latching chambers of the plug components, 8-pos.     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, color: gray     Reducing plug - RPS - 0201647 Reducing plug, color: gray     Additional products Feed-through header - MSTB 2,5/12-GF-5,08 - 1776605 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     07/24/2019   Page 6 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Accessories Printed-circuit board connector - MSTBV 2,5/12-GF-5,08 - 1777170 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Feed-through header - MDSTB 2,5/12-GF-5,08 - 1842461 PCB headers, nominal current: 10 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Feed-through header - MDSTBV 2,5/12-GF-5,08 - 1845730 PCB headers, nominal current: 10 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Printed-circuit board connector - DFK-MSTBA 2,5/12-GF-5,08 - 1899087 Feed-through header, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Printed-circuit board connector - DFK-MSTBVA 2,5/12-GF-5,08 - 1899388 Feed-through header, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     07/24/2019   Page 7 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Accessories Feed-through header - EMSTB 2,5/12-GF-5,08 - 1899715 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Press-in technology     Feed-through header - EMSTBV 2,5/12-GF-5,08 - 1915314 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Press-in technology     Printed-circuit board connector - CC 2,5/12-GF-5,08 P26THR - 1954799 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CC 2,5/12-GF-5,08 P26THRR88 - 1954906 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CCV 2,5/12-GF-5,08 P26THR - 1955730 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     07/24/2019   Page 8 / 9 https://www.phoenixcontact.com/us/products/1873304 Printed-circuit board connector - FKC 2,5/12-STF-5,08 - 1873304 Accessories Printed-circuit board connector - CCV 2,5/12-GF-5,08 P26THRR88 - 1955840 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CC 2,5/12-GFL-5,08P26THR - 1956360 PCB headers, nominal current: 12 A, number of positions: 12, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, Two-in-one – Pin strips must always be made up of a left (L) and a right (R) segment. Please allow for the corresponding counterpart from the accessories to complete the THR pin strip.     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 07/24/2019   Page 9 / 9
