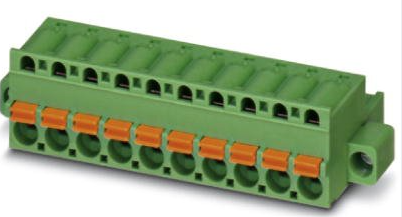

2017-10-11 Product version 08 Data sheet Document revision 0 Order No.: 1873317 Type: FKC 2,5/13-STF-5,08 Plug component, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 13 2.5 mm² green 5.08 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 12 A 320 V 0° packed in cardboard   1   The figure shows a 10-position version of the product Your advantages   Time saving push-in connection, tools not required Intuitive use through colour coded actuation lever Quick and convenient testing using integrated test option Screwable flange for superior mechanical stability Can be combined with the MSTB 2´,5 range Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1873317 © PHOENIX CONTACT 2017 2 2017-10-11 Product version 08 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 5.1 Connection capacity ............................................................................................................. 4 5.2 Specifications for ferrules ...................................................................................................... 4 5.3 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 5 6.1 Dimensions for the product .................................................................................................... 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Application............................................................................................................................... 7 9.1 Temperature limit values ....................................................................................................... 7 10 Mechanical tests...................................................................................................................... 8 10.1 Termination and connection method ......................................................................................... 8 10.2 Pull-out test ........................................................................................................................ 8 11 Electrical tests ......................................................................................................................... 9 11.1 Electrical data ..................................................................................................................... 9 11.2 Air and creepage distances .................................................................................................... 9 12 Current carrying capacity/derating curves ............................................................................. 10 13 Environmental and durability tests ......................................................................................... 11 13.1 Vibration test .................................................................................................................... 11 14 Classification for connectors.................................................................................................. 11 15 Approvals .............................................................................................................................. 11 16 Commercial Data................................................................................................................... 12 17 corresponding headers.......................................................................................................... 12 18 Accessories ........................................................................................................................... 12 19 Combination tests.................................................................................................................. 13   Table of contents 1 © PHOENIX CONTACT 2017 3   Document revision 0   1873317 FKC 2,5/13-STF-5,08 REF 1873207 PHOENIX CONTACT 2 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2017       4 Document revision 0 REF 1873207 PHOENIX CONTACT 3 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 item properties Order No. 1873317 Type FKC 2,5/13-STF-5,08 Type of contact Female connector Range of articles FKC 2,5/..-STF Pitch 5.08 mm Number of positions 13 Connection method Push-in spring connection Locking Screw flange Connection capacity Conductor cross section, solid 0.2 mm² to 2.5 mm² Conductor cross section, flexible 0.2 mm² to 2.5 mm² Conductor cross section AWG/kcmil 24 to 12 Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² to 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.25 mm² to 2.5 mm² 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve 0.5 mm² to 1.5 mm² Cylindrical gauge a x b / diameter 2.8 mm x 2.0 mm / 2.0 mm Stripping length 10 mm Specifications for ferrules Ferrules without insulating collar, according to DIN 46228-1 Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Ferrules with insulating collar, according to DIN 46228-4 Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Material data   5.3   5.2   5.1 Material of metal parts Note WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Terminal point surface Surface contact area Sn 4 µm ... 8 µm Sn 4 µm ... 8 µm Surface characteristics hot-dip tin-plated Insulating material data Housing Actuation element Insulating material PA PBT CTI according to IEC 60112 600 600 Flammability rating according to UL 94 V0 V0 Color green (6021) orange (2003) Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C REF 1873207 PHOENIX CONTACT 4 / 13 © PHOENIX CONTACT 2017 5 Document revision 0 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 6 Dimensions 6.1 Dimensions for the product Length Document revision 0 25.73 mm 76.14 mm Total height 15 mm Dimension a 60.96 mm © PHOENIX CONTACT 2017       Width REF 1873207 PHOENIX CONTACT 5 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 Series drawing © PHOENIX CONTACT 2017       7 Document revision 0 REF 1873207 PHOENIX CONTACT 6 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 8 Document revision 0 Packaging information Type of packaging packed in cardboard Pieces per package 50 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2017       Ambient temperature (storage/transport) REF 1873207 PHOENIX CONTACT 7 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 10 Document revision 0 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual test Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 7N Withdraw strength per pos. approx. 7N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 26 N 10.1 Termination and connection method IEC 60999-1:1999-11 Repeated connection and disconnection Test passed Check for damage to conductor or loosening Test passed   Specification 10.2 Pull-out test Termination and connection method: pull-out test IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.2 mm² / solid / > 10 N Conductor cross section/conductor type/tractive force actual value 0.2 mm² / stranded / > 10 N 2.5 mm² / solid / > 50 N Conductor cross section/conductor type/tractive force actual value 2.5 mm² / stranded / > 50 N © PHOENIX CONTACT 2017 Conductor cross section/conductor type/tractive force actual value     Specification REF 1873207 PHOENIX CONTACT 8 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 11 Electrical tests 11.1 Electrical data Rated current / conductor cross section Document revision 0 12 A / 2.5 mm² Rated insulation voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Contact resistance 1.5 mΩ Degree of pollution 2 11.2 Air and creepage distances Component Plug component Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I CTI 600 Rated insulation voltage 320 V 320 V 630 V Rated surge voltage 4 kV 4 kV 4 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 3 mm 3 mm 3 mm Minimum value of the creepage path requirement in acc. with table 4 mm 3 mm 3.2 mm © PHOENIX CONTACT 2017       Comparative tracking index (IEC 60112:2003-01) REF 1873207 PHOENIX CONTACT 9 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 12 Document revision 0 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 2.5 mm² Current strength [A] Type: FKC 2,5/..-STF-5,08 with IC 2,5/..-STGF-5,08 24 20    16 12 = 2-pos.  = 5-pos.  = 16-pos.  = 20-pos. 8 4 0 0 10 20 30  40 50 60 70 80 90 100 110 Ambient temperature [°C] © PHOENIX CONTACT 2017       Type: FKC 2,5/...-STF-5,08 with CC 2,5/...-GSF-5,08 P26THR REF 1873207 PHOENIX CONTACT 10 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 13 Environmental and durability tests 13.1 Vibration test Document revision 0 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis 14 Classification for connectors Specification IEC 61984:2008-10 Main features Connectors without switching capacity (COC) Construction form Fixed connectors Strain relief elements without strain relief Connection method Can be reconnected Protection against electric shock Not encapsulated - touch-proof when inserted Protective conductor without PE Lock no Connection method Screwless terminal points Approvals   15 mm²/AWG/kcmil 0.2-2.5 Voltage 250 V Current 12 A   VDE Gutachten mit Fertigungsüberwachung  cULus Recognized  B D mm²/AWG/kcmil 26-12 26-12   Use group Voltage 300 V 300 V Current 10 A 10 A EAC  mm²/AWG/kcmil 0.2-2.5 Voltage 250 V Current 12 A REF 1873207 © PHOENIX CONTACT 2017 IECEE CB Scheme  PHOENIX CONTACT 11 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 16 Document revision 0 Commercial Data Order No. 1873317 Type FKC 2,5/13-STF-5,08 Pieces per package 50 Net weight 21.697 g GTIN 4017918142704 Information that applies locally, see link on page 1 Country of origin 17 Information that applies locally, see link on page 1 corresponding headers Order No. Type 1736658 MDSTB 2,5/13-GF-5,08 1776618 MSTB 2,5/13-GF-5,08 1777183 MSTBV 2,5/13-GF-5,08 1899090 DFK-MSTBA 2,5/13-GF-5,08 1899391 DFK-MSTBVA 2,5/13-GF-5,08 1899728 EMSTB 2,5/13-GF-5,08 1915327 EMSTBV 2,5/13-GF-5,08 18 Accessories Order No. Type Coding profile, is inserted into the slot on the plug or inverted header, red insulating material 1734634 CP-MSTB Strain relief for snapping into the latching chambers of the plugs, 4-pos. 1876877 STZ 4-FKC-5,08 Strain relief for snapping into the latching chambers of the plug components, 8-pos. 1876880 STZ 8-FKC-5,08 0201744 MPS-MT 0201647 RPS   Description SK 5,08/3,8:FORTL.ZAHLEN © PHOENIX CONTACT 2017   0804293 SZS 0,6X3,5   Actuation tool, for ST terminal blocks, insulated, also suitable for use as a 1205053 bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with nonslip grip REF 1873207 PHOENIX CONTACT 12 / 13 2017-10-11 Product version 08 1873317 FKC 2,5/13-STF-5,08 19 Document revision 0 Combination tests FKC 2,5/..-STF IC 2,5/..-STGF CC 2,5/..-GF Specification IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 7 N / 7 N approx. 8 N / 6 N Polarization when inserted Requirement >20 N Test passed Test passed Contact holder in insert Requirements >20 N Test passed Test passed 1.1 mΩ Durability tests (B) 1.5 mΩ 25 25 Contact resistance R2 1.6 mΩ 1.2 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 4.8 kV 4.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 2.21 kV 2.21 kV Insulation resistance Requirements > 5 MΩ > 0.6 TΩ > 24 GΩ Tested number of positions 20 24 Tested conductor cross section 2.5 mm² 2.5 mm² Test current 12 A DC 12 A DC Upper limiting temperature Requirements < 100°C Test passed Test passed Test sequence 1: low temperature storage -40 °C/2 h -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 4.8 kV 4.8 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 2.21 kV 2.21 kV   Contact resistance R1 Insertion/withdrawal cycles   Thermal tests (C)   Climatic tests (D) Specification IEC 61984:2008-10 IEC 61984:2008-10 Degree of protection Finger safety with IP20 test finger Finger safety with IP20 test finger REF 1873207 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2017 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
