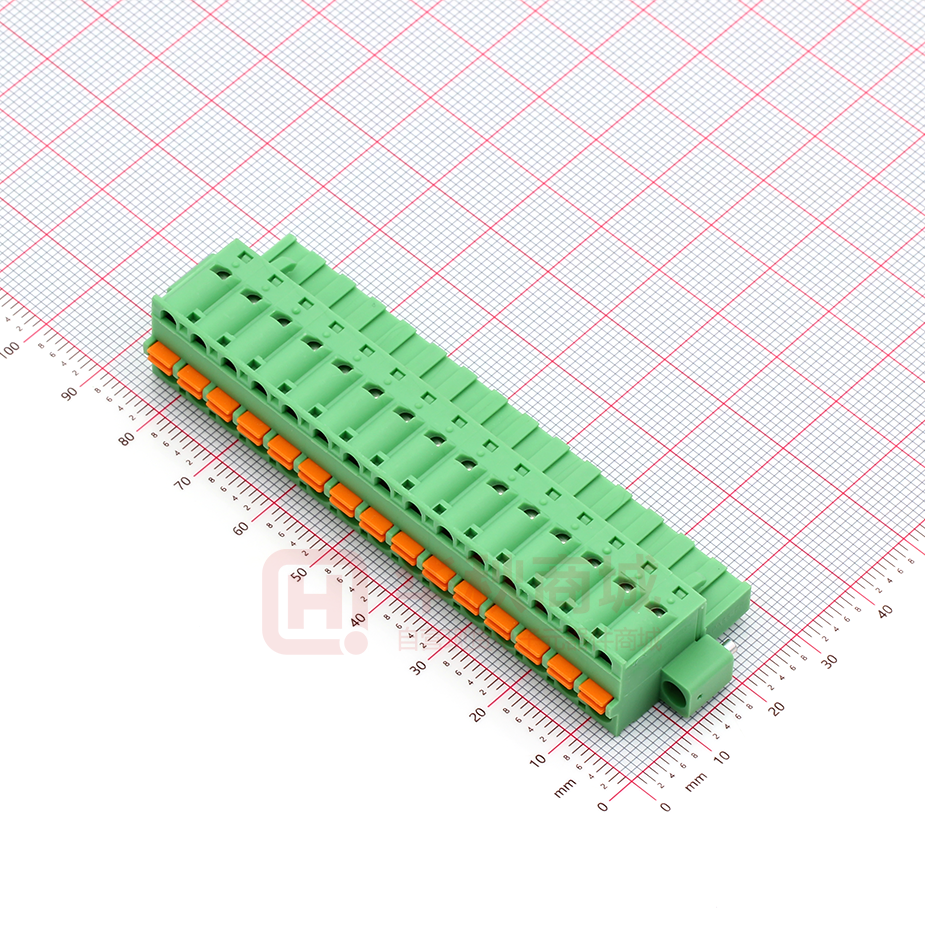

https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, Nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin The figure shows a 10-position version of the product Your advantages  Time saving push-in connection, tools not required  Intuitive use through colour coded actuation lever  Quick and convenient testing using integrated test option  Screwable flange for superior mechanical stability  Can be combined with the MSTB 2,5 range Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4017918142728 Weight per Piece (excluding packing) 27.340 g Custom tariff number 85366990 Country of origin Germany Technical data Item properties Brief article description PCB connector Plug-in system CLASSIC COMBICON Type of contact Female connector 01/09/2020   Page 1 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Technical data Item properties Range of articles FKC 2,5/..-STF Pitch 5.08 mm Number of positions 15 Connection method Push-in spring connection Locking Screw flange Number of levels 1 Number of connections 15 Number of potentials 15 Electrical parameters Nom. voltage 320 V Connection capacity Connection method Push-in spring connection pluggable Yes Conductor cross section solid 0.2 mm² ... 2.5 mm² Conductor cross section flexible 0.2 mm² ... 2.5 mm² Conductor cross section AWG / kcmil 24 ... 12 Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 2.5 mm² 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve 0.5 mm² ... 1.5 mm² Stripping length 10 mm Specifications for ferrules Recommended crimping pliers 1212034 CRIMPFOX 6 Ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Recommended crimping pliers 1212034 CRIMPFOX 6 Ferrules with insulating collar, according to DIN 46228‑4 Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 8 mm ... 10 mm Cross section: 2.5 mm²; Length: 10 mm Material data - contact 01/09/2020   Page 2 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Technical data Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (4 - 8 µm Sn) Metal surface contact area (top layer) Tin (4 - 8 µm Sn) Material data - housing Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Material data – actuating element Insulating material PBT CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Dimensions for the product Length [ l ] 25.73 mm Width [ w ] 86.3 mm Height [ h ] 15 mm Pitch 5.08 mm Dimension a 71.12 mm Packaging information Type of packaging packed in cardboard Pieces per package 50 Denomination packing units Pcs. Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Termination and connection method Test – repeated connection and release Test passed Test for conductor damage and slackening IEC 60999-1:1999-11 01/09/2020   Page 3 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Technical data Termination and connection method Test passed Pull-out test Pull-out test IEC 60999-1:1999-11 Test passed Conductor cross section / conductor type / tensile force 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 2.5 mm² / solid / > 50 N 2.5 mm² / flexible / > 50 N Mechanical tests according to standard Visual examination Test passed IEC 60512-1-1:2002-02 Dimensional test Test passed IEC 60512-1-2:2002-02 Resistance of marking Test passed IEC 60068-2-70:1995-12 Result Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 7N Withdraw strength per pos. approx. 7N Polarization and coding Test passed IEC 60512-13-5:2006-02 Result Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 26 N Air clearances and creepage distances Clearances and creepage distances IEC 60664-1:2007-04 Specification IEC 60664-1:2007-04 Rated insulation voltage (III/3) 320 V Rated insulation voltage (III/2) 320 V Rated insulation voltage (II/2) 630 V Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Minimum clearance - inhomogeneous field (III/3) 3 mm Minimum clearance - inhomogeneous field (III/2) 3 mm Minimum clearance - inhomogeneous field (II/2) 3 mm Minimum creepage distance value (III/3) 4 mm Minimum creepage distance value (III/2) 3 mm Minimum creepage distance value (II/2) 3.2 mm 01/09/2020   Page 4 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Technical data Current carrying capacity / derating curves Mechanical tests (A) Insertion strength per pos. approx. 7N Withdraw strength per pos. approx. 7N Polarization when inserted requirement >20 N Test passed Contact holder in insert requirements >20 N Test passed Durability tests (B) Specification IEC 60512-9-1:2010-03 Contact resistance R1 1.5 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 1.6 mΩ Impulse withstand voltage at sea level 4.8 kV Power-frequency withstand voltage 2.21 kV Insulation resistance, neighboring positions > 0.6 TΩ Climatic tests (D) Specification ISO 6988:1985-02 Cold stress -40 °C/2 h Thermal stress 100 °C/168 h Corrosive stress 0.2 dm SO2 on 300 dm /40 °C/1 cycle Impulse withstand voltage at sea level 4.8 kV Power-frequency withstand voltage 2.21 kV 3 3 Environmental and durability tests (E) Specification IEC 61984:2008-10 Result, degree of protection, IP code Finger safety with IP20 test finger Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 01/09/2020   Page 5 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440309 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 ETIM 6.0 EC002638 ETIM 7.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 UNSPSC 18.0 39121409 01/09/2020   Page 6 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Classifications UNSPSC UNSPSC 19.0 39121409 UNSPSC 20.0 39121409 UNSPSC 21.0 39121409 Approvals Approvals Approvals IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5 VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5 EAC      DE1-60988-B1B2  40004701  B.01742 01/09/2020   Page 7 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A mm²/AWG/kcmil 26-12 26-12  E60425-19931011 Accessories Accessories Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Strain relief 01/09/2020   Page 8 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Accessories Strain relief - STZ 4-FKC-5,08 - 1876877 Strain relief for snapping into the latching chambers of the plugs, 4-pos.     Strain relief - STZ 8-FKC-5,08 - 1876880 Strain relief for snapping into the latching chambers of the plug components, 8-pos.     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, color: gray     Reducing plug - RPS - 0201647 Reducing plug, color: gray     Additional products Feed-through header - MSTB 2,5/15-GF-5,08 - 1776634 PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, Nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, Pin layout: Linear pinning, solder pin [P]: 3.5 mm     01/09/2020   Page 9 / 10 https://www.phoenixcontact.com/us/products/1873333 Printed-circuit board connector - FKC 2,5/15-STF-5,08 - 1873333 Accessories Printed-circuit board connector - MSTBV 2,5/15-GF-5,08 - 1777206 PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, Nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, Pin layout: Linear pinning, solder pin [P]: 3.9 mm     Printed-circuit board connector - DFK-MSTBA 2,5/15-GF-5,08 - 1899113 Feed-through header, nominal current: 12 A, rated voltage (III/2): 320 V, Nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, Pin layout: Linear pinning, solder pin [P]: 3.2 mm     Printed-circuit board connector - DFK-MSTBVA 2,5/15-GF-5,08 - 1899414 Feed-through header, nominal current: 12 A, rated voltage (III/2): 320 V, Nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, Pin layout: Linear pinning, solder pin [P]: 3.9 mm     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 01/09/2020   Page 10 / 10
