Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 10, Pitch: 2.5 mm,
Connection method: Push-in spring connection, Color: green, Contact surface: Tin

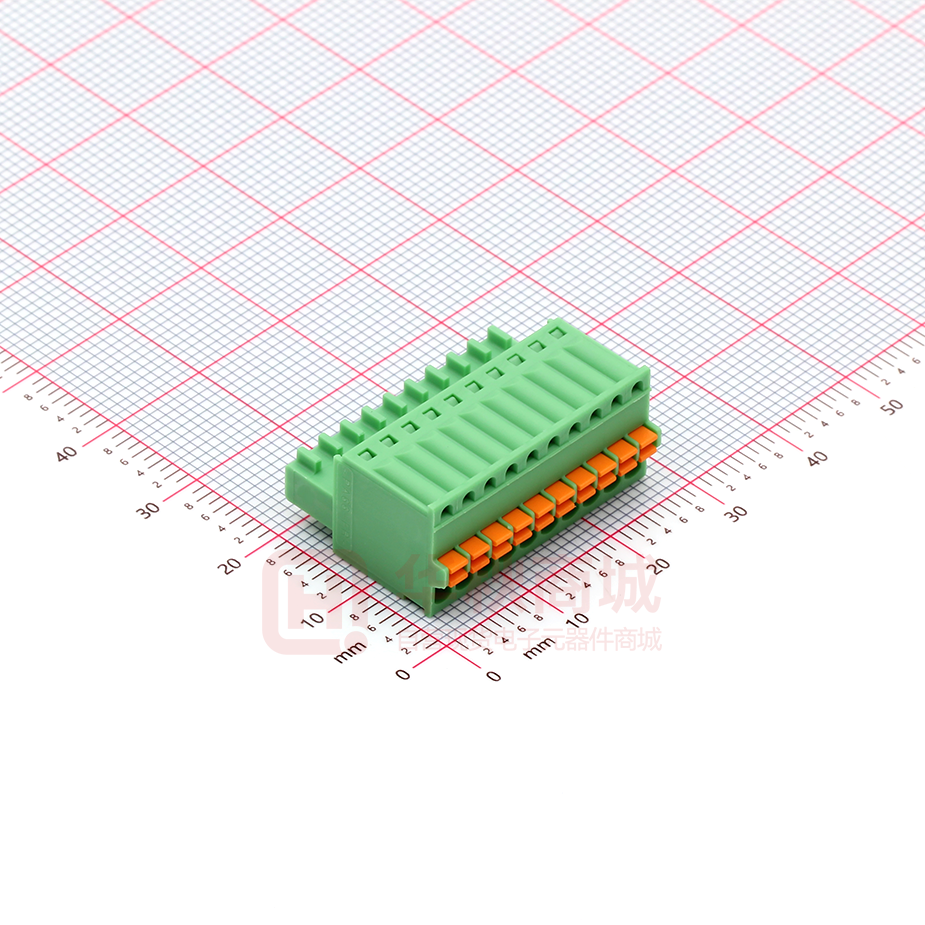

The figure shows a 10-position
version of the product
Product Features
■
■
■
■
■
Possible combinations with MC 0,5 and MCD 0,5 base strips with 2.5 mm pitch
User-friendly actuation of the terminal point using a screwdriver
Fast conductor connection thanks to Push-in spring-cage connection
Test connection for accommodating 1 mm Ø test plug
Individual position coding by removing the coding tab and connecting the coding profile to the header
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
50 pc
Weight per Piece (excluding packing)
6.22 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
19.05 mm
Height
11.75 mm
Width
25.6 mm
Pitch
2.50 mm
Dimension a
22.5 mm
General
04/18/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1881406
Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
Technical data
General
Range of articles
FK-MC 0,5/..-ST
Insulating material group
I
Rated surge voltage (III/3)
1.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
100 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
4A
Nominal cross section
0.5 mm²
Maximum load current
4 A (with 0.5 mm² conductor cross section)
Insulating material
PA
Flammability rating according to UL 94
V0
Stripping length
8 mm
Number of positions
10
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
0.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
0.5 mm²
Conductor cross section AWG min.
26
Conductor cross section AWG max.
20
Minimum AWG according to UL/CUL
28
Maximum AWG according to UL/CUL
20
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
272607xx
04/18/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1881406
Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
Classifications
eCl@ss
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / CCA / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
04/18/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1881406
Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
Approvals
UL Recognized
B
mm²/AWG/kcmil
28-20
Nominal current IN
4A
Nominal voltage UN
125 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
0.2-0.5
Nominal current IN
4A
Nominal voltage UN
100 V
cUL Recognized
B
mm²/AWG/kcmil
28-20
Nominal current IN
4A
Nominal voltage UN
125 V
IECEE CB Scheme
mm²/AWG/kcmil
0.2-0.5
Nominal current IN
4A
Nominal voltage UN
100 V
CCA
mm²/AWG/kcmil
0.2-0.5
Nominal current IN
4A
Nominal voltage UN
100 V
04/18/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1881406
Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
Approvals
EAC
EAC
cULus Recognized
Drawings
Diagram
8
Current strength [A]
Current strength [A]
Diagram
6
4
= 2-pos.
= 5-pos.
= 10-pos.
2
0
8
6
4
= 0,14 mm²
= 0,2 mm²
= 0,34 mm²
2
0
0
20
40
60
80
100
0
20
40
Type: FK-MC 0,5/...-ST-2,5 with MC 0,5/...-G-2,5
20
#
40
60
"
80
100
Ambient temperature [°C]
Type: FK-MC 0,5/...-ST-2,5 with MCV 0,5/...-G-2,5 THT
Current strength [A]
Current strength [A]
0
100
Diagram
!
! = 2-pos.
" = 5-pos.
# = 12-pos.
80
Type: FK-MC 0,5/...-ST-2,5 with MC 0,5/...-G-2,5
Diagram
8
7
6
5
4
3
2
1
0
60
Ambient temperature [°C]
Ambient temperature [°C]
8
7
6
5
4
3
2
1
0
!
! = 2-pos.
" = 5-pos.
# = 12-pos.
0
20
#
40
60
"
80
100
Ambient temperature [°C]
Type: FK-MC 0,5/...-ST-2,5 with MC 0,5/...-G-2,5 THT
04/18/2016 Page 5 / 6
https://www.phoenixcontact.com/us/products/1881406
Printed-circuit board connector - FK-MC 0,5/10-ST-2,5 - 1881406
8
7
6
5
4
3
2
1
0
Diagram
!
! = 2-pos.
" = 5-pos.
# = 12-pos.
0
Current strength [A]
Current strength [A]
Diagram
# "
20
40
60
80
100
8
7
6
5
4
3
2
1
0
!
! = 2-pos.
" = 5-pos.
# = 12-pos.
0
20
# "
40
Ambient temperature [°C]
Type: FK-MC 0,5/...-ST-2,5 with MCD 0,5/...-G1-2,5
Type: FK-MC 0,5/...-ST-2,5 with MCDV 0,5/...-G1-2,5
Dimensional drawing
19,2
= 2-pos.
= 5-pos.
= 12-pos.
0
10
20
100
a+3,1
11,75
Current strength [A]
80
Ambient temperature [°C]
Diagram
8
7
6
5
4
3
2
1
0
60
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
5,8
1,55
2,5
a
Type: FK-MC 0,5/...-ST-2,5 with MCV 0,5/...-G-2,5
