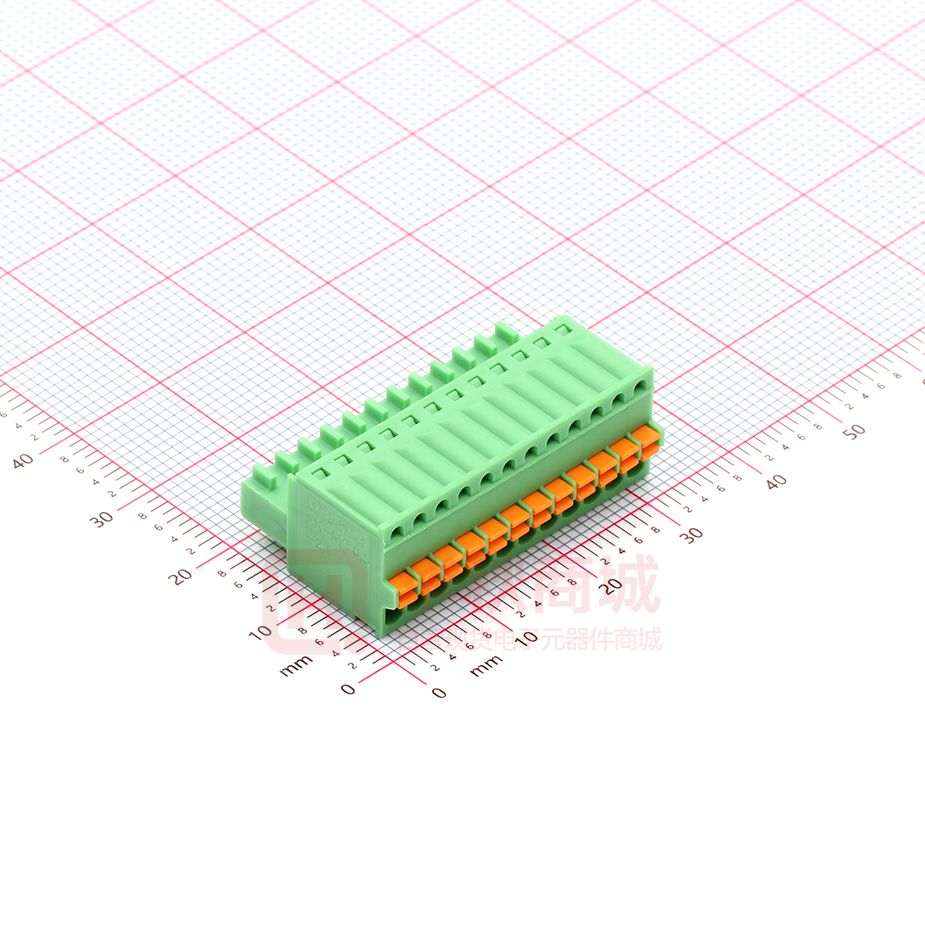

FK-MC 0,5/12-ST-2,5
Order No.: 1881422
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881422
Plug component, Nominal current: 4 A, Nom. voltage: 100 V, Pitch:
2.5 mm, Number of positions: 12, Connection type: Spring-cage conn.,
Color: green
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918156671
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.00742 KG
Catalog page information
Page 136 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
2.5 mm
Dimension a
27.5 mm
Number of positions
12
