Extract from the online
catalog
MC 0,5/ 6-G-2,5
Order No.: 1881480

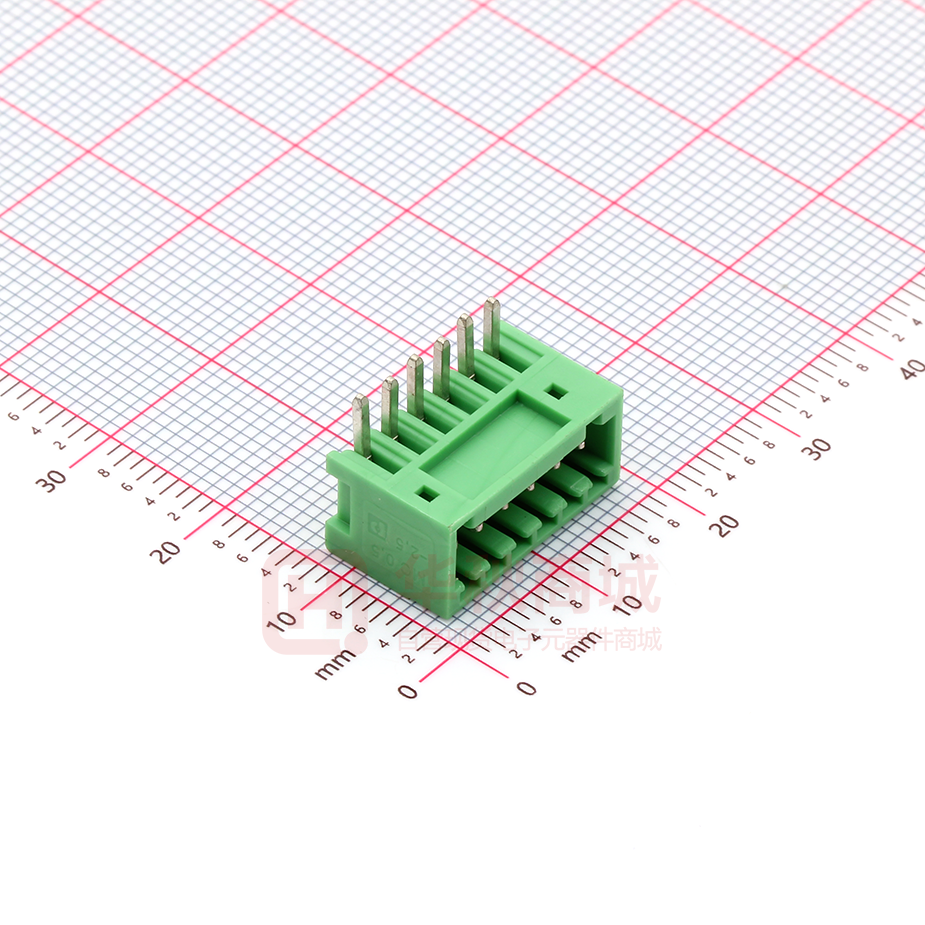

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881480
Header, Nominal current: 4 A, Nom. voltage: 80 V, Pitch: 2.5 mm,
Number of positions: 6, Color: green, Assembly: Soldering
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918156725
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.001596 KG
Catalog page information
Page 140 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
10.1 mm
Height
8.1 mm
Pitch
2.5 mm
Dimension a
12.5 mm
Number of positions
6
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Mar 11, 2010
MC 0,5/ 6-G-2,5 Order No.: 1881480
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881480
Pin dimensions
0,8 x 0,8 mm
Hole diameter
1.2 mm
Technical data
Insulating material group
I
Rated surge voltage (III/3)
1.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
4A
Nominal voltage UN
80 V
Maximum load current
4A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Certificates / Approvals
Certification
CB, CUL, GOST, UL, VDE-PZI
CUL
Nominal voltage UN
125 V
Nominal current IN
4A
UL
Nominal voltage UN
125 V
Nominal current IN
4A
Accessories
Item
Designation
Description
SK 2,54/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
Marking
0804853
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Mar 11, 2010
MC 0,5/ 6-G-2,5 Order No.: 1881480
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881480
Plug/Adapter
1881435
CP-MC 0,5
Keying profile, is inserted into the groove in the header, red
insulating material
Additional products
Item
Designation
Description
FK-MC 0,5/ 6-ST-2,5
Plug component, Nominal current: 4 A, Nom. voltage: 100 V,
Pitch: 2.5 mm, Number of positions: 6, Connection type: Springcage conn., Color: green
General
1881367
Diagrams/Drawings
Drilling plan/solder pad geometry
Diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Mar 11, 2010
MC 0,5/ 6-G-2,5 Order No.: 1881480
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881480
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Mar 11, 2010
MC 0,5/ 6-G-2,5 Order No.: 1881480
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881480
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2010 Phoenix Contact
Technical modifications reserved;
