Base strip - MC 0.5/ 9-G-2.5 - 1881516
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 2.5 mm,
Color: green, Contact surface: Tin, Assembly: Soldering

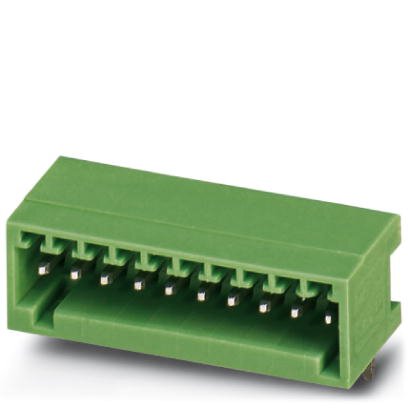

The figure shows a 10-position
version of the product
Why buy this product
Low-profile pin strips with a compact MICRO pitch of 2.5 mm
Plug-in direction parallel and vertical to the PCB
Individual position keying by inserting keying profiles
Key commercial data
Packing unit
1
Minimum order quantity
50
Catalog page
Page 172 (CC-2011)
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
Dimensions / positions
Length
10.1 mm
Height
8.1 mm
Pitch
2.5 mm
Dimension a
20 mm
Number of positions
9
Pin dimensions
0,8 x 0,8 mm
Hole diameter
1.2 mm
Technical data
Range of articles
MC 0,5/..-G
Insulating material group
I
Rated surge voltage (III/3)
1.5 kV
03.10.2012 Page 1 / 5
https://www.phoenixcontact.com/us/produkte/1881516
Base strip - MC 0.5/ 9-G-2.5 - 1881516
Technical data
Technical data
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
4A
Nominal voltage UN
80 V
Maximum load current
4A
Insulating material
PA
Inflammability class according to UL 94
V0
Color
green
Nominal voltage, UL/CUL Use Group B
125 V
Nominal current, UL/CUL Use Group B
4A
Classifications
eclass
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
unspsc
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized
03.10.2012 Page 2 / 5
https://www.phoenixcontact.com/us/produkte/1881516
Base strip - MC 0.5/ 9-G-2.5 - 1881516
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
B
Nominal current IN
4A
Nominal voltage UN
125 V
VDE report with production monitoring
Nominal current IN
4A
Nominal voltage UN
80 V
cUL Recognized
B
Nominal current IN
4A
Nominal voltage UN
125 V
GOST
IECEE CB Scheme
Nominal current IN
4A
Nominal voltage UN
80 V
GOST
03.10.2012 Page 3 / 5
https://www.phoenixcontact.com/us/produkte/1881516
Base strip - MC 0.5/ 9-G-2.5 - 1881516
Approvals
cULus Recognized
Accessories
Accessories
Marking
Marker cards - SK 2,54/2,8:FORTL.ZAHLEN - 0804853
Marker cards, Card, white, Labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99,
Mounting type: Adhesive, For terminal block width: 2.54 mm
Plug/Adapter
Coding profile - CP-MC 0,5 - 1881435
Keying profile, is inserted into the groove in the header, red insulating material
Additional products
Printed-circuit board connector - FK-MC 0,5/ 9-ST-2,5 - 1881396
Plug component, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 2.5 mm,
Connection method: Spring-cage conn., Color: green, Contact surface: Tin
Drawings
03.10.2012 Page 4 / 5
https://www.phoenixcontact.com/us/produkte/1881516
Base strip - MC 0.5/ 9-G-2.5 - 1881516
Drilling diagram
Diagram
2,5
8,9
1,2
2,2
Current carrying capacity [A]
a
8
6
1
4
2
1 = 2-pos.
2 = 5-pos.
3 = 12-pos.
2
0
0
20
3
40
60
80
100
Ambient temperature [°C]
Type: FK-MC 0,5/...-ST-2,5 with MC 0,5/...-G-2,5
Dimensioned drawing
8
23,5
6
2
1 = 0,14 mm²
2 = 0,2 mm²
3 = 0,34 mm²
0
0
20
1
40
60
3,8
2
8,1
4
a+4,4
10,1
3
11,75
Current carrying capacity [A]
Diagram
80
100
Ambient temperature [°C]
1,2
2,2
2,5
a
Type: FK-MC 0,5/...-ST-2,5 with MC 0,5/...-G-2,5
