1881561

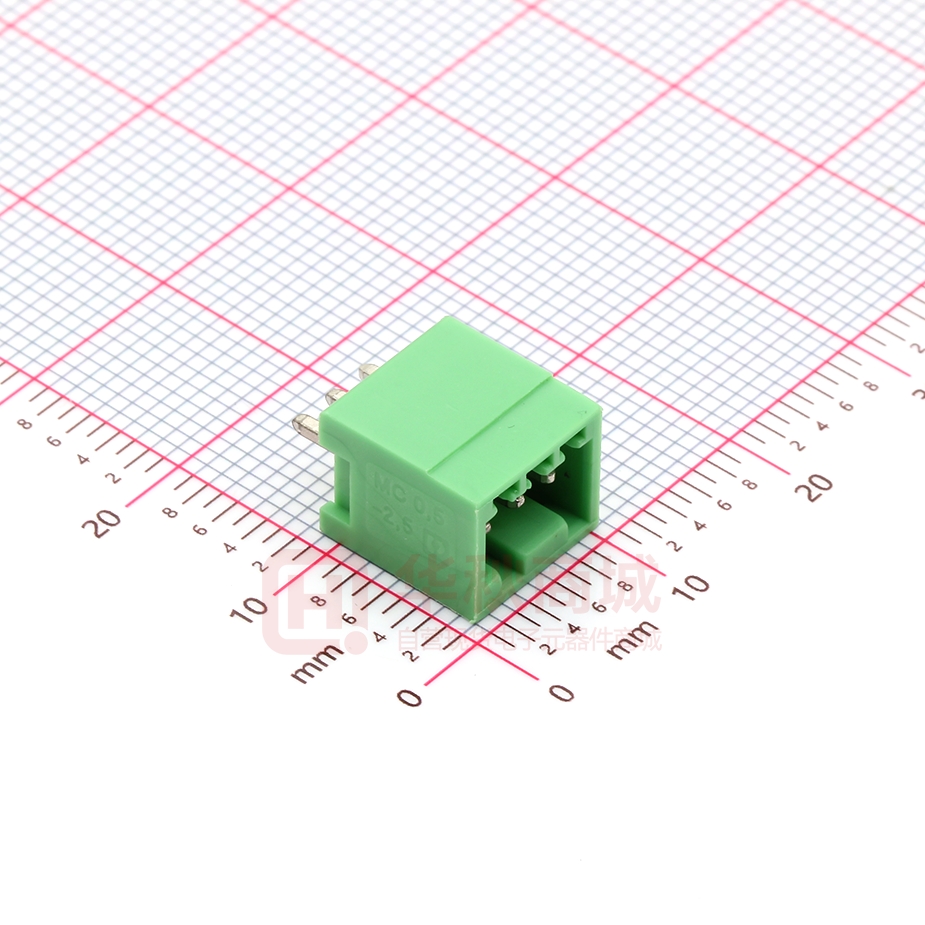

https://www.phoenixcontact.com/us/products/1881561 Base strip - MCV 0,5/ 3-G-2,5 - 1881561 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 4 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 2.5 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Product Features ■ ■ ■ Low-profile pin strips with a compact MICRO pitch of 2.5 mm Plug-in direction parallel and vertical to the PCB Individual position coding by inserting coding profiles Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc Weight per Piece (excluding packing) 0.86 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 8.1 mm Pitch 2.50 mm Dimension a 5 mm Width 9.4 mm Constructional height 10.1 mm Height 13.6 mm Length of the solder pin 3.5 mm Pin dimensions 0,8 x 0,8 mm 03/07/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1881561 Base strip - MCV 0,5/ 3-G-2,5 - 1881561 Technical data Dimensions Hole diameter 1.2 mm General Range of articles MCV 0,5/..-G Insulating material group I Rated surge voltage (III/3) 1.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 80 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 4A Maximum load current 4A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 3 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 03/07/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1881561 Base strip - MCV 0,5/ 3-G-2,5 - 1881561 Classifications ETIM ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / CCA / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details UL Recognized    B Nominal current IN 4A Nominal voltage UN 125 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 4A Nominal voltage UN 80 V 03/07/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1881561 Base strip - MCV 0,5/ 3-G-2,5 - 1881561 Approvals cUL Recognized    B Nominal current IN 4A Nominal voltage UN 125 V IECEE CB Scheme      Nominal current IN 4A Nominal voltage UN 80 V CCA      Nominal current IN 4A Nominal voltage UN 80 V EAC  cULus Recognized  Drawings Diagram a 2,5 1,2 3,9 2,2 Current strength [A] Drilling diagram 8 7 6 5 4 3 2 1 0 = 2-pos. = 5-pos. = 12-pos. 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: FK-MC 0,5/...-ST-2,5 with MCV 0,5/...-G-2,5 03/07/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1881561 Base strip - MCV 0,5/ 3-G-2,5 - 1881561 Dimensional drawing 11,75 3,5 10,1 23,5 a+4,4 3,9 8,1 2,2 2,5 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/07/2016   Page 5 / 5
