1881655

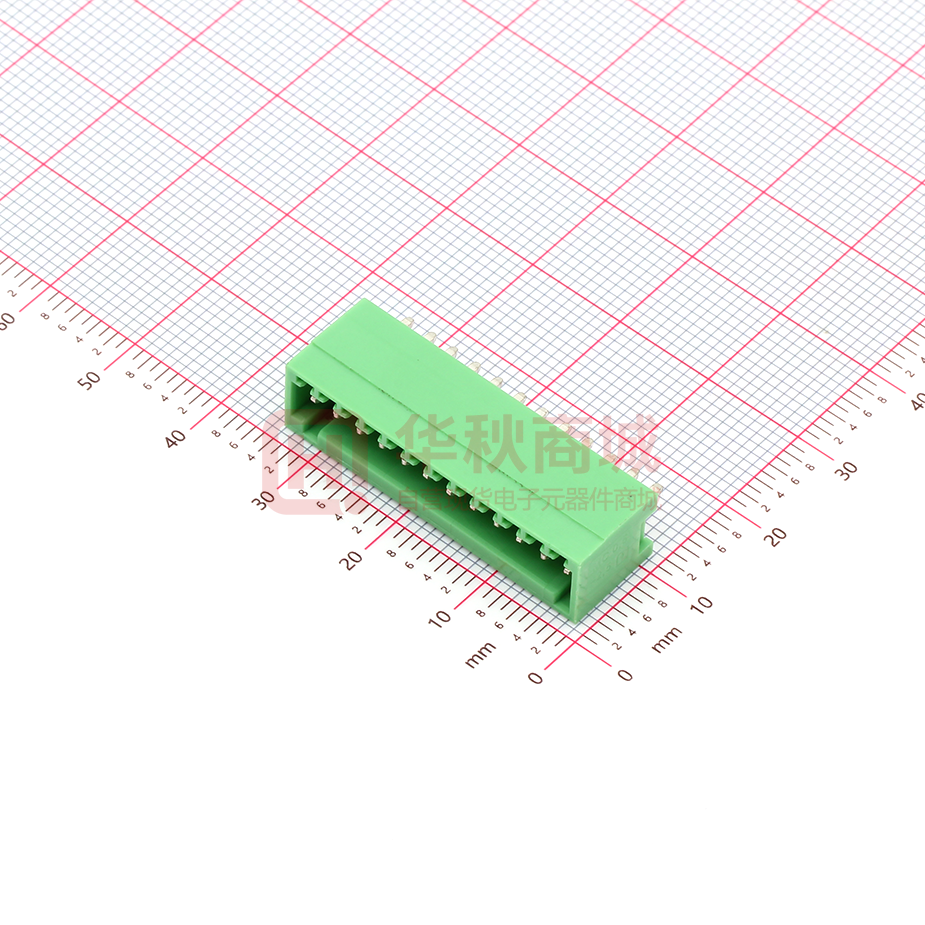

Extract from the online catalog     MCV 0,5/12-G-2,5 Order No.: 1881655 The figure shows a 10-position version of the product http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881655   Header, Nominal current: 4 A, Nom. voltage: 80 V, Pitch: 2.5 mm, Number of positions: 12, Color: green, Assembly: Soldering   Product notes WEEE/RoHS-compliant since: 01/01/2003 Commercial data EAN 4017918156893 Pack 50 pcs. Customs tariff 85366990 Weight/Piece 0.00256 KG Catalog page information Page 141 (CC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Length 8.1 mm Pitch 2.5 mm Dimension a 27.5 mm Number of positions 12 Pin dimensions 0,8 x 0,8 mm PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 4 Mar 11, 2010 MCV 0,5/12-G-2,5 Order No.: 1881655 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881655 Hole diameter 1.2 mm Technical data Insulating material group I Rated surge voltage (III/3) 1.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 4A Nominal voltage UN 80 V Maximum load current 4A Insulating material PA Inflammability class acc. to UL 94 V0 Certificates / Approvals Certification CB, CUL, GOST, UL, VDE-PZI CUL Nominal voltage UN 125 V Nominal current IN 4A UL Nominal voltage UN 125 V Nominal current IN 4A Accessories Item Designation Description SK 2,54/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section marker strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100, sufficient for 140 terminal blocks Marking 0804853 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 4 Mar 11, 2010 MCV 0,5/12-G-2,5 Order No.: 1881655 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881655 Plug/Adapter 1881435 CP-MC 0,5 Keying profile, is inserted into the groove in the header, red insulating material Additional products Item Designation Description FK-MC 0,5/12-ST-2,5 Plug component, Nominal current: 4 A, Nom. voltage: 100 V, Pitch: 2.5 mm, Number of positions: 12, Connection type: Springcage conn., Color: green General 1881422 Diagrams/Drawings Drilling plan/solder pad geometry Dimensioned drawing PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 4 Mar 11, 2010 MCV 0,5/12-G-2,5 Order No.: 1881655 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1881655 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 4 Mar 11, 2010
