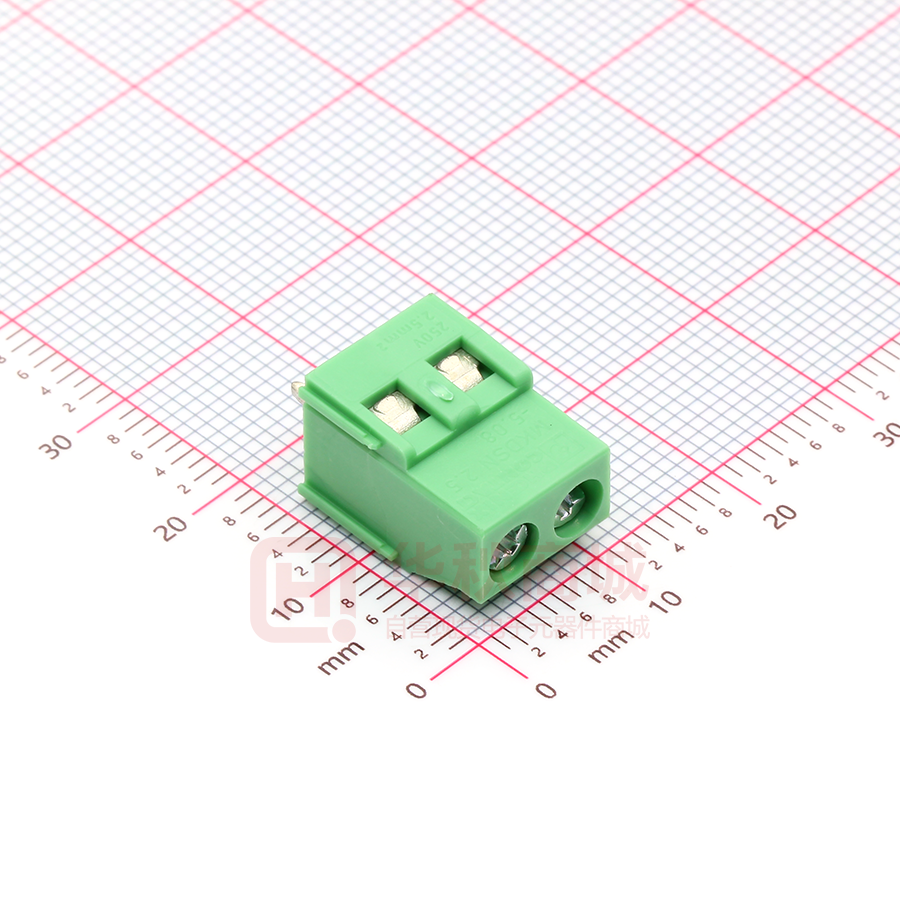

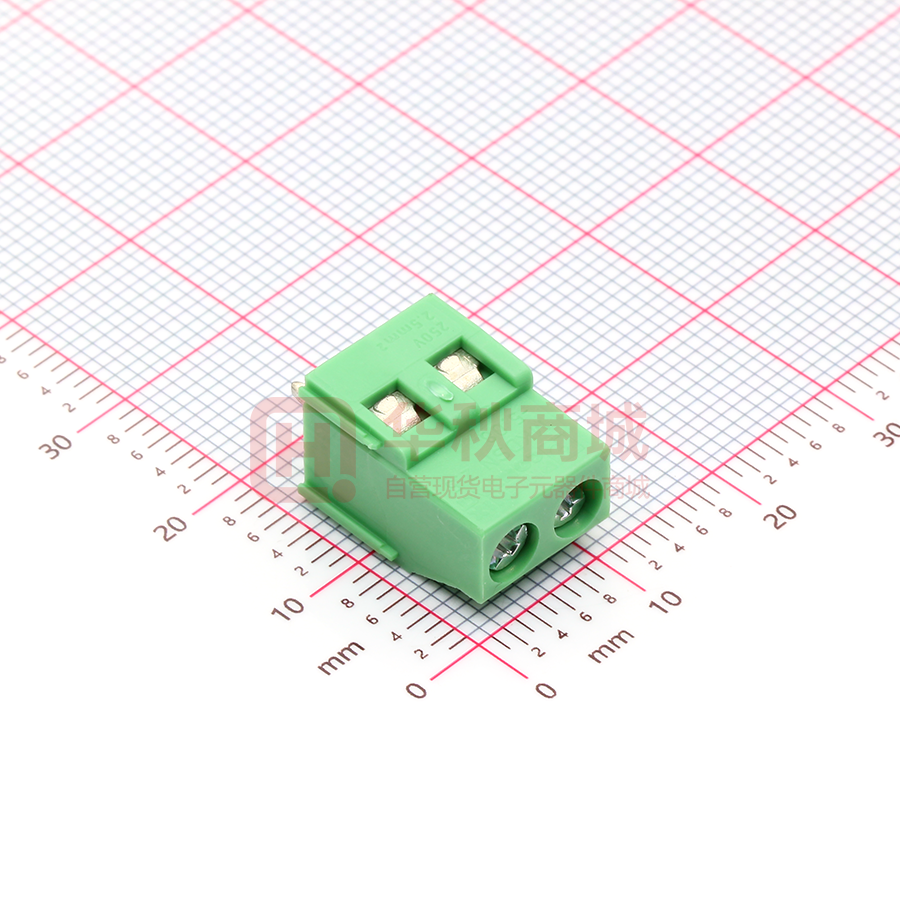

https://www.phoenixcontact.com/us/products/1888687 PCB terminal block - MKDSN 2,5/ 2-5,08 - 1888687 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 16 A, Nom. voltage: 400 V, Pitch: 5.08 mm, Number of positions: 2, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Product Features ■ ■ ■ ■ ■ ■ Well-known connection principle allows worldwide use Low temperature rise, thanks to maximum contact force Allows connection of two conductors Extremely small design for the respective conductor cross section Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve The latch on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 3.3 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 9.5 mm Pitch 5.08 mm Dimension a 5.08 mm Width 10.16 mm Constructional height 15 mm Height 18.5 mm Length of the solder pin 3.5 mm 03/08/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1888687 PCB terminal block - MKDSN 2,5/ 2-5,08 - 1888687 Technical data Dimensions Pin dimensions 0,8 x 0,9 mm Hole diameter 1.3 mm General Range of articles MKDSN 2,5 Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 400 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 16 A Nominal cross section 2.5 mm² Maximum load current 16 A (with a 2.5 mm² conductor cross section) Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Internal cylindrical gage A3 Stripping length 6.5 mm Number of positions 2 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 2 conductors with same cross section, solid min. 0.2 mm² 03/08/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1888687 PCB terminal block - MKDSN 2,5/ 2-5,08 - 1888687 Technical data Connection data 2 conductors with same cross section, solid max. 0.75 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 0.75 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.75 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 03/08/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1888687 PCB terminal block - MKDSN 2,5/ 2-5,08 - 1888687 Approvals Approvals Approvals UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details UL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 20 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 24 A Nominal voltage UN 250 V cUL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 20 A 10 A Nominal voltage UN 300 V 300 V EAC  03/08/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1888687 PCB terminal block - MKDSN 2,5/ 2-5,08 - 1888687 Approvals cULus Recognized  Drawings Drilling diagram a Dimensional drawing 9,5 2,54 a+5,08 3,5 4,75 15 5,08 1,3 4,75 2,54 5,08 a Diagram Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/08/2016   Page 5 / 5
