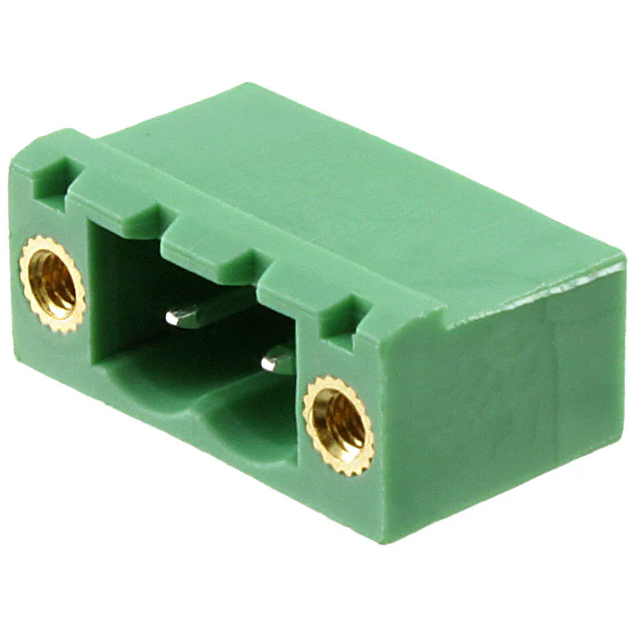

PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user documentation. Our General Terms of Use for Downloads are valid. PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTB 2,5 HC/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5 HC, Pin connector pattern alignment: Standard, locking: Screw locking, mounting: Threaded flange, type of packaging: packed in cardboard Your advantages • Well-known mounting principle allows worldwide use • Screwable flange for superior mechanical stability • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies Commercial Data Item number 1924088 Packing unit 1 pc Minimum order quantity 50 pc Sales Key A02 Product Key AACSHA Catalog Page Page 497 (C-1-2013) GTIN 4017918600051 Weight per Piece (including packing) 2.144 g Weight per Piece (excluding packing) 1.916 g Customs tariff number 85366930 Country of origin DE Aug 30, 2022, 7:11 AM Page 1 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Technical Data Product properties Type Standard Product line COMBICON Connectors M Product type PCB headers Number of positions 2 Pitch 5.08 mm Number of connections 2 Number of rows 1 Mounting flange Threaded flange Number of potentials 2 Pin layout Linear pinning Solder pins per potential 1 Electrical properties Nominal current IN 16 A (see derating curve) Nominal voltage UN 320 V Pollution degree 3 Contact resistance 1 mΩ Rated voltage (III/3) 320 V Rated surge voltage (III/3) 4 kV Rated voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Mounting Mounting type Wave soldering Pin layout Linear pinning Flange Tightening torque 0.3 Nm Flange Tightening torque 0.3 Nm Screw Sheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST 2,2x6,5 C Material specifications Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics Tin-plated Metal surface contact area (top layer) Tin (3 - 5 µm Sn) Aug 30, 2022, 7:11 AM Page 2 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Metal surface contact area (middle layer) Nickel (1.3 - 3 µm Ni) Metal surface soldering area (top layer) Tin (3 - 5 µm Sn) Metal surface soldering area (middle layer) Nickel (1.3 - 3 µm Ni) Material data - housing Housing color green (6021) Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-213 775 Temperature for the ball pressure test according to EN 6069510-2 125 °C Notes Notes on operation In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Dimensions Dimensional drawing Pitch 5.08 mm Width [w] 25.4 mm Height [h] 12.1 mm Length [l] 12 mm Installed height 8.6 mm Solder pin length [P] 3.5 mm Mechanical tests Test for conductor damage and slackening Specification IEC 60999-1:1999-11 Result Test passed Repeated connection and disconnection Specification IEC 60999-1:1999-11 Result Test passed Pull-out test Specification IEC 60999-1:1999-11 0.2 mm² / solid / > 10 N Aug 30, 2022, 7:11 AM Page 3 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / flexible / > 10 N 2.5 mm² / solid / > 50 N 2.5 mm² / flexible / > 50 N Insertion and withdrawal forces Result Test passed No. of cycles 50 Insertion strength per pos. approx. 6N Withdraw strength per pos. approx. 5N Contact holder in insert Specification IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N Test passed Resistance of inscriptions Specification IEC 60068-2-70:1995-12 Result Test passed Polarization and coding Specification IEC 60512-13-5:2006-02 Result Test passed Visual inspection Specification IEC 60512-1-1:2002-02 Result Test passed Dimension check Specification IEC 60512-1-2:2002-02 Result Test passed Electrical tests Thermal test | Test group C Specification IEC 60512-5-1:2002-02 Tested number of positions 12 Insulation resistance Specification IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions > 5 MΩ Temperature cycles Specification IEC 60999-1:1999-11 Result Test passed Air clearances and creepage distances | Specification IEC 60664-1:2007-04 Insulating material group I Comparative tracking index (IEC 60112) CTI 600 Aug 30, 2022, 7:11 AM Page 4 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Rated insulation voltage (III/3) 320 V Rated surge voltage (III/3) 4 kV minimum clearance value - non-homogenous field (III/3) 3 mm minimum creepage distance (III/3) 4 mm Rated insulation voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV minimum clearance value - non-homogenous field (III/2) 3 mm minimum creepage distance (III/2) 3 mm Rated insulation voltage (II/2) 630 V Rated surge voltage (II/2) 4 kV minimum clearance value - non-homogenous field (II/2) 3 mm minimum creepage distance (II/2) 3.2 mm Environmental and real-life conditions Vibration test Specification IEC 60068-2-6:2007-12 Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Sweep speed 5g (60.1 - 150 Hz) Test duration per axis 2.5 h Durability test Specification IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level 4.8 kV Contact resistance R1 1 mΩ Contact resistance R2 1 mΩ Insertion/withdrawal cycles 50 Climatic test Specification ISO 6988:1985-02 Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle Thermal stress 100 °C/168 h Power-frequency withstand voltage 2.21 kV Shocks Specification IEC 60068-2-27:2008-02 Pulse shape Semi-sinusoidal Acceleration 30g Shock duration 18 ms Test directions X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Aug 30, 2022, 7:11 AM Page 5 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 100 °C Packaging specifications Type of packaging packed in cardboard Aug 30, 2022, 7:11 AM Page 6 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Drawings Operating current [A] Diagram 32 24 16 = 2-pos. = 5-pos. = 12-pos. 8 0 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Current strength [A] Type: FKC 2,5 HC/...-STF-5,08 with MSTB 2,5/...-GF-5,08 32 30 28 26 24 22 20 18 16 14 12 10 8 6 4 2 0 Diagram = 2-pos. = 5-pos. = 12-pos. 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: MSTB 2,5 HC/...-STF-5,08 with MSTB 2,5 HC/...-GF-5,08 Aug 30, 2022, 7:11 AM Page 7 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Approvals IECEE CB Scheme   Approval ID: DE1-60988-B1B2 Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 250 V 16 A - - Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 300 V 16 A - - 300 V 10 A - - Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 250 V 16 A - - EAC Approval ID: B.01687  cULus Recognized Approval ID: E60425-19931011 Use group B Use group D  VDE Zeichengenehmigung Approval ID: 40050079 Aug 30, 2022, 7:11 AM Page 8 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Classifications ECLASS ECLASS-9.0 27440402 ECLASS-10.0.1 27440402 ECLASS-11.0 27460201 ETIM ETIM 8.0 EC002637 UNSPSC UNSPSC 21.0 39121400 Aug 30, 2022, 7:11 AM Page 9 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Aug 30, 2022, 7:11 AM Page 10 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Accessories Accessories Accessories - MSTB-BL - 1755477 https://www.phoenixcontact.com/us/products/1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material Marker card Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 https://www.phoenixcontact.com/us/products/0804293 Marker card, white, labeled, horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm Aug 30, 2022, 7:11 AM Page 11 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 Coding section Coding section - CR-MSTB - 1734401 https://www.phoenixcontact.com/us/products/1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material PCB connector PCB connector - MSTB 2,5 HC/ 2-STF-5,08 - 1912184 https://www.phoenixcontact.com/us/products/1912184 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTB 2,5 HC/. .-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 7:11 AM Page 12 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 PCB connector PCB connector - MVSTBR 2,5 HC/ 2-STF-5,08 - 1912621 https://www.phoenixcontact.com/us/products/1912621 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MVSTBR 2,5 HC/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard PCB connector PCB connector - MVSTBW 2,5 HC/ 2-STF-5,08 - 1913060 https://www.phoenixcontact.com/us/products/1913060 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MVSTBW 2,5 HC/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 7:11 AM Page 13 (14) PCB header - MSTB 2,5 HC/ 2-GF-5,08 1924088 https://www.phoenixcontact.com/us/products/1924088 PCB connector PCB connector - FKC 2,5 HC/ 2-STF-5,08 - 1942484 https://www.phoenixcontact.com/us/products/1942484 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKC 2,5 HC/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Phoenix Contact 2022 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Aug 30, 2022, 7:11 AM Page 14 (14)
