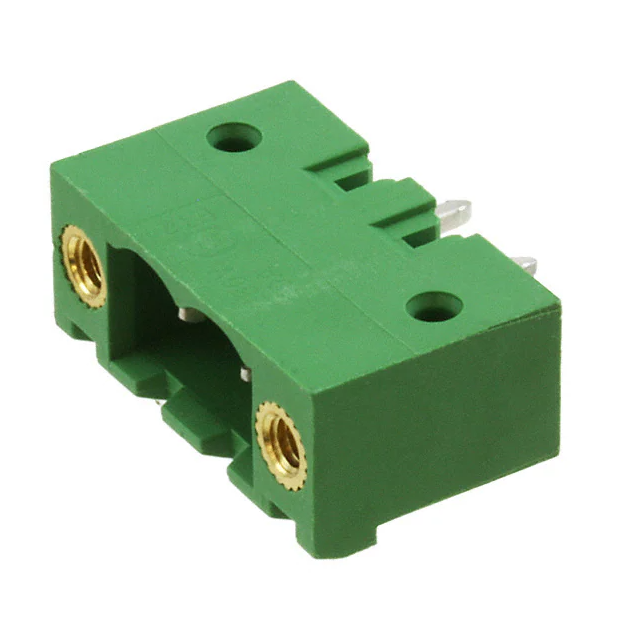

PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user
documentation. Our General Terms of Use for Downloads are valid.
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating
curve), rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number
of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product
range: MSTBV 2,5 HC/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear
pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system:
COMBICON MSTB 2,5 HC, Pin connector pattern alignment: Standard, locking: Screw locking,
mounting: Threaded flange, type of packaging: packed in cardboard
Your advantages
• Well-known mounting principle allows worldwide use
• Screwable flange for superior mechanical stability
• Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Commercial Data
Item number
1924525
Packing unit
1 pc
Minimum order quantity
50 pc
Sales Key
A02
Product Key
AACSMA
Catalog Page
Page 497 (C-1-2013)
GTIN
4017918613839
Weight per Piece (including packing)
2.192 g
Weight per Piece (excluding packing)
1.926 g
Customs tariff number
85366930
Country of origin
DE
Aug 30, 2022, 7:16 AM
Page 1 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Technical Data
Product properties
Type
Standard
Product line
COMBICON Connectors M
Product type
PCB headers
Number of positions
2
Pitch
5.08 mm
Number of connections
2
Number of rows
1
Mounting flange
Threaded flange
Number of potentials
2
Pin layout
Linear pinning
Solder pins per potential
1
Electrical properties
Nominal current IN
16 A (see derating curve)
Nominal voltage UN
320 V
Pollution degree
3
Contact resistance
0.9 mΩ
Rated voltage (III/3)
320 V
Rated surge voltage (III/3)
4 kV
Rated voltage (III/2)
320 V
Rated surge voltage (III/2)
4 kV
Mounting
Mounting type
Wave soldering
Pin layout
Linear pinning
Flange
Tightening torque
0.3 Nm
Flange
Tightening torque
0.3 Nm
Screw
Sheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST
2,2x6,5 C
Material specifications
Material data - contact
Note
WEEE/RoHS-compliant, free of whiskers according to IEC
60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Surface characteristics
Tin-plated
Metal surface contact area (top layer)
Tin (3 - 5 µm Sn)
Aug 30, 2022, 7:16 AM
Page 2 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Metal surface contact area (middle layer)
Nickel (1.3 - 3 µm Ni)
Metal surface soldering area (top layer)
Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)
Nickel (1.3 - 3 µm Ni)
Material data - housing
Housing color
green (6021)
Insulating material
PA
Insulating material group
I
CTI according to IEC 60112
600
Flammability rating according to UL 94
V0
Glow wire flammability index GWFI according to EN 60695-2-12
850
Glow wire ignition temperature GWIT according to EN 60695-213
775
Temperature for the ball pressure test according to EN 6069510-2
125 °C
Notes
Notes on operation
In accordance with IEC 61984, COMBICON connectors have no
switching power (COC). During designated use, they must not be
plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawing
Pitch
5.08 mm
Width [w]
25.4 mm
Height [h]
12 mm
Length [l]
8.6 mm
Installed height
12 mm
Solder pin length [P]
3.9 mm
PCB design
Pin spacing
5.00 mm
Mechanical tests
Test for conductor damage and slackening
Specification
IEC 60999-1:1999-11
Result
Test passed
Repeated connection and disconnection
Specification
IEC 60999-1:1999-11
Result
Test passed
Aug 30, 2022, 7:16 AM
Page 3 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Pull-out test
Specification
IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force
setpoint/actual value
0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / solid / > 50 N
2.5 mm² / flexible / > 50 N
Insertion and withdrawal forces
Result
Test passed
No. of cycles
50
Insertion strength per pos. approx.
7N
Withdraw strength per pos. approx.
5N
Contact holder in insert
Specification
IEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N
Test passed
Resistance of inscriptions
Specification
IEC 60068-2-70:1995-12
Result
Test passed
Polarization and coding
Specification
IEC 60512-13-5:2006-02
Result
Test passed
Visual inspection
Specification
IEC 60512-1-1:2002-02
Result
Test passed
Dimension check
Specification
IEC 60512-1-2:2002-02
Result
Test passed
Electrical tests
Thermal test | Test group C
Specification
IEC 60512-5-1:2002-02
Tested number of positions
12
Insulation resistance
Specification
IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions
> 5 MΩ
Air clearances and creepage distances |
Specification
IEC 60664-1:2007-04
Insulating material group
I
Comparative tracking index (IEC 60112)
CTI 600
Aug 30, 2022, 7:16 AM
Page 4 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Rated insulation voltage (III/3)
320 V
Rated surge voltage (III/3)
4 kV
minimum clearance value - non-homogenous field (III/3)
3 mm
minimum creepage distance (III/3)
4 mm
Rated insulation voltage (III/2)
320 V
Rated surge voltage (III/2)
4 kV
minimum clearance value - non-homogenous field (III/2)
3 mm
minimum creepage distance (III/2)
3 mm
Rated insulation voltage (II/2)
630 V
Rated surge voltage (II/2)
4 kV
minimum clearance value - non-homogenous field (II/2)
3 mm
minimum creepage distance (II/2)
3.2 mm
Environmental and real-life conditions
Vibration test
Specification
IEC 60068-2-6:2007-12
Frequency
10 - 150 - 10 Hz
Sweep speed
1 octave/min
Amplitude
0.35 mm (10 - 60.1 Hz)
Sweep speed
5g (60.1 - 150 Hz)
Test duration per axis
2.5 h
Durability test
Specification
IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level
4.8 kV
Contact resistance R1
0.9 mΩ
Contact resistance R2
0.9 mΩ
Insertion/withdrawal cycles
50
Insulation resistance, neighboring positions
> 5 MΩ
Climatic test
Specification
ISO 6988:1985-02
Corrosive stress
0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress
105 °C/168 h
Power-frequency withstand voltage
2.21 kV
Ambient conditions
Ambient temperature (operation)
-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Relative humidity (storage/transport)
30 % ... 70 %
Ambient temperature (assembly)
-5 °C ... 100 °C
Packaging specifications
Type of packaging
packed in cardboard
Aug 30, 2022, 7:16 AM
Page 5 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Drawings
I [A]
Diagram
32
28
24
20
16
12
8
4
0
1
1
2
3
0
2
= 2-pos.
= 5-pos.
= 12-pos.
10
20
3
30
40
50
60
70
80
90 100 110
[°C]
Type: MSTB 2,5 HC/...-STF-5,08 with MSTBV 2,5/...-GF-5,08
I [A]
Diagram
32
28
24
20
16
12
8
4
0
1
1
2
3
0
2
= 2-pos.
= 5-pos.
= 12-pos.
10
20
3
30
40
50
60
70
80
90 100 110
[°C]
Type: FKC 2,5 HC/...-STF-5,08 with MSTBV 2,5 HC/...-GF-5,08
Aug 30, 2022, 7:16 AM
Page 6 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Approvals
IECEE CB Scheme
Approval ID: DE1-60988-B1B2
Nominal Voltage UN
Nominal Current IN
Cross Section AWG
Cross Section mm2
250 V
16 A
-
-
Nominal Voltage UN
Nominal Current IN
Cross Section AWG
Cross Section mm2
300 V
16 A
-
-
300 V
10 A
-
-
Nominal Voltage UN
Nominal Current IN
Cross Section AWG
Cross Section mm2
250 V
16 A
-
-
EAC
Approval ID: B.01687
cULus Recognized
Approval ID: E60425-19931011
Use group B
Use group D
VDE Zeichengenehmigung
Approval ID: 40050079
Aug 30, 2022, 7:16 AM
Page 7 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Classifications
ECLASS
ECLASS-9.0
27440402
ECLASS-10.0.1
27440402
ECLASS-11.0
27460201
ETIM
ETIM 8.0
EC002637
UNSPSC
UNSPSC 21.0
39121400
Aug 30, 2022, 7:16 AM
Page 8 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Aug 30, 2022, 7:16 AM
Page 9 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Accessories
Coding section
Coding section - CR-MSTB - 1734401
https://www.phoenixcontact.com/us/products/1734401
Coding section, inserted into the recess in the header or the inverted plug, red
insulating material
Marker card
Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
https://www.phoenixcontact.com/us/products/0804293
Marker card, white, labeled, horizontal: consecutive numbers 1 ... 10, 11 ... 20,
etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08
mm, lettering field size: 5.08 x 3.8 mm
Aug 30, 2022, 7:16 AM
Page 10 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
Accessories
Accessories - MSTB-BL - 1755477
https://www.phoenixcontact.com/us/products/1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
PCB connector
PCB connector - MSTB 2,5 HC/ 2-STF-5,08 - 1912184
https://www.phoenixcontact.com/us/products/1912184
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current:
16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type
of contact: Female connector, number of potentials: 2, number of rows: 1,
number of positions: 2, number of connections: 2, product range: MSTB 2,5 HC/.
.-STF, pitch: 5.08 mm, connection method: Screw connection with tension
sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °,
locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5 HC,
locking: Screw locking, mounting: Screw flange, type of packaging: packed in
cardboard
Aug 30, 2022, 7:16 AM
Page 11 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
PCB connector
PCB connector - MVSTBR 2,5 HC/ 2-STF-5,08 - 1912621
https://www.phoenixcontact.com/us/products/1912621
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current:
16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type
of contact: Female connector, number of potentials: 2, number of rows: 1,
number of positions: 2, number of connections: 2, product range: MVSTBR 2,5
HC/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension
sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 °,
locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking:
Screw locking, mounting: Screw flange, type of packaging: packed in cardboard
PCB connector
PCB connector - MVSTBW 2,5 HC/ 2-STF-5,08 - 1913060
https://www.phoenixcontact.com/us/products/1913060
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current:
16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, type
of contact: Female connector, number of potentials: 2, number of rows: 1,
number of positions: 2, number of connections: 2, product range: MVSTBW 2,5
HC/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension
sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °,
locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5 HC, locking:
Screw locking, mounting: Screw flange, type of packaging: packed in cardboard
Aug 30, 2022, 7:16 AM
Page 12 (13)
PCB header - MSTBV 2,5 HC/ 2-GF-5,08
1924525
https://www.phoenixcontact.com/us/products/1924525
PCB connector
PCB connector - FKC 2,5 HC/ 2-STF-5,08 - 1942484
https://www.phoenixcontact.com/us/products/1942484
PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current:
16 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 2, number of rows: 1, number of positions: 2,
number of connections: 2, product range: FKC 2,5 HC/..-STF, pitch: 5.08 mm,
connection method: Push-in spring connection, conductor/PCB connection
direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5
HC, locking: Screw locking, mounting: Screw flange, type of packaging: packed
in cardboard
Phoenix Contact 2022 © - all rights reserved
https://www.phoenixcontact.com
Phoenix Contact USA
586 Fulling Mill Road
Middletown, PA 17057, United States
(+717) 944-1300
info@phoenixcon.com
Aug 30, 2022, 7:16 AM
Page 13 (13)
