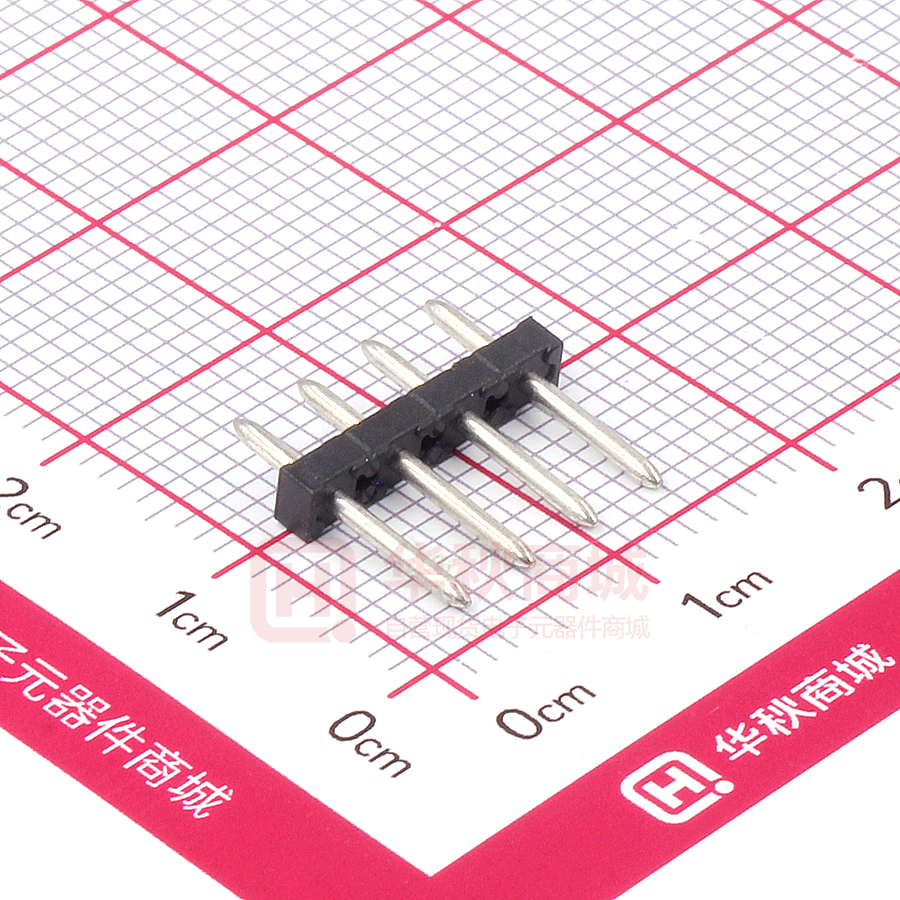

Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user
documentation. Our General Terms of Use for Downloads are valid.
Pin strip, nominal cross section: 0.5 mm2, color: black, nominal current: 8 A (depends on the plug
used), rated voltage (III/2): 250 V, contact surface: Tin, type of contact: Male connector, number
of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product
range: PST 1,0/..-V, pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder
pin [P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting: without, type
of packaging: packed in cardboard, The maximum current depends on the plug used. The lower
of the two current values apply for plug and pin strip. The pin strip is made of highly temperature
resistant plastic and is thus suitable for the reflow process.
Your advantages
• Suitable for wave and reflow soldering processes
• Optimum pin geometry for all COMBICON pin strip connectors
Commercial Data
Item number
1945119
Packing unit
1 pc
Minimum order quantity
250 pc
Sales Key
A03
Product Key
AABTKA
Catalog Page
Page 432 (C-1-2013)
GTIN
4017918883287
Weight per Piece (including packing)
0.43 g
Weight per Piece (excluding packing)
0.426 g
Customs tariff number
85366930
Country of origin
DE
Aug 30, 2022, 7:55 AM
Page 1 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Technical Data
Product properties
Type
Pin strip
Product line
COMBICON Connectors S
Product type
Pin strip
Number of positions
4
Pitch
3.5 mm
Number of connections
4
Number of rows
1
Mounting flange
without
Number of potentials
4
Pin layout
Linear pinning
Electrical properties
Nominal current IN
8 A (depends on the plug used)
Nominal voltage UN
250 V
Pollution degree
3
Contact resistance
1.8 mΩ
Rated voltage (III/3)
160 V
Rated surge voltage (III/3)
2.5 kV
Rated voltage (III/2)
250 V
Rated surge voltage (III/2)
2.5 kV
Mounting
Mounting type
THR soldering
Pin layout
Linear pinning
Material specifications
Material data - contact
Note
WEEE/RoHS-compliant, free of whiskers according to IEC
60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Surface characteristics
Tin-plated
Metal surface contact area (top layer)
Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)
Nickel (1 - 3 µm Ni)
Metal surface soldering area (top layer)
Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)
Nickel (1 - 3 µm Ni)
Material data - housing
Housing color
black (9005)
Insulating material
PA
Insulating material group
IIIa
CTI according to IEC 60112
250
Aug 30, 2022, 7:55 AM
Page 2 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Flammability rating according to UL 94
V0
Glow wire flammability index GWFI according to EN 60695-2-12
850
Glow wire ignition temperature GWIT according to EN 60695-213
775
Temperature for the ball pressure test according to EN 6069510-2
125 °C
Dimensions
Dimensional drawing
Pitch
3.5 mm
Width [w]
13.6 mm
Height [h]
13 mm
Length [l]
2.8 mm
Installed height
9.2 mm
Solder pin length [P]
3.8 mm
Mechanical tests
Test for conductor damage and slackening
Specification
IEC 60999-1:1999-11
Result
Test passed
Repeated connection and disconnection
Specification
IEC 60999-1:1999-11
Result
Test passed
Pull-out test
Specification
IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force
setpoint/actual value
0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
Result
Test passed
No. of cycles
10
Insertion strength per pos. approx.
6N
Withdraw strength per pos. approx.
5N
Contact holder in insert
Specification
IEC 60512-8:1993-01
Contact holder in insert
Requirements >20 N
Test passed
Aug 30, 2022, 7:55 AM
Page 3 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Resistance of inscriptions
Specification
IEC 60068-2-70:1995-12
Result
Test passed
Visual inspection
Specification
IEC 60512-1-1:2002-02
Result
Test passed
Dimension check
Specification
IEC 60512-1-2:2002-02
Result
Test passed
Electrical tests
Thermal test | Test group C
Specification
IEC 60512-5-1:2002-02
Tested number of positions
16
Insulation resistance
Specification
IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions
1012 Ω
Temperature cycles
Specification
IEC 60999-1:1999-11
Result
Test passed
Air clearances and creepage distances |
Specification
IEC 60664-1:2007-04
Insulating material group
IIIa
Comparative tracking index (IEC 60112)
CTI 250
Rated insulation voltage (III/3)
160 V
Rated surge voltage (III/3)
2.5 kV
minimum clearance value - non-homogenous field (III/3)
1.5 mm
minimum creepage distance (III/3)
2.5 mm
Rated insulation voltage (III/2)
250 V
Rated surge voltage (III/2)
2.5 kV
minimum clearance value - non-homogenous field (III/2)
1.5 mm
minimum creepage distance (III/2)
2.5 mm
Rated insulation voltage (II/2)
250 V
Rated surge voltage (II/2)
2.5 kV
minimum clearance value - non-homogenous field (II/2)
1.5 mm
minimum creepage distance (II/2)
2.5 mm
Environmental and real-life conditions
Vibration test
Specification
IEC 60068-2-6:1995-03
Aug 30, 2022, 7:55 AM
Page 4 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Frequency
10 - 150 - 10 Hz
Sweep speed
1 octave/min
Amplitude
0.35 mm (10 - 60.1 Hz)
Sweep speed
5g (60.1 - 150 Hz)
Test duration per axis
2.5 h
Durability test
Specification
IEC 60512-5:1992-08
Impulse withstand voltage at sea level
2.95 kV
Contact resistance R1
1.8 mΩ
Contact resistance R2
1.9 mΩ
Insertion/withdrawal cycles
10
Climatic test
Specification
ISO 6988:1985-02
Corrosive stress
0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress
100 °C/168 h
Power-frequency withstand voltage
1.39 kV
Ambient conditions
Ambient temperature (operation)
-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Relative humidity (storage/transport)
30 % ... 70 %
Ambient temperature (assembly)
-5 °C ... 100 °C
Packaging specifications
Type of packaging
packed in cardboard
Aug 30, 2022, 7:55 AM
Page 5 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Drawings
Current carrying capacity [A]
Diagram
16
14
12
10
8
2
6
4
2
0
0
1 = 2-pos.
2 = 5-pos.
3 = 16-pos.
20
1
3
40
60
80
100
Ambient temperature [°C]
Type: PT 1,5/...-PVH-3,5 with PST 1,0/...-3,5
Current carrying capacity [A]
Diagram
16
14
12
10
8
2
6
4
2
0
0
1 = 2-pos.
2 = 5-pos.
3 = 16-pos.
20
1
3
40
60
80
100
Ambient temperature [°C]
Type: PT 1,5/...-PH-3,5 with PST 1,0/...-3,5
Aug 30, 2022, 7:55 AM
Page 6 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Current carrying capacity [A]
Diagram
16
12
1
8
4
0
0
1 = 2-pos.
2 = 5-pos.
3 = 16-pos.
20
3
2
40
60
80
100
Ambient temperature [°C]
Derating curve for: PTDA 1,5/..-PH-3,5 with PST 1,0/..-3,5
Aug 30, 2022, 7:55 AM
Page 7 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Approvals
EAC
Approval ID: B.01687
cULus Recognized
Approval ID: E60425-20030211
Nominal Voltage UN
Nominal Current IN
Cross Section AWG
Cross Section mm2
300 V
10 A
-
-
Use group B
Aug 30, 2022, 7:55 AM
Page 8 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Classifications
ECLASS
ECLASS-9.0
27440402
ECLASS-10.0.1
27440402
ECLASS-11.0
27460201
ETIM
ETIM 8.0
EC002637
UNSPSC
UNSPSC 21.0
39121400
Aug 30, 2022, 7:55 AM
Page 9 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Aug 30, 2022, 7:55 AM
Page 10 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
Accessories
PCB connector
PCB connector - PTDA 1,5/ 4-PH-3,5 - 1725133
https://www.phoenixcontact.com/us/products/1725133
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 240 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 4, number of rows: 1, number of positions: 4,
number of connections: 8, product range: PTDA 1,5/..-PH, pitch: 3.5 mm,
connection method: Push-in spring connection, conductor/PCB connection
direction: 45 °, pin layout: Linear double pinning, plug-in system: COMBICON
PST 1,0, locking: without, mounting: without, type of packaging: packed in
cardboard
PCB connector
PCB connector - PTDA 1,5/ 2-PH-3,5 - 1725107
https://www.phoenixcontact.com/us/products/1725107
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 240 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 2, number of rows: 1, number of positions: 2,
number of connections: 4, product range: PTDA 1,5/..-PH, pitch: 3.5 mm,
connection method: Push-in spring connection, conductor/PCB connection
direction: 45 °, pin layout: Linear double pinning, plug-in system: COMBICON
PST 1,0, locking: without, mounting: without, type of packaging: packed in
cardboard
Aug 30, 2022, 7:55 AM
Page 11 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
PCB connector
PCB connector - FK-MPT 0,5/ 4-ST-3,5 - 1913947
https://www.phoenixcontact.com/us/products/1913947
PCB connector, nominal cross section: 0.5 mm2, color: green, nominal current: 4
A, rated voltage (III/2): 250 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 4, number of rows: 1, number of positions: 4,
number of connections: 8, product range: FK-MPT 0,5/..-ST, pitch: 3.5 mm,
connection method: Push-in spring connection, conductor/PCB connection
direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard
PCB connector
PCB connector - FK-MPT 0,5/ 2-ST-3,5 - 1913921
https://www.phoenixcontact.com/us/products/1913921
PCB connector, nominal cross section: 0.5 mm2, color: green, nominal current: 4
A, rated voltage (III/2): 250 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 2, number of rows: 1, number of positions: 2,
number of connections: 4, product range: FK-MPT 0,5/..-ST, pitch: 3.5 mm,
connection method: Push-in spring connection, conductor/PCB connection
direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard
Aug 30, 2022, 7:55 AM
Page 12 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
PCB connector
PCB connector - PT 1,5/ 4-PVH-3,5 - 1984031
https://www.phoenixcontact.com/us/products/1984031
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 200 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 4, number of rows: 1, number of positions: 4,
number of connections: 4, product range: PT 1,5/..-PVH, pitch: 3.5 mm,
connection method: Screw connection with wire protector, conductor/PCB
connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without,
mounting: without, type of packaging: packed in cardboard
PCB connector
PCB connector - PT 1,5/ 2-PVH-3,5 - 1984015
https://www.phoenixcontact.com/us/products/1984015
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 200 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 2, number of rows: 1, number of positions: 2,
number of connections: 2, product range: PT 1,5/..-PVH, pitch: 3.5 mm,
connection method: Screw connection with wire protector, conductor/PCB
connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without,
mounting: without, type of packaging: packed in cardboard
Aug 30, 2022, 7:55 AM
Page 13 (14)
Pin strip - PST 1,0/ 4-3,5
1945119
https://www.phoenixcontact.com/us/products/1945119
PCB connector
PCB connector - PT 1,5/ 4-PH-3,5 - 1984332
https://www.phoenixcontact.com/us/products/1984332
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 200 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 4, number of rows: 1, number of positions: 4,
number of connections: 4, product range: PT 1,5/..-PH, pitch: 3.5 mm,
connection method: Screw connection with wire protector, conductor/PCB
connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without,
mounting: without, type of packaging: packed in cardboard
PCB connector
PCB connector - PT 1,5/ 2-PH-3,5 - 1984316
https://www.phoenixcontact.com/us/products/1984316
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8
A, rated voltage (III/2): 200 V, contact surface: Tin, type of contact: Female
connector, number of potentials: 2, number of rows: 1, number of positions: 2,
number of connections: 2, product range: PT 1,5/..-PH, pitch: 3.5 mm,
connection method: Screw connection with wire protector, screw head form: H1L
Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, plugin system: COMBICON PST 1,0, locking: without, mounting: without, type of
packaging: packed in cardboard
Phoenix Contact 2022 © - all rights reserved
https://www.phoenixcontact.com
Phoenix Contact USA
586 Fulling Mill Road
Middletown, PA 17057, United States
(+717) 944-1300
info@phoenixcon.com
Aug 30, 2022, 7:55 AM
Page 14 (14)
