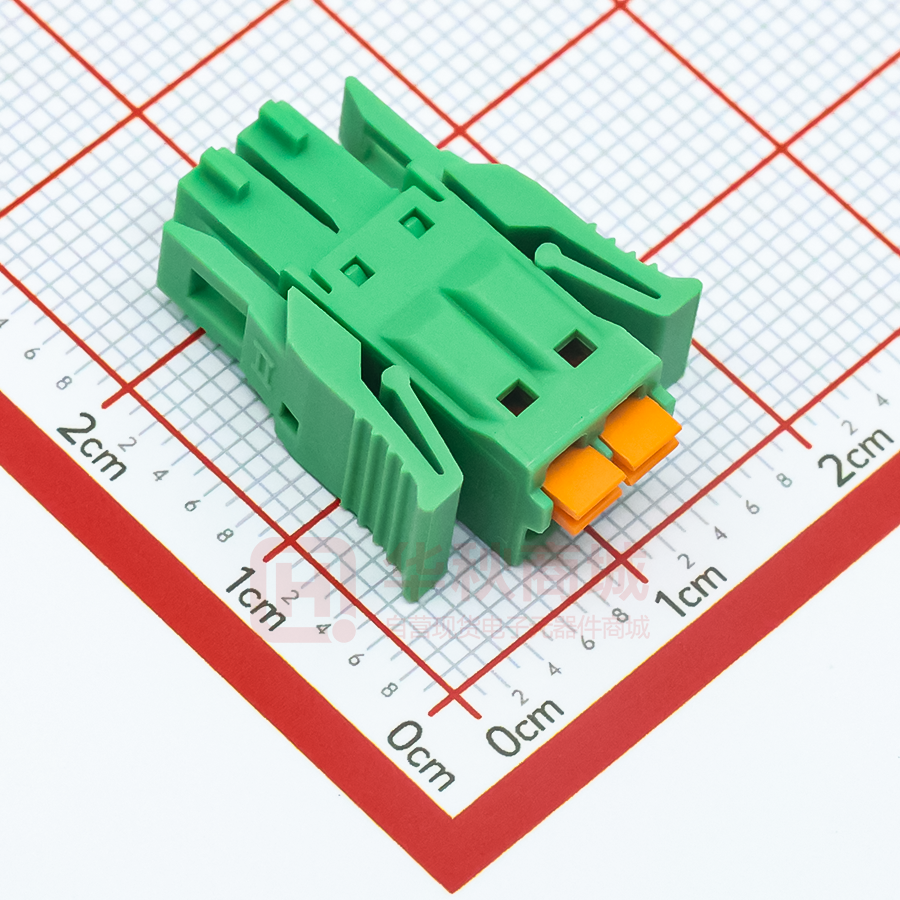

https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal current: 8 A, number of positions: 2, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin The figure shows a 10-position version of the product Your advantages  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Intuitive use through colour coded actuation lever  Operation and conductor connection from one direction enable integration into front of device  Intuitive locking mechanism prevents accidental disconnection Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918942663 Weight per Piece (excluding packing) 1.880 g Custom tariff number 85366990 Country of origin Germany Technical data Item properties Brief article description Printed-circuit board connector Plug-in system MINI COMBICON Type of contact Female connector Range of articles FMC 1,5/..-ST-RF 08/26/2019   Page 1 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Technical data Item properties Pitch 3.5 mm Number of positions 2 Connection method Push-in spring connection Locking Self-locking flange Number of levels 1 Number of connections 2 Number of potentials 2 Electrical parameters Rated current 8A Connection capacity Conductor cross section solid 0.2 mm² ... 1.5 mm² Conductor cross section flexible 0.2 mm² ... 1.5 mm² Conductor cross section AWG / kcmil 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 1.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 0.75 mm² Stripping length 10 mm Specifications for ferrules Recommended crimping pliers 1212034 CRIMPFOX 6 Ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.25 mm²; Length: 7 mm Cross section: 0.34 mm²; Length: 7 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 10 mm Recommended crimping pliers 1212034 CRIMPFOX 6 Ferrules with insulating collar, according to DIN 46228‑4 Cross section: 0.14 mm²; Length: 8 mm Cross section: 0.25 mm²; Length: 8 mm ... 10 mm Cross section: 0.34 mm²; Length: 8 mm ... 10 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 10 mm Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (4 - 8 µm Sn) 08/26/2019   Page 2 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Technical data Material data - contact Metal surface contact area (top layer) Tin (4 - 8 µm Sn) Material data - housing Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Material data – actuating element Insulating material PBT CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Dimensions for the product Length [ l ] 22.9 mm Width [ w ] 17.1 mm Height [ h ] 7.8 mm Pitch 3.5 mm Height (without solder pin) 7.8 mm Dimension a 3.5 mm Packaging information Type of packaging packed in cardboard Pieces per package 250 Denomination packing units Pcs. General product information Type of note Notes on operation Note In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Type of note Notes on operation Note In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C 08/26/2019   Page 3 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Technical data Ambient conditions Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Termination and connection method Conductor connection test The stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force. Test result Test passed Test – repeated connection and release IEC 60999-1:1999-11 Test passed Test for conductor damage and slackening IEC 60999-1:1999-11 Test passed Pull-out test Pull-out test IEC 60999-1:1999-11 Test passed Conductor cross section / conductor type / tensile force 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 1.5 mm² / solid / > 40 N 1.5 mm² / flexible / > 40 N Mechanical tests according to standard Visual examination Test passed IEC 60512-1-1:2002-02 Dimensional test Test passed IEC 60512-1-2:2002-02 Resistance of marking Test passed IEC 60068-2-70:1995-12 Result Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 5N Withdraw strength per pos. approx. 4N Polarization and coding Test passed IEC 60512-13-5:2006-02 Air clearances and creepage distances Rated insulation voltage (III/3) 160 V Minimum clearance - inhomogeneous field (III/3) 1.5 mm Minimum clearance - inhomogeneous field (III/2) 1.5 mm Minimum clearance - inhomogeneous field (II/2) 1.5 mm Minimum creepage distance value (III/3) 2 mm Minimum creepage distance value (III/2) 1.5 mm Minimum creepage distance value (II/2) 1.6 mm Electrical tests - Function 08/26/2019   Page 4 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Technical data Electrical tests - Function Specification IEC 60999-1:1999-11 Temperature cycles Specification IEC 60999-1:1999-11 Test current (minimum cross section) 5 A AC Test current (maximum cross section) 8 A AC Temperature cycles 192 Current carrying capacity / derating curves Mechanical tests (A) Insertion strength per pos. approx. 5N Withdraw strength per pos. approx. 4N Polarization when inserted requirement >20 N Test passed Durability tests (B) Specification IEC 60512-9-1:2010-03 Contact resistance R1 2.7 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 2.8 mΩ Impulse withstand voltage at sea level 2.95 kV Power-frequency withstand voltage 1.39 kV Insulation resistance, neighboring positions > 4 TΩ Climatic tests (D) Specification ISO 6988:1985-02 Cold stress -40 °C/2 h Thermal stress 100 °C/168 h Corrosive stress 0.2 dm SO2 on 300 dm /40 °C/1 cycle Impulse withstand voltage at sea level 2.95 kV Power-frequency withstand voltage 1.39 kV 3 3 Environmental and durability tests (E) Specification IEC 61984:2008-10 Result, degree of protection, IP code Finger safety with IP20 test finger Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values 08/26/2019   Page 5 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440309 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 ETIM 6.0 EC002638 ETIM 7.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details 08/26/2019   Page 6 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Approvals  IECEE CB Scheme   http://www.iecee.org/     Nominal voltage UN 160 V Nominal current IN 8A mm²/AWG/kcmil 0.2-1.5  VDE Gutachten mit Fertigungsüberwachung   DE1-60987-B1B2  http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 160 V Nominal current IN 8A mm²/AWG/kcmil 0.2-1.5  40011723 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19920306   B C Nominal voltage UN 150 V 50 V Nominal current IN 8A 8A mm²/AWG/kcmil 24-16 24-16 Accessories Accessories Cable end sleeve Ferrule - A 0,25- 5 - 3202465 Ferrule, length: 5 mm, color: silver     08/26/2019   Page 7 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Accessories Ferrule - A 0,25- 7 - 3202478 Ferrule, length: 7 mm, color: silver     Ferrule - A 0,34- 7 - 3009202 Ferrule, length: 7 mm, color: silver     Ferrule - A 0,5 - 8 - 3202481 Ferrule, length: 8 mm, color: silver     Ferrule - A 0,5 -10 - 3202494 Ferrule, length: 10 mm, color: silver     Ferrule - A 0,75- 8 - 3202504 Ferrule, length: 8 mm, color: silver     08/26/2019   Page 8 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Accessories Ferrule - A 0,75-10 - 3200234 Ferrule, length: 10 mm, color: silver     Ferrule - A 1 - 8 - 3202517 Ferrule, length: 8 mm, color: silver     Ferrule - A 1 -10 - 3200250 Ferrule, length: 10 mm, color: silver     Ferrule - A 1,5 -10 - 3200276 Ferrule, length: 10 mm, color: silver     Ferrule - AI 0,14- 8 GY -1000 - 3203011 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: gray     08/26/2019   Page 9 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Accessories Ferrule - AI 0,34- 8 TQ - 3203066 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: turquoise     Ferrule - AI 0,34-10 TQ - 3241129 Ferrule, sleeve length: 10 mm, length: 14.5 mm, color: turquoise     Ferrule - AI 0,5 - 8 WH - 3200014 Ferrule, sleeve length: 8 mm, length: 14 mm, color: white     Ferrule - AI 0,5 -10 WH - 3201275 Ferrule, sleeve length: 10 mm, length: 16 mm, color: white     Ferrule - AI 0,75- 8 GY - 3200519 Ferrule, sleeve length: 8 mm, length: 14 mm, color: gray     08/26/2019   Page 10 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Accessories Ferrule - AI 0,75-10 GY - 3201288 Ferrule, sleeve length: 10 mm, length: 16 mm, color: gray     Ferrule - AI 0,25- 8 YE - 3203037 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: yellow     Crimping tool Crimping pliers - CRIMPFOX 6 - 1212034 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Screwdriver tools 08/26/2019   Page 11 / 12 https://www.phoenixcontact.com/us/products/1952021 Printed-circuit board connector - FMC 1,5/ 2-ST-3,5-RF - 1952021 Accessories Screwdriver - SZS 0,4X2,5 VDE - 1205037 Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip     Terminal marking Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883 Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems, mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm     Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883 Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems, mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 08/26/2019   Page 12 / 12
