PCB terminal block - PT 1.5/ 2-PVH-3.5 - 1984015
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 200 V, Number of positions: 2, Pitch: 3.5
mm, Connection method: Screw connection, Contact surface: Tin

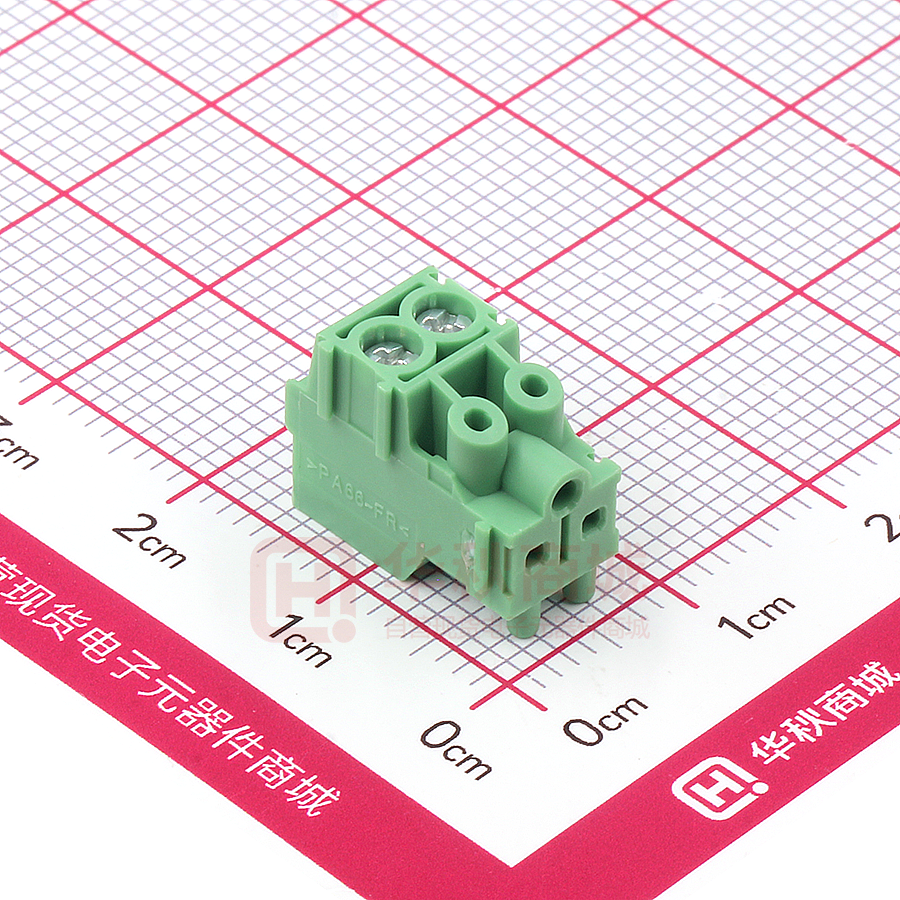

The figure shows a 10-position
version of the product
Product description
Plug component, Nominal current: 8 A, Rated voltage (III/2): 200 V, Number of positions: 2, Pitch: 3.5 mm, Connection method: Screw
connection, Contact surface: Tin
Why buy this product
Plugs with two integrated plug-in directions are available, can be keyed on request
3.5 mm and 5.0 mm pitch
Large terminal block capacity thanks to rectangular clamping space
Plugs with a rugged and reliable contact system
Highly flexible conductor protection for easy, repeated connection
Plus/minus screw
Keying option
Key commercial data
Packing unit
1
Minimum order quantity
1
Catalog page
Page 527 (CC-2011)
GTIN
Weight per piece (including packing)
0.0 GRM
Weight per Piece (excluding packing)
1.34 GRM
Country of origin
GERMANY
Technical data
Dimensions / positions
Length
14.6 mm
Height
11 mm
Pitch
3.5 mm
Dimension a
3.5 mm
10.05.2012 Page 1 / 5
https://www.phoenixcontact.com/us/produkte/1984015
PCB terminal block - PT 1.5/ 2-PVH-3.5 - 1984015
Technical data
Dimensions / positions
Number of positions
2
Screw thread
M2
Tightening torque, min
0.22 Nm
Tightening torque max
0.25 Nm
Technical data
Range of articles
PT 1,5/..-PVH
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
200 V
Rated voltage (II/2)
400 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Nominal cross section
1.5 mm²
Maximum load current
8A
Insulating material
PA
Inflammability class according to UL 94
V0
Stripping length
5 mm
Nominal voltage, UL/CUL Use Group B
300 V
Nominal current, UL/CUL Use Group B
10 A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
10 A
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
1.5 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
min.
0.25 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
max.
0.75 mm²
Conductor cross section AWG/kcmil min.
26
Conductor cross section AWG/kcmil max
16
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
0.34 mm²
2 conductors with same cross section, stranded min.
0.2 mm²
2 conductors with same cross section, stranded max.
0.5 mm²
Minimum AWG according to UL/CUL
26
Maximum AWG according to UL/CUL
16
10.05.2012 Page 2 / 5
https://www.phoenixcontact.com/us/produkte/1984015
PCB terminal block - PT 1.5/ 2-PVH-3.5 - 1984015
Classifications
eclass
eClass 4.0
272607xx
eClass 4.1
27141109
eClass 5.0
27141190
eClass 5.1
27141190
eClass 6.0
27261101
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002638
unspsc
UNSPSC 6.01
30211801
UNSPSC 7.0901
39121432
UNSPSC 11
34131203
UNSPSC 12.01
39121432
UNSPSC 13.2
39121432
Approvals
Certificates
Certification
UL Recognized / SEV / cUL Recognized / CCA / GOST / cULus Recognized
Certification EX
Certification submitted
Approval details
UL Recognized
B
D
mm²/AWG/kcmil
26-16
26-16
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
SEV
mm²/AWG/kcmil
1.5
Nominal current IN
6A
10.05.2012 Page 3 / 5
https://www.phoenixcontact.com/us/produkte/1984015
PCB terminal block - PT 1.5/ 2-PVH-3.5 - 1984015
Approvals
Nominal voltage UN
160 V
cUL Recognized
B
D
mm²/AWG/kcmil
26-16
26-16
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
CCA
mm²/AWG/kcmil
1.5
Nominal current IN
6A
Nominal voltage UN
160 V
GOST
cULus Recognized
Accessories
Accessories
Marking
Marker cards - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
Marker cards, Card, white, Labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type: Adhe
Tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, bladed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
10.05.2012 Page 4 / 5
https://www.phoenixcontact.com/us/produkte/1984015
PCB terminal block - PT 1.5/ 2-PVH-3.5 - 1984015
Accessories
Accessories - CP-PT 1,5 - 1985564
Keying profile, is inserted into the hole in the plug, red insulating material
Pin strip - PST 1,0/ 2-3,5 - 1945096
Header, Nominal current: 8 A, Rated voltage (III/2): 250 V, Number of positions: 2, Pitch: 3.5 mm, Color: Black, Contact surfa
Drawings
Dimensioned drawing
16
14
14,6
2
6
4
0
20
1
3
1 = 2-pos.
2 = 5-pos.
3 = 16-pos.
2
0
40
60
80
a+3,5
11,1
12
10
8
4,8
Current carrying capacity [A]
Diagram
4,1
100
Ambient temperature [°C]
14
1,75
3,5
a
© Phoenix Contact 2012 - all rights reserved
http://www.phoenixcontact.com
