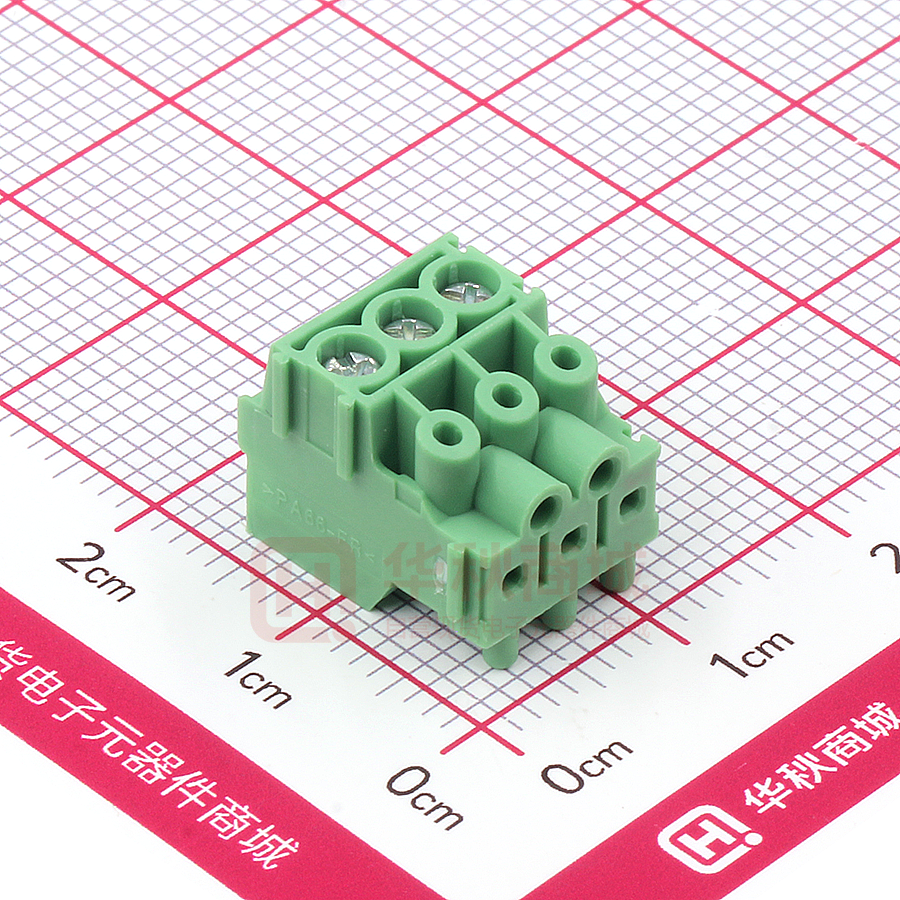

PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user
documentation. Our General Terms of Use for Downloads are valid.
PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage
(III/2): 200 V, contact surface: Tin, type of contact: Female connector, number of potentials: 3,
number of rows: 1, number of positions: 3, number of connections: 3, product range: PT 1,5/..PVH, pitch: 3.5 mm, connection method: Screw connection with wire protector, conductor/PCB
connection direction: 0 °, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard
Your advantages
• Well-known connection principle allows worldwide use
• Low temperature rise, thanks to maximum contact force
• High terminal block capacity thanks to rectangular terminal block space
• Allows connection of two conductors
• Horizontal and vertical connection option for optimum conductor routing
• The latching on the side enables various numbers of positions to be combined
Commercial Data
Item number
1984028
Packing unit
1 pc
Minimum order quantity
250 pc
Sales Key
A03
Product Key
AABAIC
Catalog Page
Page 423 (C-1-2013)
GTIN
4017918946029
Weight per Piece (including packing)
2.231 g
Weight per Piece (excluding packing)
1.986 g
Customs tariff number
85366990
Country of origin
CN
Aug 30, 2022, 8:38 AM
Page 1 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Technical Data
Product properties
Type
Plug for pin strip
Product line
COMBICON Connectors S
Product type
PCB plug
Number of positions
3
Pitch
3.5 mm
Number of connections
3
Number of rows
1
Mounting flange
without
Number of potentials
3
Electrical properties
Nominal current IN
8A
Nominal voltage UN
200 V
Pollution degree
3
Contact resistance
1.6 mΩ
Rated voltage (III/3)
160 V
Rated surge voltage (III/3)
2.5 kV
Rated voltage (III/2)
200 V
Rated surge voltage (III/2)
2.5 kV
Connection data
Connection technology
Type
Plug for pin strip
Connector system
COMBICON PST 1,0
Nominal cross section
1.5 mm²
Type of contact
Female connector
Interlock
Locking type
without
Mounting flange
without
Conductor connection
Connection method
Screw connection with wire protector
Conductor/PCB connection direction
0°
Conductor cross section solid
0.2 mm² ... 1.5 mm²
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross section AWG
26 ... 16
Conductor cross section, flexible, with ferrule, with plastic sleeve
0.25 mm² ... 0.75 mm²
2 conductors with same cross section, solid
0.2 mm² ... 0.34 mm²
2 conductors with same cross section, flexible
0.2 mm² ... 0.5 mm²
Cylindrical gauge a x b / diameter
2.4 mm x 1.5 mm / 1.9 mm
Aug 30, 2022, 8:38 AM
Page 2 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Stripping length
5 mm
Tightening torque
0.22 Nm ... 0.25 Nm
Material specifications
Material data - contact
Note
WEEE/RoHS-compliant, free of whiskers according to IEC
60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Surface characteristics
hot-dip tin-plated
Metal surface terminal point (top layer)
Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)
Tin (4 - 8 µm Sn)
Material data - housing
Housing color
green (6021)
Insulating material
PA
Insulating material group
I
CTI according to IEC 60112
600
Flammability rating according to UL 94
V0
Glow wire flammability index GWFI according to EN 60695-2-12
850
Glow wire ignition temperature GWIT according to EN 60695-213
775
Temperature for the ball pressure test according to EN 6069510-2
125 °C
Dimensions
Dimensional drawing
Pitch
3.5 mm
Width [w]
10.5 mm
Height [h]
11 mm
Length [l]
11 mm
Installed height
11 mm
Mechanical tests
Test for conductor damage and slackening
Specification
IEC 60999-1:1999-11
Result
Test passed
Pull-out test
Specification
IEC 60999-1:1999-11
0.2 mm² / solid / > 10 N
Aug 30, 2022, 8:38 AM
Page 3 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Conductor cross section/conductor type/tractive force
setpoint/actual value
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
Result
Test passed
No. of cycles
10
Insertion strength per pos. approx.
4N
Withdraw strength per pos. approx.
4N
Torque test
Specification
IEC 60999-1:1999-11
Contact holder in insert
Specification
IEC 60512-8:1993-01
Contact holder in insert
Requirements >20 N
Test passed
Resistance of inscriptions
Specification
IEC 60068-2-70:1995-12
Result
Test passed
Polarization and coding
Specification
IEC 60512-7:1993-08 (Polarization)
Result
Test passed
Visual inspection
Specification
IEC 60512-1-1:2002-02
Result
Test passed
Dimension check
Specification
IEC 60512-1-2:2002-02
Result
Test passed
Environmental and real-life conditions
Vibration test
Specification
IEC 60068-2-6:1995-03
Frequency
10 - 150 - 10 Hz
Sweep speed
1 octave/min
Amplitude
0.35 mm (10 - 60.1 Hz)
Sweep speed
5g (60.1 - 150 Hz)
Test duration per axis
2.5 h
Durability test
Specification
IEC 60512-5:1992-08
Impulse withstand voltage at sea level
2.5 kV
Contact resistance R1
1.6 mΩ
Aug 30, 2022, 8:38 AM
Page 4 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Contact resistance R2
1.7 mΩ
Insertion/withdrawal cycles
10
Climatic test
Specification
ISO 6988:1985-02
Corrosive stress
0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress
100 °C/168 h
Power-frequency withstand voltage
2 kV
Ambient conditions
Ambient temperature (operation)
-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Relative humidity (storage/transport)
30 % ... 70 %
Ambient temperature (assembly)
-5 °C ... 100 °C
Electrical tests
Thermal test | Test group C
Specification
IEC 60512-5-1:2002-02
Tested number of positions
16
Insulation resistance
Specification
IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions
1012 Ω
Air clearances and creepage distances |
Specification
IEC 60664-1:2007-04
Insulating material group
I
Comparative tracking index (IEC 60112)
CTI 600
Rated insulation voltage (III/3)
160 V
Rated surge voltage (III/3)
2.5 kV
minimum clearance value - non-homogenous field (III/3)
1.5 mm
minimum creepage distance (III/3)
2 mm
Rated insulation voltage (III/2)
200 V
Rated surge voltage (III/2)
2.5 kV
minimum clearance value - non-homogenous field (III/2)
1.5 mm
minimum creepage distance (III/2)
1 mm
Rated insulation voltage (II/2)
400 V
Rated surge voltage (II/2)
2.5 kV
minimum clearance value - non-homogenous field (II/2)
1.5 mm
minimum creepage distance (II/2)
2 mm
Packaging specifications
Type of packaging
packed in cardboard
Aug 30, 2022, 8:38 AM
Page 5 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Drawings
Dimensional drawing
a+3,5
4,8
11,1
14,6
14
4,1
1,75
3,5
a
Current carrying capacity [A]
Diagram
16
14
12
10
8
2
6
4
2
0
0
1 = 2-pos.
2 = 5-pos.
3 = 16-pos.
20
1
3
40
60
80
100
Ambient temperature [°C]
Type: PT 1,5/...-PVH-3,5 with PST 1,0/...-3,5
Aug 30, 2022, 8:38 AM
Page 6 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Approvals
EAC
Approval ID: B.01687
cULus Recognized
Approval ID: E60425-20030211
Nominal Voltage UN
Nominal Current IN
Cross Section AWG
Cross Section mm2
300 V
10 A
26 - 16
-
300 V
10 A
26 - 16
-
Use group B
Use group D
Aug 30, 2022, 8:38 AM
Page 7 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Classifications
ECLASS
ECLASS-9.0
27440309
ECLASS-10.0.1
27440309
ECLASS-11.0
27460202
ETIM
ETIM 8.0
EC002638
UNSPSC
UNSPSC 21.0
39121400
Aug 30, 2022, 8:38 AM
Page 8 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
China RoHS
Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the
manufacturer’s declaration available under “Downloads”
Aug 30, 2022, 8:38 AM
Page 9 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Accessories
Coding profile
Coding profile - CP-PT 1,5 - 1985564
https://www.phoenixcontact.com/us/products/1985564
Coding profile, inserted into the hole on the plug, made from red insulating
material, diameter: 1.35 mm
Screwdriver
Screwdriver - SZS 0,4X2,5 VDE - 1205037
https://www.phoenixcontact.com/us/products/1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component
grip, with non-slip grip
Aug 30, 2022, 8:38 AM
Page 10 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Marker card
Marker card - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
https://www.phoenixcontact.com/us/products/0804073
Marker card, white, labeled, horizontal: consecutive numbers 1 ... 10, 11 ... 20,
etc. up to 91 ... 99, mounting type: adhesive, for terminal block width: 3.5 mm,
lettering field size: 3.5 x 2.8 mm
Pin strip
Pin strip - PST 1,0/ 3-3,5 - 1945106
https://www.phoenixcontact.com/us/products/1945106
Pin strip, nominal cross section: 0.5 mm2, color: black, nominal current: 8 A
(depends on the plug used), rated voltage (III/2): 250 V, contact surface: Tin,
type of contact: Male connector, number of potentials: 3, number of rows: 1,
number of positions: 3, number of connections: 3, product range: PST 1,0/..-V,
pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin
[P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard, The maximum current depends
on the plug used. The lower of the two current values apply for plug and pin strip.
The pin strip is made of highly temperature resistant plastic and is thus suitable
for the reflow process.
Aug 30, 2022, 8:38 AM
Page 11 (12)
PCB connector - PT 1,5/ 3-PVH-3,5
1984028
https://www.phoenixcontact.com/us/products/1984028
Pin strip
Pin strip - PST 1,0/ 3-3,5 R24 - 1720246
https://www.phoenixcontact.com/us/products/1720246
Pin strip, nominal cross section: 0.5 mm2, color: black, nominal current: 8 A
(depends on the plug used), rated voltage (III/2): 250 V, contact surface: Tin,
type of contact: Male connector, number of potentials: 3, number of rows: 1,
number of positions: 3, number of connections: 3, product range: PST 1,0/..-V,
pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin
[P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard, The maximum current depends
on the plug used. The lower of the two current values apply for plug and pin strip.
The pin strip is made of highly temperature resistant plastic and is thus suitable
for the reflow process.
Pin strip
Pin strip - PST 1,0/ 3-3,5 - 1945106
https://www.phoenixcontact.com/us/products/1945106
Pin strip, nominal cross section: 0.5 mm2, color: black, nominal current: 8 A
(depends on the plug used), rated voltage (III/2): 250 V, contact surface: Tin,
type of contact: Male connector, number of potentials: 3, number of rows: 1,
number of positions: 3, number of connections: 3, product range: PST 1,0/..-V,
pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin
[P]: 3.8 mm, plug-in system: COMBICON PST 1,0, locking: without, mounting:
without, type of packaging: packed in cardboard, The maximum current depends
on the plug used. The lower of the two current values apply for plug and pin strip.
The pin strip is made of highly temperature resistant plastic and is thus suitable
for the reflow process.
Phoenix Contact 2022 © - all rights reserved
https://www.phoenixcontact.com
Phoenix Contact USA
586 Fulling Mill Road
Middletown, PA 17057, United States
(+717) 944-1300
info@phoenixcon.com
Aug 30, 2022, 8:38 AM
Page 12 (12)
