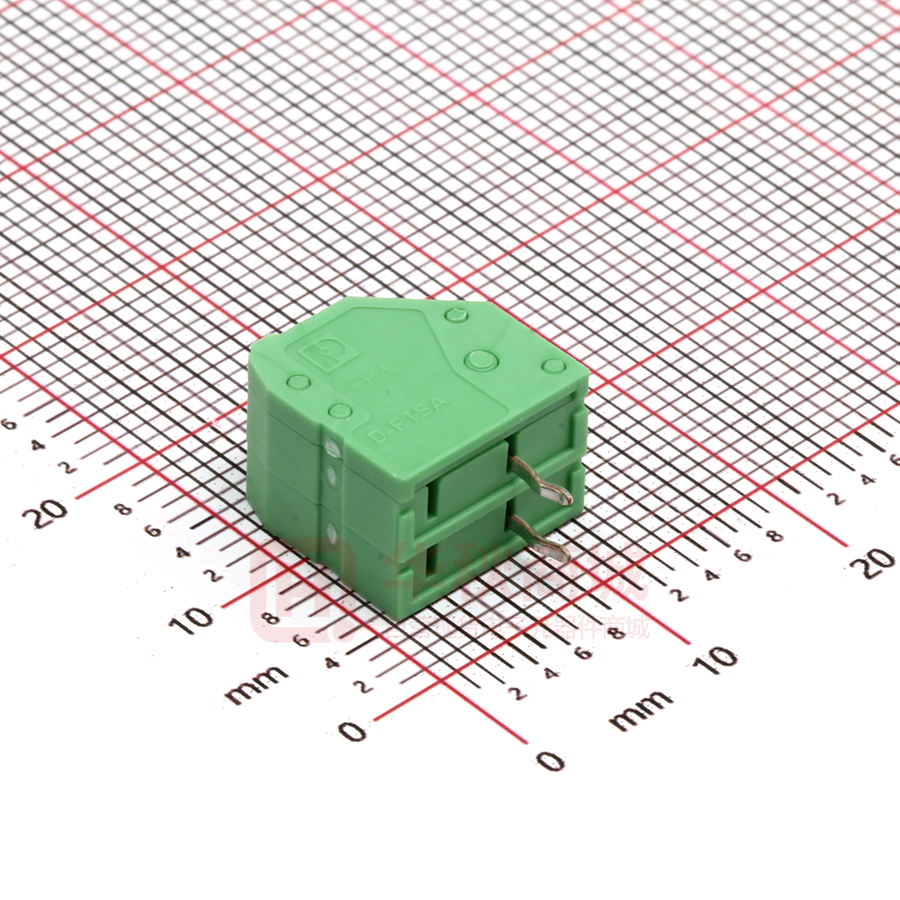

https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, nominal current: 8 A, pitch: 3.5 mm, number of positions: 2, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green. Soldering legs in front area, one-rowed The figure shows a 10-position version of the product Your advantages  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Angled connection enables multi-row arrangement on the PCB Key Commercial Data Packing unit 1 pc Minimum order quantity 420 pc GTIN GTIN 4017918922047 Weight per Piece (excluding packing) 1.200 g Custom tariff number 85369010 Country of origin China Technical data Dimensions Length [ l ] 12 mm Pitch 3.5 mm Dimension a 3.5 mm Width [ w ] 8.5 mm 09/10/2019   Page 1 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Technical data Dimensions Height 13.1 mm Height [ h ] 16.7 mm Solder pin [P] 3.6 mm Pin spacing 3.5 mm Hole diameter 1 mm General Range of articles PTSA 1,5 Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 200 V Rated voltage (III/2) 250 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal cross section 1.5 mm² Maximum load current 8A Insulating material PA Flammability rating according to UL 94 V0 Stripping length 9 mm Number of positions 2 Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 1 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 0.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 16 Standards and Regulations Connection in acc. with standard EN-VDE CUL 09/10/2019   Page 2 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Technical data Standards and Regulations Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings Drilling diagram 09/10/2019   Page 3 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Diagram Type: PTSA 1,5/...-3,5-F Dimensional drawing The figure shows the dimensional drawing of the 5-position product version 09/10/2019   Page 4 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27141100 eCl@ss 5.0 27141100 eCl@ss 5.1 27261100 eCl@ss 6.0 27261100 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 ETIM 7.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 34131203 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CCA / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details 09/10/2019   Page 5 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Approvals    CCA/DE1 34182/33276  http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx  40018594 CCA      Nominal current IN 2A mm²/AWG/kcmil 0.75 VDE Gutachten mit Fertigungsüberwachung       Nominal voltage UN 130 V Nominal current IN 2A mm²/AWG/kcmil 0.5-.75 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-20030527   B D Nominal voltage UN 300 V 300 V Nominal current IN 5A 5A mm²/AWG/kcmil 24-16 24-16 Accessories Accessories Crimping tool Crimping pliers - CRIMPFOX 6 - 1212034 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp     Screwdriver tools 09/10/2019   Page 6 / 7 https://www.phoenixcontact.com/us/products/1984963 PCB terminal block - PTSA 1,5/ 2-3,5-F - 1984963 Accessories Screwdriver - SZF 0-0,4X2,5 - 1204504 Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2component grip, with non-slip grip     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/10/2019   Page 7 / 7
