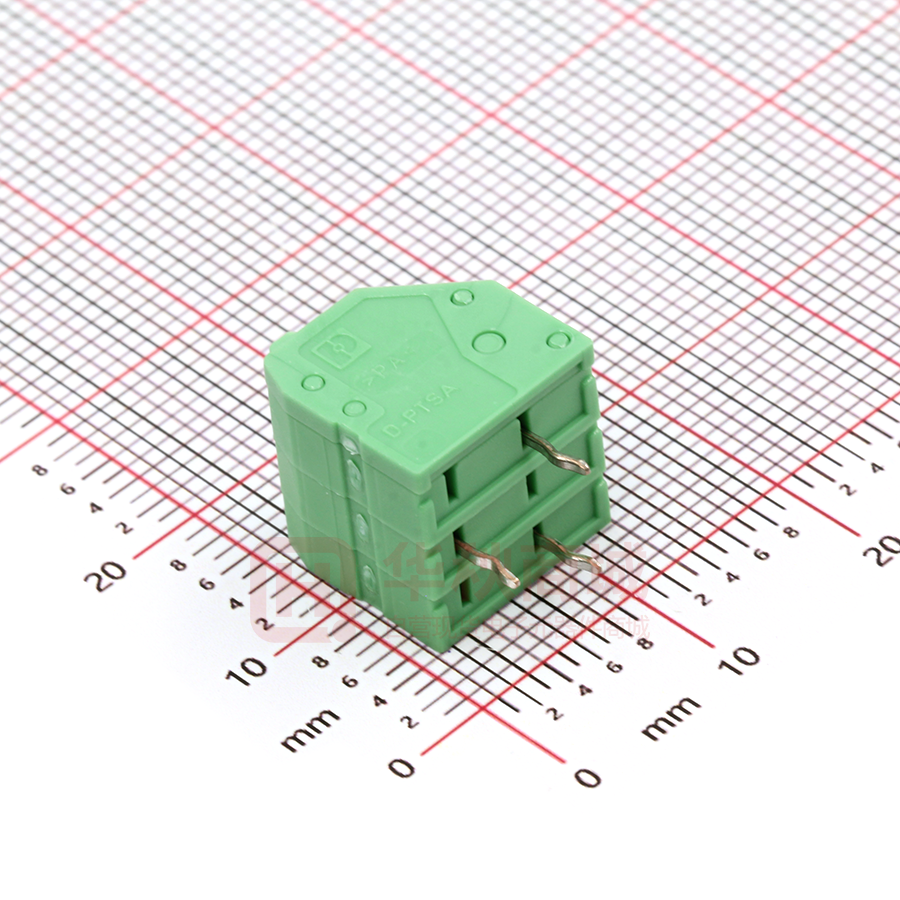

https://www.phoenixcontact.com/us/products/1985205 PCB terminal block - PTSA 1,5/ 3-3,5-Z - 1985205 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 8 A, Nom. voltage: 400 V, Pitch: 3.5 mm, Number of positions: 3, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed The figure shows a 10-position version of the product Why buy this product  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Angled connection enables multi-row arrangement on the PCB Key Commercial Data Packing unit 1 STK Minimum order quantity 250 STK Weight per Piece (excluding packing) 1.760 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 12 mm Pitch 3.50 mm Dimension a 7 mm Width 12 mm Constructional height 13.1 mm Height 16.7 mm Length of the solder pin 3.6 mm Pin dimensions 0,4 x 0,75 mm 11/04/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1985205 PCB terminal block - PTSA 1,5/ 3-3,5-Z - 1985205 Technical data Dimensions Pin spacing 3.5 mm Hole diameter 1 mm General Range of articles PTSA 1,5 Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 400 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal cross section 1.5 mm² Maximum load current 8A Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Stripping length 9 mm Number of positions 3 Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 1 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 0.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 16 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 11/04/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1985205 PCB terminal block - PTSA 1,5/ 3-3,5-Z - 1985205 Technical data Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 22 20 18 16 14 12 10 8 6 4 2 0 Drilling diagram 2,3 3,5 5 Current strength [A] Diagram = 1,5 mm 0 2 10 20 30 40 50 60 70 80 90 100 110 1 Ambient temperature [°C] Type: PTSA 1,5/4-3,5-Z Tested in accordance with DIN EN 60512-5-2:2003-01 Reduction factor = 1 Number of positions: 4 The illustration shows the drilling plan of the 5-pos. version of the article – Zig-zag pinning starts at the right-hand position. Other pinning available on request. Dimensional drawing 12 3,6 13,1 a+3,5 11,5 1,5 3,5 2,3 5 a The illustration shows the dimensional drawing of the 5-position product version Approvals Approvals Approvals UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / CCA / EAC / cULus Recognized Ex Approvals 11/04/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1985205 PCB terminal block - PTSA 1,5/ 3-3,5-Z - 1985205 Approvals Approval details UL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B D mm²/AWG/kcmil 24-16 24-16 Nominal current IN 5A 5A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung  Search.aspx 40018594  http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-     mm²/AWG/kcmil 0.5-0.75 Nominal current IN 2A Nominal voltage UN 250 V cUL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B D mm²/AWG/kcmil 24-16 24-16 Nominal current IN 5A 5A Nominal voltage UN 300 V 300 V CCA   CCA/DE1 34182/33276     mm²/AWG/kcmil 0.75 Nominal current IN 2A EAC   B.01742 cULus Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm 11/04/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1985205 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 11/04/2016   Page 5 / 5
