Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

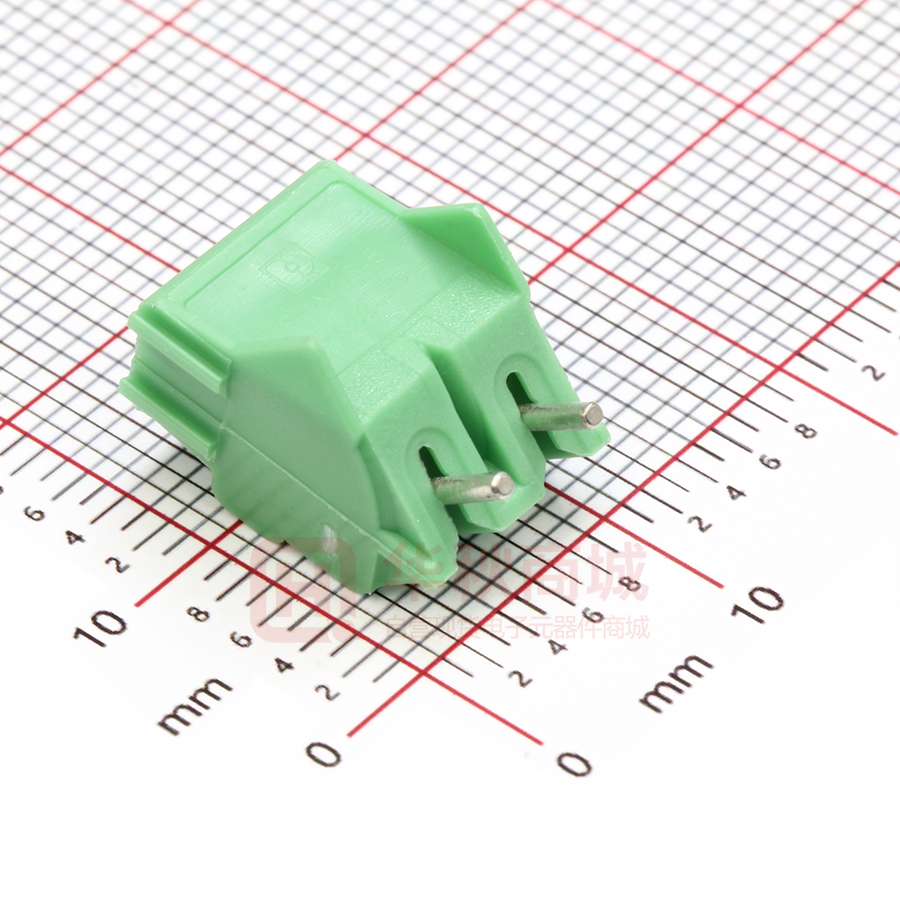

PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 2,
Connection method: Screw connection with wire protector, Mounting: Wave soldering, Conductor/PCB connection
direction: 45 °, Color: green
The figure shows a 10-position
version of the product
Product Features
■
■
■
■
■
■
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
High terminal block capacity thanks to rectangular terminal block space
Allows connection of two conductors
Angled connection enables multi-row arrangement on the PCB
The latch on the side enables various numbers of positions to be combined
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
250 pc
Weight per Piece (excluding packing)
2.08 g
Custom tariff number
85369010
Country of origin
Greece
Technical data
Dimensions
Pitch
5.00 mm
Dimension a
5 mm
Length of the solder pin
3.5 mm
Pin dimensions
1,0 mm
Pin spacing
5 mm
04/28/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1988804
Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Technical data
Dimensions
Hole diameter
1.3 mm
General
Range of articles
PTA 1,5
Insulating material group
I
Rated surge voltage (III/3)
4 kV
Rated surge voltage (III/2)
4 kV
Rated surge voltage (II/2)
4 kV
Rated voltage (III/3)
250 V
Rated voltage (III/2)
400 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
17.5 A
Nominal cross section
1.5 mm²
Maximum load current
24 A
Insulating material
PA
Solder pin surface
Sn
Flammability rating according to UL 94
V0
Internal cylindrical gage
A1 / B1
Stripping length
5 mm
Number of positions
2
Screw thread
M2,6
Tightening torque, min
0.35 Nm
Tightening torque max
0.4 Nm
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
2.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
1.5 mm²
Conductor cross section AWG min.
26
Conductor cross section AWG max.
14
2 conductors with same cross section, solid min.
0.14 mm²
2 conductors with same cross section, solid max.
1 mm²
04/28/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1988804
Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Technical data
Connection data
2 conductors with same cross section, stranded min.
0.14 mm²
2 conductors with same cross section, stranded max.
0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.25 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.75 mm²
sleeve, max.
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27141109
eCl@ss 5.0
27141190
eCl@ss 5.1
27141190
eCl@ss 6.0
27261101
eCl@ss 7.0
27440401
eCl@ss 8.0
27440401
eCl@ss 9.0
27440401
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002643
ETIM 5.0
EC002643
UNSPSC
UNSPSC 6.01
30211801
UNSPSC 7.0901
39121432
UNSPSC 11
34131203
UNSPSC 12.01
39121432
UNSPSC 13.2
39121432
04/28/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1988804
Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / VDE Gutachten mit Fertigungsüberwachung / CCA / IECEE CB Scheme / EAC / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
B
D
mm²/AWG/kcmil
26-12
26-12
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
B
D
mm²/AWG/kcmil
26-12
26-12
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
cUL Recognized
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
0.2-2.5
Nominal current IN
24 A
Nominal voltage UN
250 V
04/28/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1988804
Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Approvals
CCA
mm²/AWG/kcmil
0.2-2.5
Nominal current IN
24 A
Nominal voltage UN
250 V
IECEE CB Scheme
mm²/AWG/kcmil
0.2-2.5
Nominal current IN
24 A
Nominal voltage UN
250 V
EAC
EAC
cULus Recognized
Drawings
Drilling diagram
Diagram
Current strength [A]
a
5
2,7
2,5
36
32
28
2
24
20
16
12
1
8
4
1,3
0
0
1 = 1,5 mm
2
2 = 2,5 mm
2
20
40
60
80
100
Ambient temperature [°C]
04/28/2016 Page 5 / 6
https://www.phoenixcontact.com/us/products/1988804
Screw compact terminal block - PTA 1,5/ 2-5,0 - 1988804
Dimensional drawing
Dimensional drawing
15
12,8
3,5
11,9
a+5
2,4
2,5
5
10,5
a
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/28/2016 Page 6 / 6
