1990106

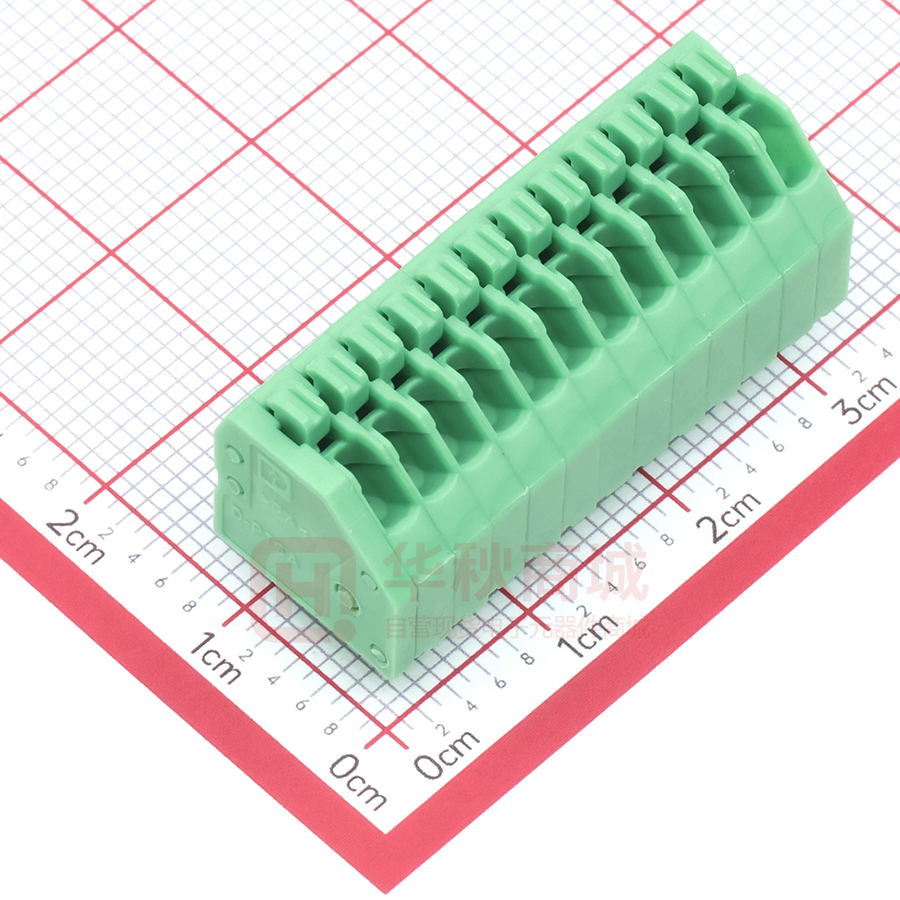

https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, nominal current: 2 A, pitch: 2.5 mm, number of positions: 12, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green. Offset soldering legs, two-rowed The figure shows a 10-position version of the product Your advantages  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Angled connection enables multi-row arrangement on the PCB Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4017918973674 Weight per Piece (excluding packing) 4.770 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length [ l ] 12 mm Pitch 2.5 mm Dimension a 27.5 mm Width [ w ] 31.5 mm 11/14/2019   Page 1 / 6 https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Technical data Dimensions Height 13.1 mm Height [ h ] 16.7 mm Solder pin [P] 3.6 mm Pin spacing 2.5 mm Hole diameter 1 mm General Range of articles PTSA 0,5 Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 160 V Rated voltage (III/2) 250 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 2A Nominal cross section 0.5 mm² Maximum load current 2A Insulating material PA Flammability rating according to UL 94 V0 Stripping length 9 mm Number of positions 12 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 20 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e 11/14/2019   Page 2 / 6 https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Technical data Environmental Product Compliance No hazardous substances above threshold values Drawings Drilling diagram The figure shows the 5-pos. version – Zig-zag pinning starts at the right-hand position. Other pinning available on request. 11/14/2019   Page 3 / 6 https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Diagram Derating diagram for 5 pins;reduction factor=1 Dimensional drawing The figure shows the 5-pos. version 11/14/2019   Page 4 / 6 https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27141100 eCl@ss 5.1 27261100 eCl@ss 6.0 27261100 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 ETIM 7.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 34131203 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CCA / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details CCA        Nominal current IN 2A  CCA/DE1 34204 11/14/2019   Page 5 / 6 https://www.phoenixcontact.com/us/products/1990106 PCB terminal block - PTSA 0,5/12-2,5-Z - 1990106 Approvals     mm²/AWG/kcmil 0.5 VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 250 V Nominal current IN 2A mm²/AWG/kcmil 0.5  40013932 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-20030527   B D Nominal voltage UN 300 V 300 V Nominal current IN 2A 2A mm²/AWG/kcmil 26-20 26-20 Accessories Accessories Screwdriver tools Screwdriver - SZF 0-0,4X2,5 - 1204504 Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.4 x 2.5 x 75 mm, 2component grip, with non-slip grip     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/14/2019   Page 6 / 6
