2201797

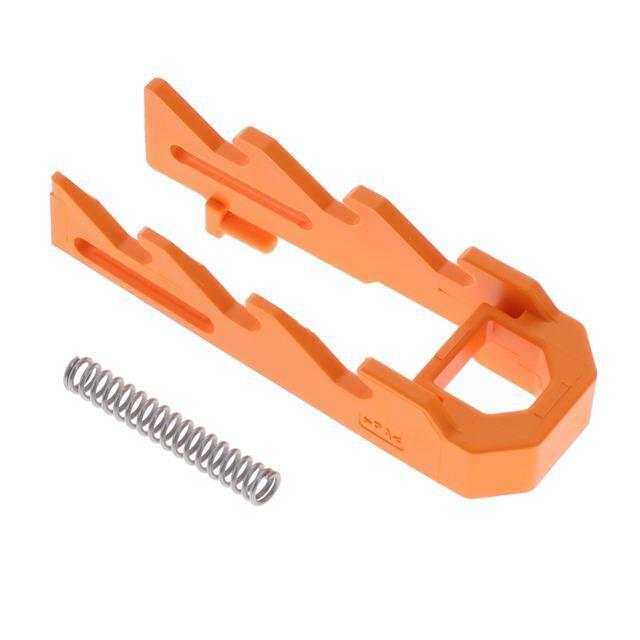

https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) DIN rail housing, 3U, Lock and Release system, width: 16.1 mm, height: 45.95 mm, depth: 8.8 mm, color: orange Your advantages  Easy, tool-free mounting  Lock and Release interlock in contrasting color for intuitive operation  Plastic in accordance with UL94 V0: for more rigorous flammability requirements Key Commercial Data Packing unit 1 pc Minimum order quantity 10 pc GTIN GTIN 4046356911580 Weight per Piece (excluding packing) 4.000 g Custom tariff number 85472000 Country of origin Germany Technical data Item properties Brief article description Locking Type HSC-LR 3U KIT 2003 Order No. 2201797 Housing type DIN rail housing Housing series ME-IO Type 3U 06/14/2020   Page 1 / 6 https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Technical data Item properties Mounting type Snap in Dimensions Width [ w ] 16.1 mm Height [ h ] 45.95 mm Depth [ d ] 8.8 mm Material data Color (RAL) orange Flammability rating according to UL 94 V0 Housing material Polyamide Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C ... 105 °C (depending on power dissipation) Relative humidity (storage/transport) 80 % PCB data Mounting position Vertical (horizontal DIN rail) Packaging information Pieces per package 10 Denomination packing units Pcs. Standards and regulations Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 10.0.1 27440309 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 06/14/2020   Page 2 / 6 https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Classifications eCl@ss eCl@ss 7.0 27440309 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 4.0 EC001031 ETIM 5.0 EC002638 ETIM 6.0 EC002638 ETIM 7.0 EC002638 UNSPSC UNSPSC 13.2 39121409 UNSPSC 18.0 39121409 UNSPSC 19.0 39121409 UNSPSC 20.0 39121409 UNSPSC 21.0 39121409 Approvals Approvals Approvals UL Recognized / EAC Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 240868 EAC      B.01742 06/14/2020   Page 3 / 6 https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Accessories Accessories Component housing upper part Housing cover - ME-IO 18,8 C 5U 7035 - 2201803 DIN rail housing, 5U, Housing cover, width: 18.9 mm, height: 54.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 7U 7035 - 2201805 DIN rail housing, 7U, Housing cover, width: 18.9 mm, height: 76.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 3U S1 7035 - 2201801 DIN rail housing, 3U, Housing cover, width: 18.9 mm, height: 32.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 4U 7035 - 2201802 DIN rail housing, 4U, Housing cover, width: 18.9 mm, height: 43.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 6U 7035 - 2201804 DIN rail housing, 6U, Housing cover, width: 18.9 mm, height: 65.8 mm, depth: 26 mm, color: light gray (7035)     06/14/2020   Page 4 / 6 https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Accessories Housing cover - ME-IO 18,8 C 2U 7035 - 2201799 DIN rail housing, 2U, Housing cover, width: 18.9 mm, height: 21.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 3U 7035 - 2201800 DIN rail housing, 3U, Housing cover, width: 18.9 mm, height: 32.8 mm, depth: 26 mm, color: light gray (7035)     Housing cover - ME-IO 18,8 C 9U 7035 - 2201806 DIN rail housing, 9U, Housing cover, width: 18.9 mm, height: 98.8 mm, depth: 26 mm, color: light gray (7035)     DIN rail connector DIN rail bus connectors - ME 18,8 TBUS 1,5/5-ST-3,81KMGY - 2201813 DIN rail connector, number of positions: 5, pitch: 3.81 mm, color: light gray, contact surface: Gold, Articles with goldplated contacts, bus connectors for connecting with electronic housings     Necessary add-on products 06/14/2020   Page 5 / 6 https://www.phoenixcontact.com/us/products/2201797 Locking - HSC-LR 3U KIT 2003 - 2201797 Accessories Feed-through header - HSCH 2,5-3U/12 9005 - 2201788 PCB headers, nominal current: 8 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 12, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm     Feed-through header - HSCH 2,5-2U/ 8 9005 - 2201789 PCB headers, nominal current: 8 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 8, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm     Feed-through header - HSCH 2,5-2U-TTTT 9005 - 2201790 PCB headers, nominal current: 8 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 4, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm     Feed-through header - HSCH 2,5-2U-2220 9005 - 2201792 PCB headers, nominal current: 8 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 6, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 06/14/2020   Page 6 / 6
