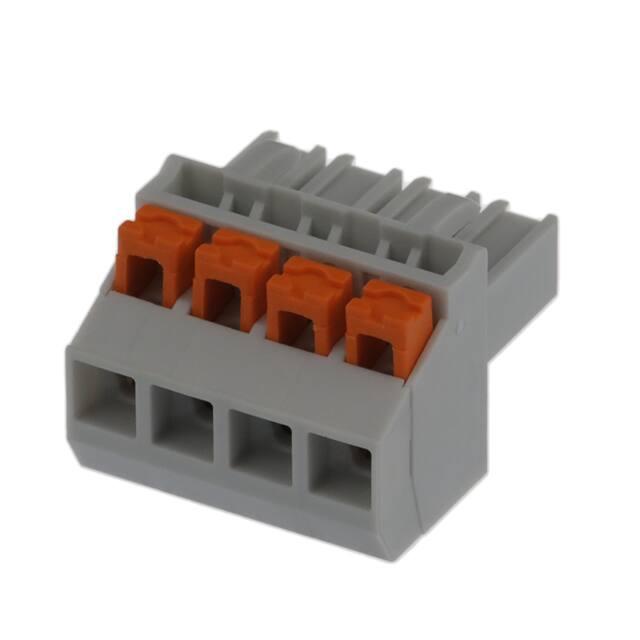

https://www.phoenixcontact.com/za/products/2202344 Printed-circuit board connector - PSPT 2,5/ 4-ST KMGY - 2202344 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal current: 16 A, rated voltage (III/2): 300 V, nominal cross section: 2.5 mm², number of positions: 4, pitch: 5 mm, connection method: Push-in spring connection, color: light gray, contact surface: Tin, Color of the spring lever: orange Your advantages  Time saving push-in connection, tools not required Key Commercial Data Packing unit 50 pc GTIN GTIN 4055626058801 Weight per Piece (excluding packing) 5.070 g Custom tariff number 85366990 Country of origin China Technical data Item properties Brief article description Printed-circuit board connector Plug-in system CLASSIC COMBICON Type of contact Female connector Range of articles PSPT 2,5/..-ST Pitch 5 mm Number of positions 4 Connection method Push-in spring connection Number of levels 1 Number of connections 4 Number of potentials 4 Electrical parameters Nominal current 16 A 07/10/2020   Page 1 / 6 https://www.phoenixcontact.com/za/products/2202344 Printed-circuit board connector - PSPT 2,5/ 4-ST KMGY - 2202344 Technical data Electrical parameters Nom. voltage 300 V Rated voltage (III/2) 300 V Rated voltage (II/2) 600 V Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Connection capacity Connection method Push-in spring connection pluggable Yes Conductor cross section solid 0.2 mm² ... 2.5 mm² Conductor cross section flexible 0.2 mm² ... 2.5 mm² Conductor cross section AWG / kcmil 24 ... 16 Conductor cross section flexible, with ferrule without plastic sleeve 0.2 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm² ... 0.34 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 1.5 mm² Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics Tin-plated Metal surface terminal point (top layer) Tin ( Material data - housing Housing color light gray (7035) Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Dimensions for the product Length [ l ] 21.3 mm Width [ w ] 19.95 mm Height [ h ] 15 mm Pitch 5 mm Packaging information 07/10/2020   Page 2 / 6 https://www.phoenixcontact.com/za/products/2202344 Printed-circuit board connector - PSPT 2,5/ 4-ST KMGY - 2202344 Technical data Packaging information Type of packaging packed in cardboard Pieces per package 50 Denomination packing units Pcs. Outer packaging type Carton Ambient conditions Ambient temperature (storage/transport) -40 °C ... 55 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C ... 105 °C (dependent on the derating curve) Termination and connection method Test – repeated connection and release IEC 60999-1:1999-11 Test passed Test for conductor damage and slackening IEC 60999-1:1999-11 Test passed Pull-out test Pull-out test IEC 60999-1:1999-11 Test passed Conductor cross section / conductor type / tensile force 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 2.5 mm² / solid / > 50 N 2.5 mm² / flexible / > 50 N Mechanical tests according to standard Test specification IEC 61984 Visual examination Test passed IEC 60512-1-1:2002-02 Dimensional test Test passed IEC 60512-1-2:2002-02 Result Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 13 N Withdraw strength per pos. approx. 8N Polarization and coding Test passed IEC 60512-13-5:2006-02 Result Test passed Specification IEC 60512-15-1:2008-05 Test force per pos. 20 N Current carrying capacity / derating curves Specification IEC 61984 Mechanical tests (A) Test specification IEC 61984 Insertion strength per pos. approx. 13 N 07/10/2020   Page 3 / 6 https://www.phoenixcontact.com/za/products/2202344 Printed-circuit board connector - PSPT 2,5/ 4-ST KMGY - 2202344 Technical data Mechanical tests (A) Withdraw strength per pos. approx. 8N Polarization when inserted requirement >20 N Test passed Contact holder in insert requirements >20 N Test passed Durability tests (B) Insulation resistance, neighboring positions > 30 GΩ Thermal tests (C) Specification IEC 60512-5-1:2002-02 Number of positions 4 Conductor cross section 2.5 mm² Upper limiting temperature requirements
