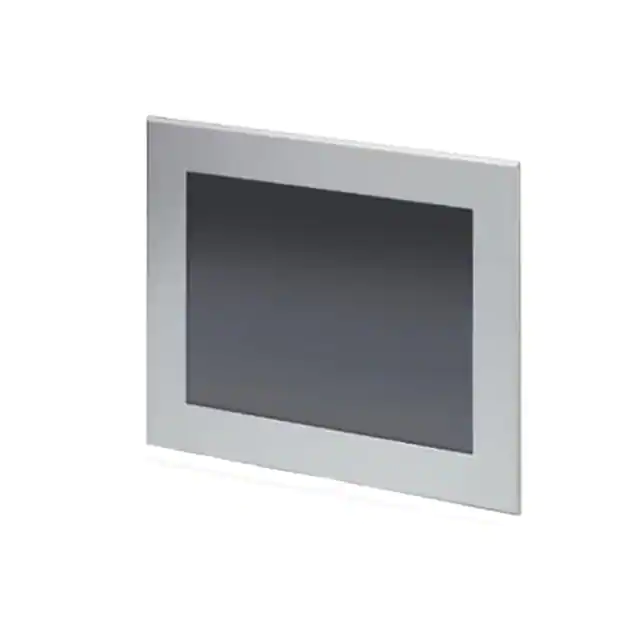

https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Touch panel with 26.4 cm/10.4" TFT-display (analog resistive (polyester)), 800 x 600 pixel(s) (SVGA), 262144 ® ® ® colors, Arm Cortex -A8, 800 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows Embedded Compact 7 and user software: Visu+ / AX OPC Server. (bus system: without) Similar figure Your advantages  Easy installation, low installation depth, and compact design  Short startup time  Visu+ RT and AX OPC server integrated as standard in all devices  Easy IP address allocation and active connection monitoring thanks to PROFINET-Device according to Conformance Class B  Display available in sizes from 14.5 cm (5.7") to 39.05 cm (15.4")  Versatile communication options, even with third-party systems, thanks to numerous drivers and interfaces  Energy efficient due to LED backlighting  Acoustic warning from alarms via integrated buzzer (85 dB) Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626055954 Weight per Piece (excluding packing) 2,480.000 g Custom tariff number 84714100 Country of origin Germany Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area 09/04/2020   Page 1 / 6 https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Technical data Dimensions Outer dimensions: width, height, depth 295 mm x 220 mm x 5 mm (Dimensions of the front plate) Installation dimensions: width, height, depth 287 mm x 212 mm x 54 mm (Installation cutout) Display Display type 26.4 cm/10.4" TFT Screen resolution 800 x 600 Pixel(s) (SVGA) Touch technology analog resistive (polyester) Brightness 340 cd/m² typical (adjustable) Backlighting LED Display backlight MTBF 50000 h Colors 262144 colors Reading angle left 55 ° Reading angle right 55 ° Reading angle top 70 ° Reading angle bottom 70 ° Computer data Processor Arm Cortex -A8, 800 MHz Operating system Windows Embedded Compact 7 User software Visu+ ® ® ® AX OPC Server RAM 512 MB RAM Mass storage Flash, 1 GB Network 1 x Ethernet (10/100 Mbps), RJ45 Interfaces 2x USB Host 2.0 Bus system without Slots 1x SD Realtime clock Yes (battery-backed) Service life of battery 5 years (typical) General Material front plate Aluminum (natural anodized) Housing material Steel sheet, zinc-plated Mounting type Front installation Weight 1900 g Ambient conditions Degree of protection IP65 (front), IP20 (back) NEMA 4X 09/04/2020   Page 2 / 6 https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Technical data Ambient conditions Ambient temperature (operation) 0 °C ... 50 °C Ambient temperature (storage/transport) -25 °C ... 70 °C Permissible humidity (operation) 20 % ... 85 % (non-condensing) Permissible humidity (storage/transport) 20 % ... 85 % (non-condensing) Vibration (operation) DIN EN 60068-2-6 Shock DIN EN 60068-2-27 Device supply Supply voltage 24 V DC Supply voltage range 18 V DC ... 30 V DC Typical current consumption 0.5 A Power consumption typ. 12 W Power supply unit 24 V DC ±20 % Standards and Regulations Shock DIN EN 60068-2-27 Vibration (operation) DIN EN 60068-2-6 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 15; For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Classifications eCl@ss eCl@ss 10.0.1 27330201 eCl@ss 4.0 27330200 eCl@ss 4.1 27330200 eCl@ss 5.0 27330200 eCl@ss 5.1 27330200 eCl@ss 6.0 27242300 eCl@ss 7.0 27242302 eCl@ss 8.0 27242302 eCl@ss 9.0 27330201 ETIM ETIM 4.0 EC001412 09/04/2020   Page 3 / 6 https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Classifications ETIM ETIM 5.0 EC001412 ETIM 6.0 EC001412 ETIM 7.0 EC001412 UNSPSC UNSPSC 13.2 43211904 UNSPSC 18.0 43211904 UNSPSC 19.0 43211904 UNSPSC 20.0 43211904 UNSPSC 21.0 43211904 Approvals Approvals Approvals EAC / UL Listed / cUL Listed / cULus Listed Ex Approvals UL Listed / cUL Listed / cULus Listed Approval details     RU*DE*08.B.00004/18 UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 205795 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 205795 EAC  09/04/2020   Page 4 / 6 https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Approvals cULus Listed       Accessories Accessories Battery module Battery / accumulator - HMI BATTERY - 2701383 Lithium battery     Mounting material Mounting material - HMI SCB MOUNTING KIT 4 - 2701384 HMI mounting kit for installation on a front plate. The mounting kit includes 4 x mounting brackets, 4 x screw threads, and a hexagonal wrench.     Mounting material - HMI SCB MOUNTING KIT 6 - 2701385 HMI mounting kit for installation on a front plate. The mounting kit includes 6 x mounting brackets, 6 x screw threads, and a hexagonal wrench.     Mounting material - HMI SCB MOUNTING KIT 8 - 2701387 HMI mounting kit for installation on a front plate. The mounting kit includes 8 x mounting brackets, 8 x screw threads, and a hexagonal wrench.     09/04/2020   Page 5 / 6 https://www.phoenixcontact.com/us/products/2400455 Touch panel - TP 3105S - 2400455 Accessories Operating stylus Touch pen - TOUCH PEN - 2701379 Touch pen for analog-resistive HMIs, silver coated. Delivery includes self-adhesive pen holder.     Parameterization memory Program / configuration memory - SD FLASH 2GB - 2988162 Program and configuration memory, for extending the internal flash memory, pluggable, 2 GB.     PCB plug Printed-circuit board connector - MC 1,5/ 3-STF-3,5 BD:1-3 - 1751312 PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 3, pitch: 3.5 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Storage medium USB memory stick - USB FLASH DRIVE - 2402809 USB memory stick, 8 GB     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 09/04/2020   Page 6 / 6
