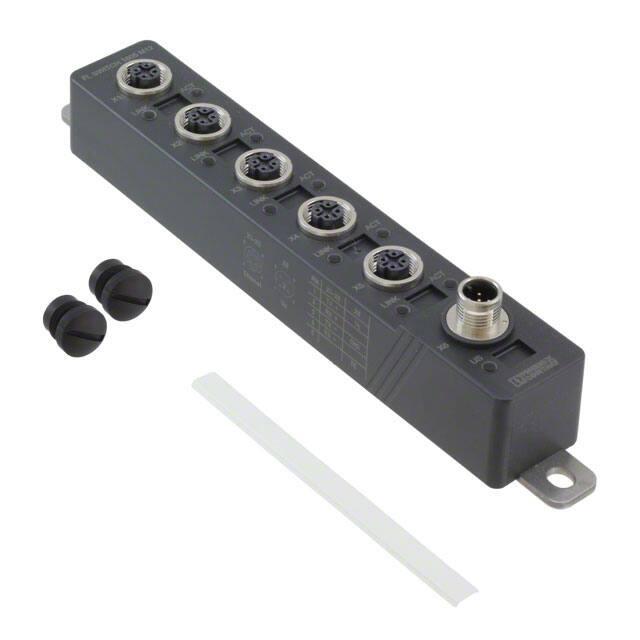

https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Ethernet switch, 5 Ethernet ports on the front in M12 format, automatic detection of 10 or 100 Mbps data transmission rate, coupling of network segments with different transmission speeds, auto crossing function, IP67 protection Product Description Ethernet interface: The FL SWITCH 1605 M12 has five Ethernet ports on the front in M12 format, to which only CAT5/CAT6 Ethernet cables with D-coded M12 connectors can be connected. The data transmission speed is 10 Mbps or 100 Mbps. In addition, each port has an autocrossing function at 100 Mbps. It is not necessary to distinguish between 1:1 and crossover Ethernet cables. Switching properties of the FL SWITCH 1605 M12 – Store and forward: The switch independently learns the addresses for terminal devices, which are connected via a port, by evaluating the source addresses in the data telegrams. Only packets with unknown addresses, with a source address of this port or with a multicast/broadcast address in the destination address field are forwarded via the corresponding port. The switch can store up to 4096 addresses in its address table with an aging time of 40 seconds. This is important if more than one terminal device is connected to one or more ports. In this way, several independent subnets can be connected to one switch. - Multi-address function: The switch independently learns the addresses for terminal devices, which are connected via a port, by evaluating the source addresses in the data telegrams. Only packets with unknown addresses, with a source address of this port or with a multicast/broadcast address in the destination address field are forwarded via the corresponding port. The switch can store up to 4096 addresses in its address table with an aging time of 40 seconds. This is important if more than one terminal device is connected to one or more ports. In this way, several independent subnets can be connected to one switch. - Quality of Service (QoS) With the aid of the Quality of Service function, the switch can process PROFINET traffic preferentially. To do this, the switch detects the QoS priority from the Ethernet packets and forwards the Ethernet packets with higher priority first. Your advantages  Robust IP67 housing  Easy panel mounting Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356499781 Weight per Piece (excluding packing) 280.000 g 11/07/2019   Page 1 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Custom tariff number 85176200 Country of origin Germany Technical data Dimensions Caption Side view (dimensions in mm) Width 30 mm Height 200 mm Depth 41 mm Ambient conditions Degree of protection IP65 IP66 IP67 Ambient temperature (operation) -40 °C ... 70 °C Ambient temperature (storage/transport) -40 °C ... 70 °C Permissible humidity (operation) 10 % ... 95 % Permissible humidity (storage/transport) 10 % ... 95 % (non-condensing) Air pressure (operation) 86 kPa ... 108 kPa (2000 m above sea level) Air pressure (storage/transport) 66 kPa ... 108 kPa (3500 m above sea level) Function Basic functions Unmanaged switch/auto negotiation, complies with standard IEEE 802.3, store-and-forward switching mode, 2 priority classes according to IEEE802.1p, PTCP filter Additional functions Autonegotiation PROFINET conformance class Conformance-Class A Status and diagnostic indicators LEDs: US (power supply), 2 LEDs per Ethernet port (Link and Activity) Network expansion parameters Cascading depth Network, linear, and star structure: any Maximum conductor length (twisted pair) 100 m Supply voltage Supply voltage 24 V DC (M12 connector) Residual ripple 3.6 VPP Supply voltage range 9 V DC ... 32 V DC Typical current consumption 40 mA (at US = 24 V DC) Max. current consumption 40 mA (+ 10 mA per port) Current consumption 40 mA ... 80 mA (at 24 V DC) General Mounting type Wall mounting 11/07/2019   Page 2 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Technical data General Type AX Stand-alone Net weight 281.7 g Housing material PBT Material base plate High-grade steel (1.4301/1.4016) Note NOTE: Meet noise immunity requirements Connect FE using a mounting screw when mounting on a conductive surface. When mounting on a non-conductive surface, FE is connected using the mounting screw via a cable lug. MTTF 302.5 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) 156.52 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) 40.43 Years (SN 29500 standard, temperature 55 °C, operating cycle 100 % (7 days a week, 24 hours a day)) Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Type of test Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Test result Operation: 30g, 6 ms continuous testing, 5g 30 ms continuous testing Type of test Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 Test result Operation/Storage/Transport: 5g, 150 Hz, Criterion 3 Type of test Free fall in acc. with IEC 60068-2-32 Test result 0.5 m Type of test Vibration resistance according to IEC 61373, EN 61373 Test result Category 1, Class B Noise emission EN 61000-6-4 Noise immunity EN 61000-6-2 Connection in acc. with standard CUL Environmental Product Compliance Lead 7439-92-1 Drawings 11/07/2019   Page 3 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Product drawing Dimensional drawing X1 Side X5: view (dimensions in mm) Ethernet connection X6: Supply voltage ACT: ACT LEDs LNK: Link LED US: US1 LED Dimensional drawing Top view (dimensions in mm) 11/07/2019   Page 4 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Product drawing 11/07/2019   Page 5 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Schematic diagram Connecting the supply voltage PIN 1 Us PIN 2 n.c. Pin 3 GND Pin 4 n.c. Pin 5 Functional earth ground 11/07/2019   Page 6 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Schematic diagram Assignment of the LAN socket Pin 1 Transmit + Pin 2 Receive + Pin 3 Transmit Pin 4 Receive - Classifications eCl@ss eCl@ss 10.0.1 19170402 eCl@ss 4.0 24010500 eCl@ss 4.1 24010500 eCl@ss 5.0 19030100 eCl@ss 5.1 19030100 11/07/2019   Page 7 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Classifications eCl@ss eCl@ss 6.0 19170100 eCl@ss 7.0 19170106 eCl@ss 8.0 19170106 eCl@ss 9.0 19170106 ETIM ETIM 4.0 EC000734 ETIM 5.0 EC000734 ETIM 6.0 EC000734 ETIM 7.0 EC000734 UNSPSC UNSPSC 6.01 43172015 UNSPSC 7.0901 43201404 UNSPSC 11 43172015 UNSPSC 12.01 43201410 UNSPSC 13.2 43222612 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 140324 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 140324 11/07/2019   Page 8 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Approvals EAC  cULus Recognized      RU *DE.A*30.B.01735      Accessories Accessories Circular connector (cable-side) Connector - SACC-MSD-4QO SH PN SCO - 1411068 Connector, PROFINET CAT5 (100 Mbps), 4-position, halogen-free, shielded, Plug straight M12 SPEEDCON, D-coded, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm     Bus system connector - SACC-M12MRD-4Q SH - 1553624 Bus system connector, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug angled M12, D-coded, Insulation displacement connection, knurl material: Nickel-plated brass, external cable diameter 4 mm ... 8 mm     Connector - SACC-M12MS-5PL M - 1424649 Connector, Universal, 5-position, Plug straight M12, A-coded, Push-in connection, knurl material: Zinc die-cast, nickelplated, external cable diameter 4 mm ... 8 mm     11/07/2019   Page 9 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Accessories Connector - SACC-M12MR-5PL M - 1424651 Connector, Universal, 5-position, Plug angled M12, A-coded, Push-in connection, knurl material: Zinc die-cast, nickelplated, external cable diameter 4 mm ... 8 mm     Data cable preassembled Network cable - NBC-MSD SCO/.../... - 1408713 Network cable, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on free cable end, cable length: Free input (0.2 ... 40.0 m)     Network cable - NBC-MSD-MSD SCO/.../... - 1408706 Network cable, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug straight M12 SPEEDCON / IP67, coding: D, cable length: Free input (0.2 ... 40.0 m)     Network cable - NBC-MSD-MRD SCO/.../... - 1408700 Network cable, Ethernet CAT5 (100 Mbps), 4-position, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug angled M12 SPEEDCON / IP67, coding: D, cable length: Free input (0.2 ... 40.0 m)     Network cable - NBC-MSD-R4AC SCO/.../... - 1408712 Network cable, Ethernet CAT5 (100 Mbps), 4-position, Variable cable type, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug straight RJ45 / IP20, cable length: Free input (0.2 ... 40.0 m)     11/07/2019   Page 10 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Accessories Data plug Control cabinet feed-through - CUC-BH-M12D1PBK-A/R4BE - 1414397 Control cabinet feed-through, M12, 4-pos., D-coded to RJ45 socket, socket entry: 90°, IP65/IP67     Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Sensor/actuator cable Sensor/actuator cable - SAC-5P-FS SCO/.../... - 1536489 Sensor/actuator cable, 5-position, Variable cable type, free cable end, on Socket straight M12 SPEEDCON, A-coded, cable length: Free input (0.2 ... 40.0 m)     Sensor/actuator cable - SAC-5P-M12FR/.../... - 1697124 Sensor/actuator cable, 5-position, Variable cable type, free cable end, on Socket angled M12, A-coded, cable length: Free input (0.2 ... 40.0 m)     11/07/2019   Page 11 / 12 https://www.phoenixcontact.com/us/products/2700200 Industrial Ethernet Switch - FL SWITCH 1605 M12 - 2700200 Accessories Sensor/actuator cable - SAC-5P-MS-FS SCO/.../... - 1523625 Sensor/actuator cable, 5-position, Variable cable type, Plug straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, A-coded, cable length: Free input (0.2 ... 40.0 m)     Sensor/actuator cable - SAC-5P-MS-FR SCO/.../... - 1542415 Sensor/actuator cable, 5-position, Variable cable type, Plug straight M12 SPEEDCON, A-coded, on Socket angled M12 SPEEDCON, A-coded, cable length: Free input (0.2 ... 40.0 m)     Terminal marking Zack Marker strip, flat - ZBF 8:UNBEDRUCKT - 0808781 Zack Marker strip, flat, Strip, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, mounting type: snap into flat marker groove, for terminal block width: 8 mm, lettering field size: 5.15 x 8.15 mm, Number of individual labels: 10     Y-distributor Y distributor - SAC-5PY-F/M-F VP SH - 1419933 Y distributor, 5-position, shielded, Socket straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, Acoded and Plug straight M12 SPEEDCON, A-coded, Parallel distributor     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/07/2019   Page 12 / 12
