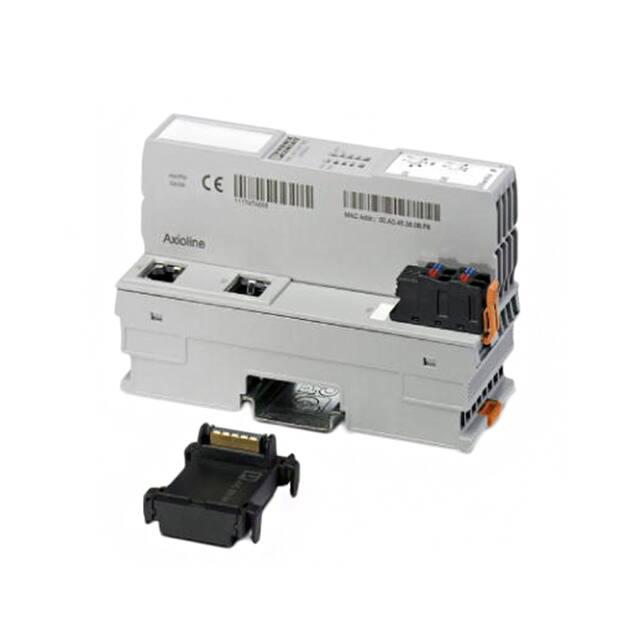

https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Axioline F, Bus coupler, EtherNet/IP™, RJ45 jack, extended function, transmission speed in the local bus: 100 Mbps, degree of protection: IP20, including bus base module and Axioline F connector Product Description The bus coupler is intended for use within an EtherNet/IP™ network. It is the link to the Axioline F I/O system. Up to 63 Axioline F devices can be connected to the bus coupler. A corresponding EDS file is available for integrating the Axioline F station into the programming system. It can be downloaded at: phoenixcontact.net/product/2702782 Your advantages  2 Ethernet ports (with integrated switch)  Transmission speed of 10 Mbps and 100 Mbps  Rotary coding switches for setting the IP address assignment and other functions  Supported protocols: EtherNet/IP, DLR, SNMP, HTTP, TFTP, FTP, BootP, DHCP, DCP  Firmware can be updated  Typical cycle time of the Axioline F local bus is around 10 μs Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626320533 Weight per Piece (excluding packing) 240.000 g Custom tariff number 85176200 Country of origin Germany Technical data Dimensions 05/30/2020   Page 1 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Technical data Dimensions Width 45 mm Height 126.1 mm Depth 74 mm Note on dimensions The depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715). Ambient conditions Ambient temperature (operation) -25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail) -25 °C ... 55 °C (Mounting position: any) Ambient temperature (storage/transport) -40 °C ... 85 °C Permissible humidity (operation) 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing) Air pressure (operation) 70 kPa ... 106 kPa (up to 3000 m above sea level) Air pressure (storage/transport) 70 kPa ... 106 kPa (up to 3000 m above sea level) Degree of protection IP20 Connection data Designation Axioline F connector Connection method Push-in connection Note on the connection method Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 16 Stripping length 8 mm General Mounting type DIN rail Color traffic grey A RAL 7042 Net weight 230.7 g Note on weight specifications with connector and bus base module Mounting position any (observe temperature derating) Interfaces Designation EtherNet/IP™ No. of channels 2 Connection method RJ45 jack 05/30/2020   Page 2 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Technical data Interfaces Note on the connection method Auto negotiation and autocrossing Transmission speed 10/100 Mbps (Half or full duplex mode (automatic detection, can be adjusted manually)) Transmission physics Ethernet in RJ45 twisted pair Designation Axioline F local bus Connection method Bus base module Transmission speed 100 Mbps Designation Service Connection method USB type C (as of HW 01) Micro USB type B (HW 00) System limits of the bus coupler Number of supported devices max. 63 (per station) Number of local bus devices that can be connected max. 63 Axioline potentials Designation Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL) Supply voltage 24 V DC Supply voltage range 19.2 V DC ... 30 V DC (including all tolerances, including ripple) Current consumption max. 583 mA (2 A at UBus, UL = 24 V, HW 00) max. 670 mA (2.5 A at UBus, UL = 24 V, HW 01 or later) Power consumption max. 14 W (2 A at UBus, UL = 24 V, HW 00) max. 16 W (2.5 A at UBus, UL = 24 V, HW 01 or later) Designation Axioline F local bus supply (UBus) Supply voltage 5 V DC (via bus base module) Power supply unit max. 2 A (HW 00) max. 2.5 A (as of HW 01) Protective circuit Surge protection of the supply voltage electronic Polarity reversal protection of the supply voltage electronic Standards and Regulations Mechanical tests Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g Protection class III (IEC 61140, EN 61140, VDE 0140-1) Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years 05/30/2020   Page 3 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Technical data Environmental Product Compliance For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Connection diagram 05/30/2020   Page 4 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Block diagram Internal wiring of the terminal points 05/30/2020   Page 5 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Dimensional drawing Classifications eCl@ss eCl@ss 10.0.1 27242608 eCl@ss 5.1 27242608 eCl@ss 6.0 27242600 eCl@ss 7.0 27242608 eCl@ss 8.0 27242608 eCl@ss 9.0 27242608 ETIM ETIM 5.0 EC001604 ETIM 6.0 EC001604 ETIM 7.0 EC001604 05/30/2020   Page 6 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Classifications UNSPSC UNSPSC 6.01 43172015 UNSPSC 7.0901 43201404 UNSPSC 11 39121311 UNSPSC 12.01 39121311 UNSPSC 13.2 39121311 UNSPSC 18.0 32151602 UNSPSC 19.0 32151602 UNSPSC 20.0 32151602 UNSPSC 21.0 32151602 Approvals Approvals Approvals UL Listed / cUL Listed / DeviceNet / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 238705 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 238705 DeviceNet    http://www.odva.org  11509.02      cULus Listed  05/30/2020   Page 7 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Accessories Accessories Data cable by the meter Network cable - FL CAT5 HEAVY - 2744814 CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm², solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter     Network cable - FL CAT5 FLEX - 2744830 CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-duty, flexible installation cable 2 x 2 x 0.14 mm², stranded, shielded, outer sheath: 5.75 mm ± 0.15 mm diameter     Device marking Insert label - EMT (35X18,7)R - 0801831 Insert label, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: snapped into marker carrier, lettering field size: 35 x 18.7 mm, Number of individual labels: 500     DIN rail connector Bus connector - AXL BS BK - 2701422 Axioline  F bus base module for housing type BK     Plug 05/30/2020   Page 8 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Accessories RJ45 connector - FL PLUG RJ45 GR/2 - 2744856 RJ45 connector, shielded, with bend protection sleeve, 2 pieces, gray for straight cables, for assembly on site. For connections that are not crossed, it is recommended that you use the connector set with gray bend protection sleeve.     RJ45 connector - FL PLUG RJ45 GN/2 - 2744571 RJ45 connector, shielded, with bend protection sleeve, 2 pieces, green for crossed cables, for assembly on site. For connections that are crossed, it is recommended that the connector set with green bend protection sleeves is used.     Programming cable Connecting cable - CAB-USB A/MICRO USB B/2,0M - 2701626 Connecting cable, for connecting the controller to a PC for PC Worx and LOGIC+, USB A to micro USB B, 2 m in length.     Terminal marking Zack marker strip - ZB 20,3 AXL UNPRINTED - 0829579 Zack marker strip for Axioline F (device labeling), in 2 x 20.3 mm pitch, unprinted, 25-section, for individual labeling with B-STIFT 0.8, X-PEN, or CMS-P1-PLOTTER     Zack Marker strip, flat - ZBF 10/5,8 AXL UNPRINTED - 0829580 Zack Marker strip, flat, Strip, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, mounting type: snap into flat marker groove, for terminal block width: 10.15 mm, lettering field size: 4 of 10.15 x 5 mm and 1 of 5.8 x 5 mm, Number of individual labels: 50     05/30/2020   Page 9 / 10 https://www.phoenixcontact.com/us/products/2702782 Bus coupler - AXL F BK EIP EF - 2702782 Accessories Assembly tool - FL CRIMPTOOL - 2744869 Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 05/30/2020   Page 10 / 10
