FLS PB M12 DIO 8/8 M12
Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372

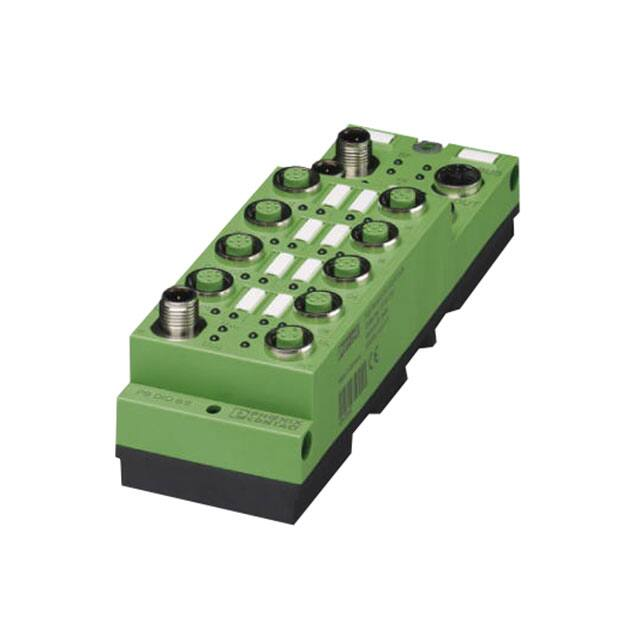

The stand-alone device for PROFIBUS has 8 digital inputs and
8 digital outputs each with a load capacity of 500 mA. The M12
connection is established using fast connection technology. The 24 V
DC supply is protected against short circuit and overload.
Product notes
WEEE/RoHS-compliant since:
08/21/2008
Commercial data
GTIN (EAN)
4
017918
939199
sales group
L011
Pack
1 pcs.
Customs tariff
85176200
Catalog page information
Page 353 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Width
60 mm
Height
178 mm
Depth
49.3 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
Drill hole spacing
168 mm
Weight
340 g
Mounting type
Wall mounting
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Permissible humidity (storage/transport)
95 %
Air pressure (operation)
80 kPa ... 106 kPa (up to 2000 m above sea level)
Air pressure (storage/transport)
70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protection
IP65/67
Protection class
III, IEC 61140, EN 61140, VDE 0140-1
Test section
To I/O 500 V AC
Interface
Fieldbus system
PROFIBUS-DP
Name
PROFIBUS DP
Type of connection
2 M12 plug connectors, B-coded
Designation connection point
Copper cable
Transmission speed
9.64 kBaud to 12 Mbaud automatic detection
12 MBit/s (Automatic baud rate detection)
Transmission physics
PROFIBUS-DP-compliant copper cable
Address area assignment
1 ... 99, can be set
Number of positions
5
Power supply for module electronics
Type of connection
M12 plug connectors, (A-coded)
Name
UL
Supply voltage
24 V DC
Supply voltage range
18 V DC ... 30 V DC IEC 61131-2 (including ripple)
Fieldline potential routing
Voltage supply UL
24 V DC
Power supply at UL
max. 4 A
Current consumption from UL
Typ. 40 mA
max. 100 mA
Voltage supply US
24 V DC
Power supply at US
max. 4 A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
Current consumption from US
Typ. 10 mA (plus sensor current)
max. 500 mA
Voltage supply UA11
24 V DC
Power supply at UA11
max. 4 A
Current consumption at UA11
Typ. 6 mA (plus actuator current)
max. 4 A
Voltage supply UA12
24 V DC
Power supply at UA12
max. 4 A
Current consumption at UA12
Typ. 6 mA (plus actuator current)
max. 4 A
Digital inputs
Input name
Digital inputs
Type of connection
M12 plug connectors, double occupancy
Connection method
2, 3, 4-wire
Number of inputs
8
Protective circuit
Protection against polarity reversal
Filter time
3 ms
Input characteristic curve
IEC 61131-2 type 1
Input voltage
24 V DC
Input voltage range "0" signal
-30 V DC ... 5 V DC
Input voltage range "1" signal
13 V DC ... 30 V DC
Digital outputs
Output name
Digital outputs
Type of connection
M12 plug connectors, double occupancy
Connection method
2, 3-wire
Number of outputs
8
Protective circuit
Short-circuit protection
Output voltage
24 V DC
Maximum output current per channel
500 mA
Certificates / Approvals
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
Certification
CUL, UL
Certification Ex:
CUL-EX, UL-EX
Accessories
Item
Designation
Description
Cable/conductor
1507298
SAC-2P- 2,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, Bcoded, Cable length: 2 m
1507308
SAC-2P- 5,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, Bcoded, Cable length: 5 m
1507311
SAC-2P-10,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, Bcoded, Cable length: 10 m
1507324
SAC-2P-15,0-910/M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Free conductor end, on Socket, straight M12, Bcoded, Cable length: 15 m
1507340
SAC-2P-M12MSB/ 0,3-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 0.3 m
1507353
SAC-2P-M12MSB/ 0,5-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 0.5 m
1507366
SAC-2P-M12MSB/ 1,0-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 1 m
1507243
SAC-2P-M12MSB/ 2,0-910
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 2 m
1507379
SAC-2P-M12MSB/ 2,0-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 2 m
1507256
SAC-2P-M12MSB/ 5,0-910
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 5 m
1507382
SAC-2P-M12MSB/ 5,0-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 5 m
1507269
SAC-2P-M12MSB/10,0-910
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 10 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
1507395
SAC-2P-M12MSB/10,0-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 10 m
1507272
SAC-2P-M12MSB/15,0-910
Bus system cable, 2-position, PUR, halogen-free, Violet, RAL
4001, shielded, Plug, straight M12, B-coded, on Free conductor
end, Cable length: 15 m
1507405
SAC-2P-M12MSB/15,0-910/
M12FSB
Bus system cable, 2-position, PUR, halogen-free, Violet,
RAL 4001, shielded, Plug, straight M12, B-coded, on Socket,
straight M12, B-coded, Cable length: 15 m
1509487
SAC-4P- 2,0-186/M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 2 m
1509490
SAC-4P- 5,0-186/M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 5 m
1509500
SAC-4P-10,0-186/M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 10 m
1509513
SAC-4P-15,0-186/M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Free conductor end, on Socket, straight M12, A-coded, Cable
length: 15 m
1509526
SAC-4P-M12MS/ 0,3-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 0.3 m
1509539
SAC-4P-M12MS/ 0,5-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 0.5 m
1509542
SAC-4P-M12MS/ 1,0-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 1 m
1509445
SAC-4P-M12MS/ 2,0-186
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 2 m
1509555
SAC-4P-M12MS/ 2,0-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 2 m
1509458
SAC-4P-M12MS/ 5,0-186
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 5 m
1509568
SAC-4P-M12MS/ 5,0-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 5 m
1509461
SAC-4P-M12MS/10,0-186
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 10 m
1509571
SAC-4P-M12MS/10,0-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 10 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
1509474
SAC-4P-M12MS/15,0-186
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Free conductor end, Cable
length: 15 m
1509584
SAC-4P-M12MS/15,0-186/
M12FS
Sensor/Actuator cable, 4-position, PUR, Black-gray RAL 7021,
Plug, straight M12, A-coded, on Socket, straight M12, A-coded,
Cable length: 15 m
ZBF 12:UNBEDRUCKT
Zack strip, flat, unprinted, 5-section, divisible, for labeling by the
customer
1510722
SAC-4P-M12Y/2X0,3-PUR/
M12FS VP
Sensor/Actuator cable, 4-position, PUR, halogen-free, Black-gray
RAL 7021, Plug, straight M12, A-coded, on Socket, straight M12,
A-coded and Socket, straight M12, A-coded, Cable length: 0.3 m
1507803
SAC-5P-M12MS PB TR
Terminating resistor PROFIBUS M12
1507780
SAC-M12T/2XM12 PB DP
Bus system T-connector, 5-pos., PROFIBUS, M12 plug, B-coded,
to M12 plug, B-coded, and M12 socket, B-coded
1507777
SACC-M12FSB-5CON-PG9 SH
AU
Bus system plug connector, female, straight, 5-pos., M12,
shielded, gold-plated contacts, B-coded, screw connection, metal
knurl, cable screw connection Pg9
1507764
SACC-M12MSB-5CON-PG9 SH
AU
Bus system plug connector, male straight, 5-pos., M12, shielded,
gold-plated contacts, B-coded, screw connection, metal knurl,
cable screw connection Pg9
Marking
0809735
Plug/Adapter
Protection and sealing elements
1680539
PROT-M12
An M12 screw plug for the unoccupied M12 sockets of the sensor/
actuator cable, boxes and flush-type connectors
Diagrams/Drawings
Connection diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 6 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
Block diagram
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 7 / 8
Feb 4, 2011
FLS PB M12 DIO 8/8 M12 Order No.: 2736372
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736372
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 8 / 8
Feb 4, 2011
