2736770

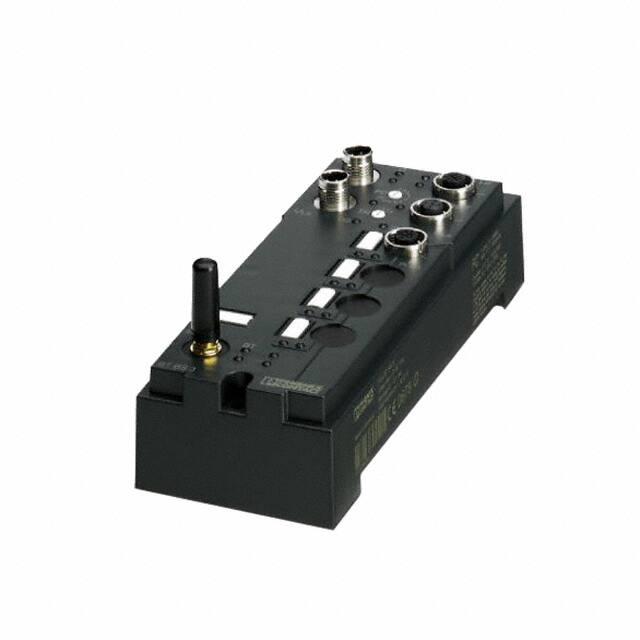

Extract from the online catalog     FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770   Wireless IO base station for up to three Wireless IO devices, transmission power max. 20 dBm adjustable; Bluetooth V1.2; frequency band 2.4 GHz; 1 wireless interface; WLANBlackChannelList; LEM; country approvals; Fieldline Modular M12 local bus connection   Product notes WEEE/RoHS-compliant since: 09/28/2009 Commercial data GTIN (EAN) 4 046356 042673 sales group L084 Pack 1 pcs. Customs tariff 85176200 Catalog page information Page 212 (AX-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Interface Fieldbus system INTERBUS Name Fieldline Modular local bus PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 6 Feb 4, 2011 FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770 Type of connection M12 connector, B-coded Transmission speed 500 kBaud / 2 MBaud (data rate can be changed via pin 5 (voltage supply ULS)) Transmission physics Copper Address area assignment 3 ... 12 words, variable, depending on type and number of wireless modules connected Wireless interface Name Bluetooth Wireless standard Bluetooth 1.2 Frequency range 2.402 GHz ... 2.48 GHz (ISM bandwidth) Transmission power 8 dBm (6.3 mW, controlled automatically) Wireless modules that can be connected Up to 3 Antenna Assembly instructions OMNI antenna is included Number 1 Type of connection SMA (male) Power supply for module electronics Type of connection M12 circular connector Supply voltage 24 V DC Supply voltage range 19.2 V DC ... 30 V DC (including ripple) Supply current < 100 mA General data Width 70.5 mm Height 178.5 mm Depth 50 mm Drill hole spacing 168 mm Weight 255 g Mounting type Wall mounting Ambient temperature (operation) -25 °C ... 60 °C Permissible humidity (operation) 95 % Air pressure (operation) 795 hPa ... 1080 hPa (up to 2000 m above mean sea level) Degree of protection IP65 Protection class III, IEC 61140, EN 61140, VDE 0140-1 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 6 Feb 4, 2011 FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770 Mechanical tests Shock in acc. with IEC 60068-2-27:1997 25g Vibration (operation) in acc. with IEC 60068-2-6:1982 5g PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 6 Feb 4, 2011 FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770 Wireless licences Australia (Special rule: Please contact the Product Manager) Belgium Bulgaria Denmark Germany Estonia Finland France Greece Great Britain Ireland Iceland Israel Italy Canada Latvia Liechtenstein Lithuania Luxembourg Malta The Netherlands Norway Austria Poland Portugal Romania Russia (Special rule: Please contact the Product Manager) Sweden Switzerland Singapore Slovakia Slovenia Spain Czech Republic Turkey Hungary USA Cyprus (rep.) PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 6 Feb 4, 2011 FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770 Certificates / Approvals Certification CUL, UL Accessories Item Designation Description 2692254 FL WST BASIC Simulation software for supporting the planning of wireless systems in industrial environments. Thus, the later number and position of wireless components can be estimated and the quality of the radio coverage simulated. 2692377 FL WST BASIC DEMO Simulation software for supporting the planning of wireless systems in industrial environments. Their functionality is limited with regard to the memory options as compared with the full version FL WST BASIC. Software PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 5 / 6 Feb 4, 2011 FLM BT BS 3 Order No.: 2736770 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2736770 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 6 / 6 Feb 4, 2011
