2808190

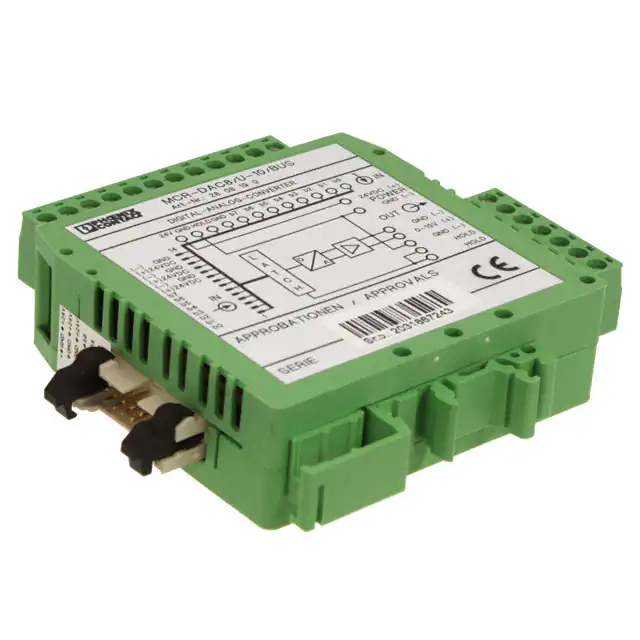

Extract from the online catalog     MCR-DAC 8-U-10-BUS Order No.: 2808190 The illustration shows version MCR-DAC 8-U-5-BUS   s. MCR 8-bit digital/analog converters, with flat-ribbon cable connection and COMBICON plug connector, pitch 5.08 mm, output signal 0..10 V co   m http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2808190 Commercial data nt Product notes 4017918075545 Pack 1 pcs. Customs tariff 85389091 Weight/Piece 0.1349 KG Catalog page information Page 343 (IF-2007) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. on l in ec om po ne EAN WEEE/RoHS-compliant since: 08/06/2008 Technical data Input data Input signal 8 Bit (1 leading sign) Input voltage range 24 V DC ... 30 V DC Signal level "1" signal ≥ 15 V DC Signal level "0" signal ≤ 2 V DC Max. input current ≤ 1 mA PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 1 / 4 Dec 19, 2009 MCR-DAC 8-U-10-BUS Order No.: 2808190 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2808190 Input resistance ≥ 5.7 kΩ Name of protection Surge protection Protective circuit/component Suppressor diode, 36 V / 1500 W 5 mA Output name Voltage output Voltage output signal 0 V ... 10 V Load/output load voltage output ≥ 2 kΩ Resolution, outputs (voltage) Approx. 39 mV D/A conversion time ≤ 25 µs co Output current m Output data Power supply 24 V DC ±10 % Range of supply voltages 22 V DC ... 26 V DC Max. current consumption 20 mA ne nt s. Nominal supply voltage Connection data Flat-ribbon cable connection and COMBICON plug connector (pitch 5.08 mm) po Type of connection Conductor cross section solid max. 0.2 mm² om Conductor cross section solid min. 2.5 mm² 0.2 mm² Conductor cross section stranded max. 2.5 mm² Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 14 Stripping length 8 mm on l in ec Conductor cross section stranded min. Screw thread M3 General data Width 25 mm Height 108 mm Depth 100.5 mm Transmission error, max. (± 1 LSB, for 25°C) Protective circuitry Protection against polarity reversal, suppressor diode Ambient temperature (operation) 0 °C ... 55 °C Color green Housing material Polyamide PA non-reinforced PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 2 / 4 Dec 19, 2009 MCR-DAC 8-U-10-BUS Order No.: 2808190 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2808190 Mounting position Any Conformity CE compliant Certificates / Approvals Certification GOST co m Drawings po ne nt s. Dimensioned drawing on l in ec om Circuit diagram PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 3 / 4 Dec 19, 2009 MCR-DAC 8-U-10-BUS Order No.: 2808190 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2808190 Address s. co m PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 00 Fax +49 5235 3 41200 http://www.phoenixcontact.de on l in ec om po ne nt © 2009 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 4 / 4 Dec 19, 2009
