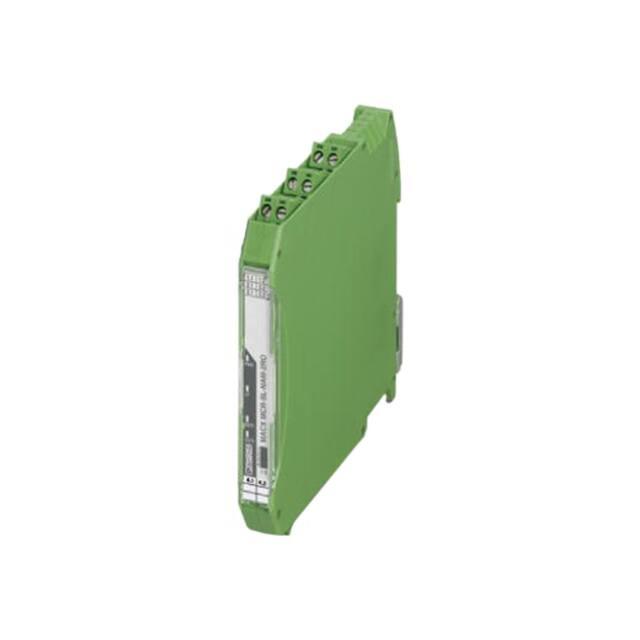

https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) NAMUR signal conditioner for operating proximity sensors and switches. The signals are transferred to the control level using 2 isolated relay outputs (N/O contact). Line fault detection (LFD), 3-way electrical isolation, SIL 2, screw connection. Your advantages  Power supply and error indication possible via DIN rail connector  Installation in zone 2, protection type "n" (EN 60079-15) permitted  Up to SIL 2 according to EN 61508  Line fault detection (LFD), can be activated/deactivated, error indicated by red flashing LED with de-excitation of output relay  Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit  4-way electrical isolation  Direction of operation can be selected (operating or closed circuit current behavior)  2 relay signal outputs (N/O contact); output 2 can also be used as an error signaling output  LED indicators for supply voltage, switching state, and malfunction according to NAMUR NE 44 Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356491686 Weight per Piece (excluding packing) 140.000 g Custom tariff number 85437090 Country of origin Germany Technical data Note 09/12/2019   Page 1 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area Dimensions Width 12.5 mm Height 112.5 mm Depth 114.5 mm Ambient conditions Ambient temperature (operation) -20 °C ... 60 °C (Any mounting position) Ambient temperature (storage/transport) -40 °C ... 85 °C Maximum altitude ≤ 2000 m Permissible humidity (operation) 10 % ... 95 % (non-condensing) Noise immunity EN 61000-6-2 EN 61326 Input data Non-load voltage ~ 8 V DC Switching points (attenuated) < 1.2 mA (blocking) Switching points (unattenuated) > 2.1 mA (conductive) Available input sources NAMUR proximity sensors (EN 60947-5-6) Short-circuit current ~ 8 mA Switching hysteresis < 0.2 mA Line fault detection Break 0.05 mA < IIN < 0.35 mA Short circuit 100 Ω < RSensor < 360 Ω Output data Switching output Relay output Contact type 2 N/O contacts Contact material AgSnO2, hard gold-plated Maximum switching voltage 250 V AC (2 A) 120 V DC (0.2 A) 30 V DC (2 A) Maximum switching capacity 500 VA Mechanical service life 10 cycles Switching frequency ≤ 20 Hz (without load) 7 Power supply Nominal supply voltage 24 V DC Supply voltage range 19.2 V DC ... 30 V DC (24 V DC -20%...+25%) Max. current consumption 30 mA (24 V DC) 09/12/2019   Page 2 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Technical data Power supply Power dissipation < 950 mW Power consumption < 950 mW General No. of channels 1 Status display Green LED (supply voltage) LED yellow (switching state) Red LED (line errors) Degree of pollution 2 Overvoltage category III Electromagnetic compatibility Conformance with EMC directive Interference emission EN 61000-6-4 Housing material PA 6.6-FR Color gray Designation Input/supply, DIN rail connector Electrical isolation 300 Vrms (Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1)) Designation Output 1/output 2/input, power supply, DIN rail connector Electrical isolation 300 Vrms (Rated insulation voltage (overvoltage category III; degree of pollution 2, safe isolation as per EN 61010-1)) Designation Output 1/output 2/input/power supply, DIN rail connector Electrical isolation 2.5 kV (50 Hz, 1 min., test voltage) Conformance CE-compliant, additionally EN 61326-1 ATEX  II 3 G Ex nA nC IIC T4 Gc X UL, USA/Canada UL 508 Listed UL 61010 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC T4 SIL 2 Safety characteristic data Integrity requirement IEC 61508 - Low demand Designation Non-inverted operation Equipment type Type A Safety Integrity Level (SIL) 2 Safe Failure Fraction (SFF) 78 % λSU 2.49 x 10 (249 FIT) λSD 6 x 10 (6 FIT) -7 -9 09/12/2019   Page 3 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Technical data Safety characteristic data λDU 6.4 x 10 (64 FIT) λDD 7 x 10 (7 FIT) Probability of a hazardous failure on demand (PFDAVG) 3.09 x 10 (1 year) -8 -9 -4 -4 6.17 x 10 (2 years) -3 1.54 x 10 (5 years) Diagnostic coverage (DC) DCS = 2.4 %, DCD = 9 % Integrity requirement IEC 61508 - Low demand Designation Inverted operation Equipment type Type A Safety Integrity Level (SIL) 2 Safe Failure Fraction (SFF) 78 % λSU 2.48 x 10 (248 FIT) λSD 1 x 10 (1 FIT) λDU 6.2 x 10 (62 FIT) λDD 6 x 10 (6 FIT) Probability of a hazardous failure on demand (PFDAVG) 3.01 x 10 (1 year) -7 -9 -8 -9 -4 -4 6.02 x 10 (2 years) -3 1.5 x 10 (5 years) Diagnostic coverage (DC) DCS = 0.4 %, DCD = 8 % Safety Integrity Level (SIL) 1 Standards and Regulations Electromagnetic compatibility Conformance with EMC directive Noise emission EN 61000-6-4 Conformance CE-compliant, additionally EN 61326-1 ATEX  II 3 G Ex nA nC IIC T4 Gc X UL, USA/Canada UL 508 Listed UL 61010 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC T4 DNV GL-Temperature B DNV GL-Humidity B DNV GL-Vibration A DNV GL-EMC B DNV GL-Enclosure Required protection according to the Rules shall be provided upon installation on board 09/12/2019   Page 4 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Technical data Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Block diagram 09/12/2019   Page 5 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Dimensional drawing Pictogram 09/12/2019   Page 6 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Classifications eCl@ss eCl@ss 4.0 27210100 eCl@ss 4.1 27210100 eCl@ss 5.0 27210100 eCl@ss 5.1 27210100 eCl@ss 6.0 27210100 eCl@ss 7.0 27210121 eCl@ss 8.0 27210121 eCl@ss 9.0 27210121 ETIM ETIM 2.0 EC001485 ETIM 3.0 EC001485 ETIM 4.0 EC001485 ETIM 5.0 EC001485 ETIM 6.0 EC001485 ETIM 7.0 EC001485 UNSPSC UNSPSC 6.01 30211506 UNSPSC 7.0901 39121008 UNSPSC 11 39121008 UNSPSC 12.01 39121008 UNSPSC 13.2 39121008 Approvals Approvals Approvals DNV GL / UL Listed / cUL Listed / Functional Safety / cULus Listed Ex Approvals ATEX / UL Listed / cUL Listed / EAC Ex / cULus Listed Approval details 09/12/2019   Page 7 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Approvals DNV GL    https://approvalfinder.dnvgl.com/  TAA00000AG UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 330267 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 330267    07-06-39 R005 V2R2     Functional Safety  cULus Listed   Accessories Accessories Device marking Plastic label - UC-EMLP (11X9) - 0819291 Plastic label, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 10     Plastic label - UC-EMLP (11X9) YE - 0822602 Plastic label, Sheet, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 10     09/12/2019   Page 8 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Plastic label - UC-EMLP (11X9) SR - 0828094 Plastic label, Sheet, silver, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 10     Plastic label - US-EMLP (11X9) - 0828789 Plastic label, Card, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 135     Plastic label - US-EMLP (11X9) YE - 0828871 Plastic label, Card, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 135     Plastic label - US-EMLP (11X9) SR - 0828872 Plastic label, Card, silver, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 135     Device marker - LS-EMLP (11X9) WH - 0831678 Device marker, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 255     09/12/2019   Page 9 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Device marker - LS-EMLP (11X9) YE - 0831732 Device marker, Sheet, yellow, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 255     Device marker - LS-EMLP (11X9) SR - 0831705 Device marker, Sheet, silver, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 255     DIN rail connector DIN rail bus connectors - ME 6,2 TBUS-2 1,5/5-ST-3,81 GN - 2869728 DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.     End cover End cover - D-UKK 3/5 - 2770024 End cover, length: 56 mm, width: 2.5 mm, height: 52 mm, color: gray     End cover - D-UKK 3/5 BU - 2770105 End cover, length: 56 mm, width: 2.5 mm, height: 62 mm, color: blue     09/12/2019   Page 10 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Insulating sleeve Insulating sleeve - MPS-IH BK - 0201731 Insulating sleeve, color: black     Insulating sleeve - MPS-IH GY - 0201728 Insulating sleeve, color: gray     Insulating sleeve - MPS-IH GN - 0201702 Insulating sleeve, color: green     Insulating sleeve - MPS-IH YE - 0201692 Insulating sleeve, color: yellow     Insulating sleeve - MPS-IH BU - 0201689 Insulating sleeve, color: blue     09/12/2019   Page 11 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Insulating sleeve - MPS-IH RD - 0201676 Insulating sleeve, color: red     Insulating sleeve - MPS-IH WH - 0201663 Insulating sleeve, color: white     Labeled device marker Plastic label - UC-EMLP (11X9) CUS - 0824547 Plastic label, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: adhesive, lettering field size: 11 x 9 mm     Plastic label - UC-EMLP (11X9) YE CUS - 0824548 Plastic label, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: adhesive, lettering field size: 11 x 9 mm     Plastic label - UC-EMLP (11X9) SR CUS - 0828098 Plastic label, can be ordered: by sheet, silver, labeled according to customer specifications, mounting type: adhesive, lettering field size: 11 x 9 mm, Number of individual labels: 10     09/12/2019   Page 12 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Module carrier Module carrier - TC-2D37SUB-ADIO32-2EX-P-UNI - 2904684 Universal Termination Carrier for connecting 16 two-channel MACX Analog Ex i signal conditioners to digital or analog I/ O cards, via two D-SUB connectors, 37-pos. (1:1 connection)     Power module Power and error message module - MACX MCR-PTB - 2865625 Power and fault signaling module with screw connection, including corresponding ME 17,5 TBUS 1,5/ 5-ST-3,81 GY DIN rail connector     Power and error message module - MACX MCR-PTB-SP - 2924184 Power and fault signaling module with Push-in connection, including corresponding ME 17,5 TBUS 1,5/ 5-ST-3,81 GY DIN rail connector     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, color: gray     09/12/2019   Page 13 / 14 https://www.phoenixcontact.com/us/products/2865010 Isolation amplifier - MACX MCR-SL-NAM-2RO - 2865010 Accessories Component terminal block - UKK 5-2R/NAMUR - 2941662 Double-level terminal block, with preassembled resistors     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/12/2019   Page 14 / 14
