2867555

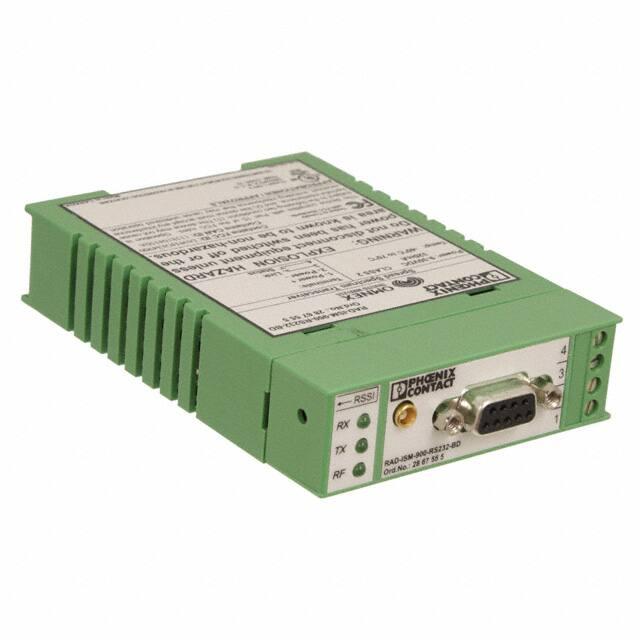

https://www.phoenixcontact.com/us/products/2867555 Wireless module - RAD-ISM-900-RS232-BD - 2867555 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Wireless transceiver (transmitter and receiver) with RS-232 interface, for 900 MHz ISM band (America) Product Features ■ ■ ■ ■ ■ ■ Up to 254 slaves can be connected to one master Operates in the license-free 902 - 928 MHz ISM band Provides an interface for I/O data transmission between a 900 MHz wireless transmission system and RS-232, RS-422 or RS-485 interfaces Frequency hopping spread spectrum The individual devices can be configured as master, slave or repeater Can be programmed for point-to-point, point-to-multipoint, and multipoint-to-point configurations Key Commercial Data Packing unit 1 pc Minimum order quantity 18 pc Weight per Piece (excluding packing) 2.0 g Custom tariff number 85299040 Country of origin Canada Technical data Note Trade restriction The products are offered exclusively for export outside the EU and the European Economic Area. Dimensions Width 22.5 mm Height 75 mm Depth 107.5 mm 03/07/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/2867555 Wireless module - RAD-ISM-900-RS232-BD - 2867555 Technical data Ambient conditions Ambient temperature (operation) -40 °C ... 70 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Degree of protection IP20 Wireless set Set contents 1 transceiver Wireless path Direction Bi-directional Frequency range 902 MHz ... 928 MHz Transmission power 1W Number of channel groups 4 Number of channels per group 63 Serial interface Designation RS-232 Data rate 1,2 / 2,4 / 9,6 / 19,2 / 38,4 kBit/s Connection method D-SUB 9 (socket) File format/coding Asynchronous Data flow control/protocols RTS/CTS Supply Supply voltage 24 V DC Supply voltage range 9 V DC ... 30 V DC Typical current consumption 110 mA Max. current consumption 180 mA General Mounting position any Assembly instructions on standard DIN rail NS 35 in accordance with EN 60715 Housing material Polyamide PA non-reinforced Conformance FCC Directive, Part 15.247 ISC Directive RSS 210 UL, USA / Canada Class I, Div. 2, Groups A, B, C, D Standards and Regulations Electromagnetic compatibility FCC Part 15.247 / ISC RSS 210 Conformance FCC Directive, Part 15.247 ISC Directive RSS 210 UL, USA / Canada Class I, Div. 2, Groups A, B, C, D 03/07/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/2867555 Wireless module - RAD-ISM-900-RS232-BD - 2867555 Technical data Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 4 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Connection method Screw connection Stripping length 8 mm Screw thread M3 Classifications eCl@ss eCl@ss 4.0 27250312 eCl@ss 4.1 27250312 eCl@ss 5.0 27242208 eCl@ss 5.1 27242208 eCl@ss 6.0 27242208 eCl@ss 7.0 27242208 ETIM ETIM 2.0 EC000310 ETIM 3.0 EC000310 ETIM 4.0 EC000310 ETIM 5.0 EC000310 UNSPSC UNSPSC 6.01 30211506 UNSPSC 7.0901 43223108 UNSPSC 11 39121008 UNSPSC 12.01 43223108 UNSPSC 13.2 43223108 Drawings 03/07/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/2867555 Wireless module - RAD-ISM-900-RS232-BD - 2867555 Application drawing Block diagram Network Repeater slave Repeater slave Repeater slave +24 V 1 Slave Power GND 2 A 3 B 4 2 = Tx 3 = Rx 5 = GND 7 = RTS 8 = CTS 1, 4, 6, 9 = n.c. Master RF-Link RS 232 µC RF Slave Repeater slave Slave Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/07/2016   Page 4 / 4
