FO converters - FL MC 2000E LC - 2891056
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

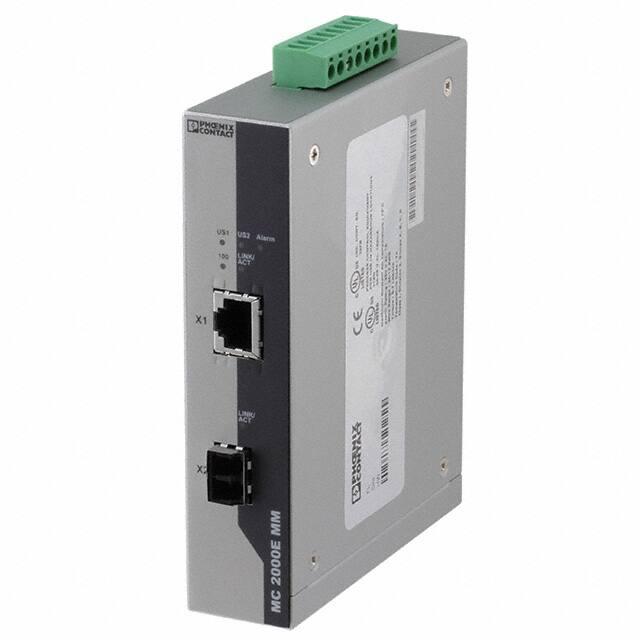

FO converter with LC duplex fiber optic connection (1300 nm), for converting 100Base-TX to multi-mode
fiberglass. Auto MDI(X) function. Comprehensive link diagnostics. DIN rail mountable, 12 ... 57 V DC supply.
Meets IEC 61850-3 and IEEE 1613 standards.
Your advantages
Network structure according to IEC 61850
IEEE 1613
Auto MDI/MDI-X switch-over
Link fault pass through (LFPT) function for easy connection monitoring
Data transfer rates of 100 Mbps
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356763141
Weight per Piece (excluding packing)
480.000 g
Custom tariff number
85176200
Country of origin
Taiwan
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
30 mm
Height
130 mm
09/10/2019 Page 1 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Technical data
Dimensions
Depth
100 mm
Ambient conditions
Ambient temperature (operation)
-40 °C ... 75 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)
5 % ... 95 % (non-condensing)
Altitude
4850 m
Degree of protection
IP20
Noise immunity
IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
General
Electrical isolation
VCC // FE // Ethernet
Latency
700 ns (Pass-through mode, 100 Mbps, static)
Test voltage data interface/power supply
1500 V AC (500 V AC, 1 minute)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Noise emission
EN 61000-6-4
Mounting position
On horizontal DIN rail NS 35 in acc. with EN 60715
Net weight
315 g
Housing material
Aluminum
Conformance
CE-compliant
UL, USA/Canada
Class I, Div. 2, Groups A, B, C, D
Power supply
Nominal supply voltage
24 V DC
48 V DC
Supply voltage range
12 V DC ... 57 V DC
Typical current consumption
110 mA (24 V DC)
Connection method
Plug-in screw terminal block (COMBICON), redundancy possible
Conductor cross section flexible max.
2.50 mm²
Conductor cross section flexible min.
0.20 mm²
Conductor cross section solid max.
2.50 mm²
Conductor cross section solid min.
0.20 mm²
Max. AWG conductor cross section, flexible
12
Min. AWG conductor cross section, flexible
24
Conductor cross section AWG max.
12
Conductor cross section AWG min.
24
Serial interface
09/10/2019 Page 2 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Technical data
Serial interface
Interface 1
Ethernet interface, 100Base-Tx in acc. with IEEE 802.3u
No. of ports
1
Connection method
RJ45 socket, shielded
Transmission medium
Copper
Transmission length
100 m (twisted pair, shielded)
Link through
Link fault pass through
MDI-/MDI-X switchover
Auto-MDI(X)
Signal LEDs
LNK/ACT, 100
Data flow control/protocols
IEC 61850-3, IEEE 1613
Serial transmission speed
100 Mbps
Optical interface FO
Wavelength
1310 nm
Transmission length incl. 3 dB system reserve
8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800)
Transmission medium
Multi-mode fiberglass
GI-HCS fiber
Connection method
LC duplex
Digital outputs
Output name
Relay output
Output description
Alarm output
Number of outputs
1
Contact type
N/C contact
Maximum switching voltage
≤ 250 V AC
Max. switching current
1A
Standards and Regulations
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Type of test
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result
5g, 150 Hz, Criterion 3
Type of test
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result
30g, 11 ms half-sine shock pulse
Noise emission
EN 61000-6-4
Noise immunity
IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
Standards/regulations
EN 61000-4-2
EN 61000-4-3
09/10/2019 Page 3 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Technical data
Standards and Regulations
EN 61000-4-4
Comments
Criterion A
Standards/regulations
EN 61000-4-5
EN 61000-4-6
Shock
300 m/s², 11 ms (IEC 60068-2)
Conformance
CE-compliant
UL, USA/Canada
Class I, Div. 2, Groups A, B, C, D
Environmental Product Compliance
Lead 7439-92-1
China RoHS
Environmentally Friendly Use Period = 10;
For details about hazardous substances go to tab “Downloads”, Category
“Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 4.0
27230200
eCl@ss 4.1
27230200
eCl@ss 5.0
27230200
eCl@ss 5.1
27230200
eCl@ss 6.0
19179200
eCl@ss 7.0
19179290
eCl@ss 8.0
19179290
eCl@ss 9.0
19170114
ETIM
ETIM 3.0
EC000310
ETIM 4.0
EC000310
ETIM 5.0
EC001467
ETIM 6.0
EC001467
ETIM 7.0
EC001467
UNSPSC
UNSPSC 6.01
30211506
UNSPSC 7.0901
39121008
UNSPSC 11
39121008
UNSPSC 12.01
39121008
UNSPSC 13.2
43222604
09/10/2019 Page 4 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / EAC / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
mm²/AWG/kcmil
30-14
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
mm²/AWG/kcmil
30-14
FILE E 140324
FILE E 140324
EAC
EAC-Zulassung
EAC
RU *DE.A*30.B.01735
cULus Listed
Accessories
Accessories
Patch cable
09/10/2019 Page 5 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Accessories
Patch cable - FL CAT5 PATCH 0,3 - 2832250
Patch cable, CAT5, assembled, 0.3 m
Patch cable - FL CAT5 PATCH 0,5 - 2832263
Patch cable, CAT5, assembled, 0.5 m
Patch cable - FL CAT5 PATCH 1,0 - 2832276
Patch cable, CAT5, assembled, 1 m
Patch cable - FL CAT5 PATCH 1,5 - 2832221
Patch cable, CAT5, assembled, 1.5 m
Patch cable - FL CAT5 PATCH 2,0 - 2832289
Patch cable, CAT5, assembled, 2 m
09/10/2019 Page 6 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Accessories
Patch cable - FL CAT5 PATCH 3,0 - 2832292
Patch cable, CAT5, assembled, 3 m
Patch cable - FL CAT5 PATCH 5,0 - 2832580
Patch cable, CAT5, assembled, 5 m
Patch cable - FL CAT5 PATCH 7,5 - 2832616
Patch cable, CAT5, assembled, 7.5 m
Patch cable - FL CAT5 PATCH 10,0 - 2832629
Patch cable, CAT5, assembled, 10 m
Safety locking
Port Guard Security Element - FL PATCH GUARD - 2891424
Lockable security element
09/10/2019 Page 7 / 8
https://www.phoenixcontact.com/us/products/2891056
FO converters - FL MC 2000E LC - 2891056
Accessories
Key - FL PATCH GUARD KEY - 2891521
Key for lockable security element
