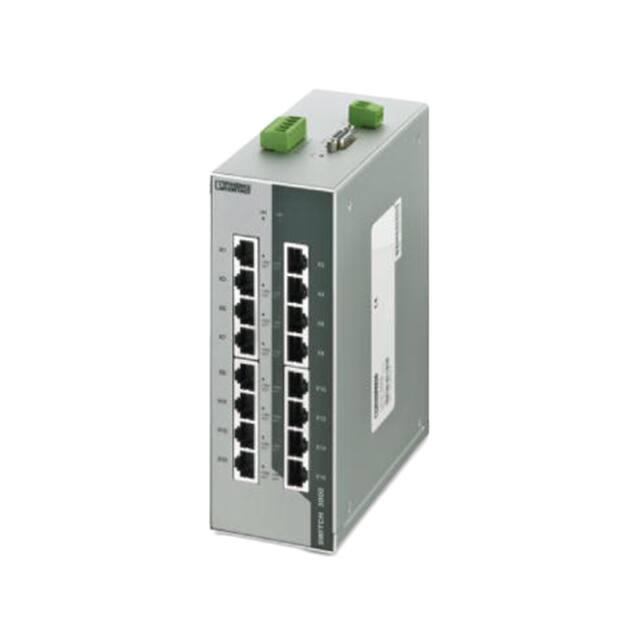

https://www.phoenixcontact.com/us/products/2891059 Industrial Ethernet Switch - FL SWITCH 3016T - 2891059 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Managed Ethernet switch with 16 RJ45 ports at 10/100 Mbps and operating temperature of -40°C ... +75°C Product description FL SWITCH 3000 managed industrial Ethernet switches combine extensive network performance and securtiy features with complete IEEE redundancy (STP/RSTP/MST) and 15 ms recovery time extended ring redundancy. Unique web customization provides a simplified user interface for today's applications and scalable functionality for future needs. A comprehensive mix of fiber optic and copper port connections meets a wide range of applications.   Product Features  Unique cleanup function hides unused configuration pages, reducing complexity, maintenance and startup times  Auto negotiation and autocrossing detection simplifies installation and setup  Security options with cable locking  Secure web-based and SNMP-based management  Extensive web diagnostics with configurable LED and remote alarm contacts  RJ45 ports support a transmission speed of 10/100 Mbps; fiber optic ports support 100 Mbps  -40 to 75°C and -10 to 60°C ambient temperature versions Key commercial data Packing unit 1 pc Weight per Piece (excluding packing) 1750.0 GRM Custom tariff number 85176200 Country of origin Taiwan Technical data Dimensions Width 66 mm Height 173 mm Depth 140 mm Ambient conditions Degree of protection IP20 Ambient temperature (operation) -40 °C ... 75 °C 07/01/2014   Page 1 / 4 https://www.phoenixcontact.com/us/products/2891059 Industrial Ethernet Switch - FL SWITCH 3016T - 2891059 Technical data Ambient conditions Ambient temperature (storage/transport) -40 °C ... 85 °C Permissible humidity (operation) 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing) Air pressure (operation) 57 kPa ... 108 kPa (up to 4850 m above mean sea level) Air pressure (storage/transport) 57 kPa ... 108 kPa (up to 4850 m above mean sea level) Noise immunity EN 61000-6-2:2005 Interfaces Interface 1 Ethernet (RJ45) No. of ports 16 (RJ45 ports) Connection method RJ45 Note on connection method Auto negotiation and autocrossing Transmission physics Ethernet in RJ45 twisted pair Transmission speed 10/100 MBit/s (with autonegotiation) Transmission length 100 m Function Basic functions Managed switch Status and diagnostic indicators LEDs: US1, US2 (redundant voltage supply), link and activity per port Network expansion parameters Cascading depth Network, linear, and star structure: any Maximum conductor length (twisted pair) 100 m Supply voltage Supply voltage 24 V DC (redundant) Residual ripple 3.6 VPP (within the permitted voltage range) Supply voltage range 12 V DC ... 48 V DC Typical current consumption 312 mA (24 V DC) Inrush surge current 6.4 A (200 µs) General Mounting type NS 35 (IEC 60715) DIN rail Type AX Block design Weight 1240 g Housing material Aluminum Noise emission EN 61000-6-4 Mechanical tests Type of test Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Test result 30g, 11 ms half-sine shock pulse 07/01/2014   Page 2 / 4 https://www.phoenixcontact.com/us/products/2891059 Industrial Ethernet Switch - FL SWITCH 3016T - 2891059 Technical data Mechanical tests Type of test Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 Test result 5g, 150 Hz, Criterion 3 Type of test Free fall in acc. with IEC 60068-2-32 Test result 1m Conformity with EMC directives Developed in acc. with standard IEC 61000-6.2 Test standard IEC 61000-4-2 (ESD) Test result Criterion B Test standard IEC 61000-4-3 (immunity to radiated interference) Test result Criterion A Test standard IEC 61000-4-4 (burst) Test result Criterion A Test standard IEC 61000-4-5 (surge) Test result Criterion B Test standard IEC 61000-4-6 (immunity to conducted interference) Test result Criterion A Test standard IEC 61000-4-8 (immunity to magnetic fields) Test result Criterion A Test standard EN 55022 (emitted interference) Test result Class A Classifications eCl@ss eCl@ss 4.0 27250501 eCl@ss 4.1 27250501 eCl@ss 5.0 19030117 eCl@ss 5.1 19030117 eCl@ss 6.0 19170106 eCl@ss 7.0 19170106 eCl@ss 8.0 19170106 ETIM ETIM 3.0 EC000734 ETIM 4.0 EC000734 ETIM 5.0 EC000734 07/01/2014   Page 3 / 4 https://www.phoenixcontact.com/us/products/2891059 Industrial Ethernet Switch - FL SWITCH 3016T - 2891059 Classifications UNSPSC UNSPSC 6.01 43172901 UNSPSC 7.0901 43201404 UNSPSC 11 43172015 UNSPSC 12.01 43201410 UNSPSC 13.2 43201410 Phoenix Contact 2014 © - all rights reserved http://www.phoenixcontact.com 07/01/2014   Page 4 / 4
