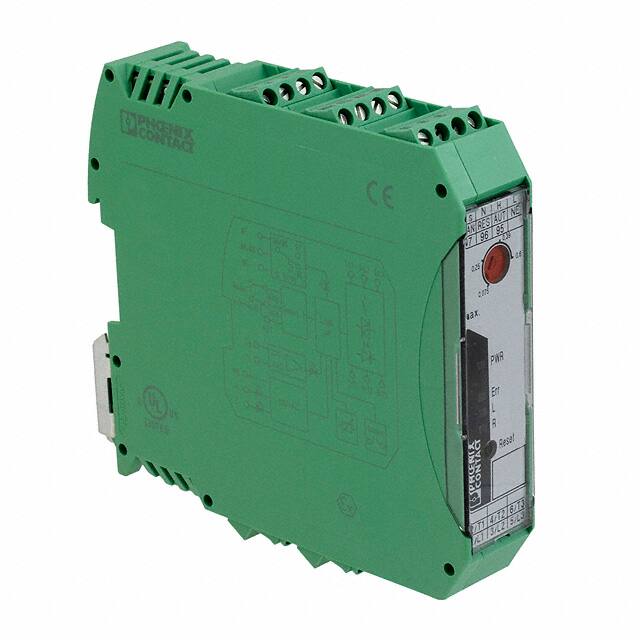

https://www.phoenixcontact.com/pi/products/2900422 Hybrid motor starter - ELR H5-IES-SC-230AC/500AC-9 - 2900422 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Hybrid motor starter for reversing 3~ AC motors up to 500 V AC and 9 A output current, with 230 V AC control voltage, adjustable overload shutdown and emergency stop function to SIL 3/PL e Illustration shows the 24 V design Why buy this product ■ ■ ■ ■ ■ ■ ■ 22.5 mm wide Safety level according to IEC 61508-1: SIL 3, ISO 13849: PL e Reduction in wiring Long service life Space saving 3-phase loop bridges Bimetal function can be set up to 9 A Key Commercial Data Packing unit 1 STK GTIN Technical data Dimensions Width 22.5 mm Height 99 mm Depth 114.5 mm Ambient conditions Ambient temperature (operation) -25 °C ... 70 °C (observe derating) Ambient temperature (storage/transport) -40 °C ... 80 °C Degree of protection IP20 Device supply Rated control circuit supply voltage US 230 V AC (50/60 Hz) 03/10/2016   Page 1 / 8 https://www.phoenixcontact.com/pi/products/2900422 Hybrid motor starter - ELR H5-IES-SC-230AC/500AC-9 - 2900422 Technical data Device supply Control supply voltage range 85 V AC ... 253 V AC Rated control supply current IS 4 mA Protective circuit Surge protection Input data Input name Control input right/left Rated actuating voltage UC 230 V AC Voltage range 85 V AC ... 253 V AC Rated actuating current IC 7 mA Switching threshold 44 V AC (“0” signal) 85 V AC (“1” signal) Switching level < 5 V AC (For EMERGENCY STOP) Typical turn-off time < 70 ms Output data load output Output name AC output Rated operating voltage Ue 500 V AC Operating voltage range 42 V AC ... 550 V AC Mains frequency 50 Hz 60 Hz Load current range 1.5 A ... 9 A (see to derating) Trigger characteristic in acc. with IEC 60947 Class 10A Cooling time 20 min. (for auto reset) Rated operating current at AC-51 9A Rated operating current at AC-53a 6.5 A Leakage current 0 mA Protective circuit Surge protection Output data reply output Output name Acknowledge output Note Confirmation: floating change-over contact, signal contact Contact type 1 PDT Switching capacity according to IEC 60947-5-1 3 A (230 V, AC15) 2 A (24 V, DC13) Overspeed tripping Operate threshold > 45 A Response time
