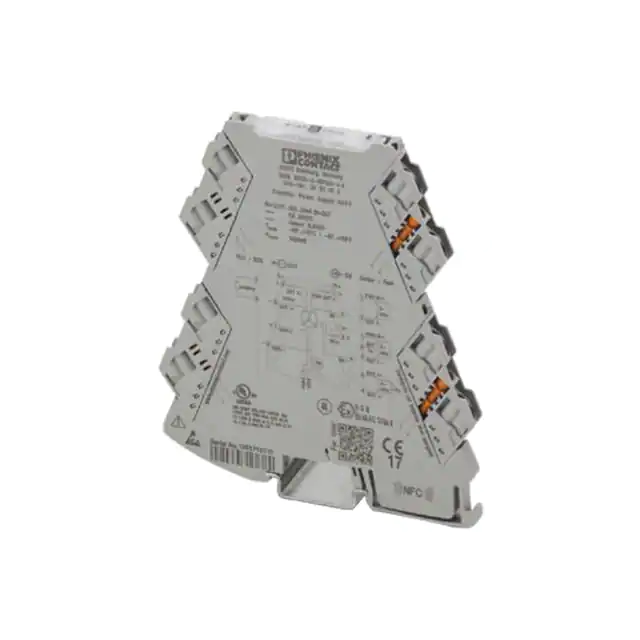

https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) 3-way repeater power supply with plug-in connection technology. HART-transparent, input signal 0(4)...20 mA, output signal 0(4)...20 mA. The device can be used in both isolator and repeater power supply operation. Screw connection technology Product Description The repeater power supply with plug-in connection technology supplies the transmitter in the field and electrically isolates the input signal from the output signal. HART data protocols can be transmitted bidirectionally. The device can be used in both isolator and repeater power supply operation. Electrically isolated 0 ... 20 mA or 4 ... 20 mA standard analog signals are available on the input and output sides with a maximum output load of 600 Ω. The measuring transducer supports fault monitoring and NFC communication. Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356651981 Weight per Piece (excluding packing) 80.000 g Custom tariff number 85437090 Country of origin Germany Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area Dimensions Width 6.2 mm Height 109.81 mm Depth 119.2 mm Ambient conditions 07/04/2020   Page 1 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Technical data Ambient conditions Ambient temperature (operation) -40 °C ... 70 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Maximum altitude ≤ 2000 m Permissible humidity (operation) 5 % ... 95 % (non-condensing) Degree of protection IP20 (not assessed by UL) Noise immunity EN 61000-6-2 When being exposed to interference, there may be minimal deviations. Input data Description of the input Current input (sensor circuit) Number of inputs 1 Current input signal 4 mA ... 20 mA (repeater power supply and isolator operation) 0 mA ... 20 mA (isolator operation) Input resistance current input approx. 68 Ω (+ 0.7 V for test diode) Transmitter supply voltage > 19.5 V Output data Output name Current output Number of outputs 1 Current output signal 4 mA ... 20 mA (repeater power supply and isolator operation) 0 mA ... 20 mA (isolator operation) Max. output current 24 mA Load/output load current output ≤ 600 Ω (at 20 mA) Ripple < 20 mVPP (at 600 Ω) Transmission Behavior 1:1 to input signal Power supply Nominal supply voltage 24 V DC Supply voltage range 9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) Typical current consumption 25 mA (at 24 V DC and in isolator operation) 50 mA (at 24 V DC and in repeater power supply operation) 55 mA (at 12 V DC and in isolator operation) 110 mA (at 12 V DC and in repeater power supply operation) Power consumption ≤ 1400 mW (at IOUT = 20 mA, 9.6 V DC, 600 Ω load) Connection data Connection method Screw connection Stripping length 10 mm 07/04/2020   Page 2 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Technical data Connection data Screw thread M3 Conductor cross section solid 0.2 mm² ... 1.5 mm² (with ferrule) 0.14 mm² ... 2.5 mm² (without ferrule) Conductor cross section flexible 0.14 mm² ... 2.5 mm² Conductor cross section AWG 24 ... 12 (flexible) Torque 0.5 Nm ... 0.6 Nm General No. of channels 1 Maximum transmission error 0.05 % (of final value in repeater power supply operation) 0.1 % (of final value in isolator operation) Maximum temperature coefficient 0.0075 %/K Temperature coefficient, typical 0.0075 %/K Limit frequency (3 dB) > 1.75 kHz (typ.) Step response (10-90%) < 200 µs (typ.) Protective circuit Transient protection Electrical isolation Reinforced insulation in accordance with IEC 61010-1 Overvoltage category II Degree of pollution 2 Rated insulation voltage 300 V (effective) Test voltage, input/output/supply 3 kV (50 Hz, 1 min.) Electromagnetic compatibility Conformance with EMC directive Noise emission EN 61000-6-4 Noise immunity EN 61000-6-2 When being exposed to interference, there may be minimal deviations. Color gray Housing material PBT Mounting position any Assembly instructions The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 2 Data communication (bypass) Limit frequency (3 dB) approx. 1.75 kHz EMC data Designation Electromagnetic RF field Standards/regulations EN 61000-4-3 07/04/2020   Page 3 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Technical data EMC data Designation Fast transients (burst) Standards/regulations EN 61000-4-4 Designation Conducted interferences Standards/regulations EN 61000-4-6 Standards and Regulations Electromagnetic compatibility Conformance with EMC directive Noise emission EN 61000-6-4 Standards/regulations EN 61000-4-2 Designation Electromagnetic RF field Standards/regulations EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 Designation Conducted interferences Standards/regulations EN 61000-4-6 Electrical isolation Reinforced insulation in accordance with IEC 61010-1 Conformance/approvals Designation CE Identification CE-compliant Designation ATEX Identification  II 3 G Ex ec IIC T4 Gc Certificate BVS 19 ATEX E 047 X Designation IECEx Identification Ex ec IIC T4 Gc Certificate IECEx BVS 19.0041X Designation UL, USA/Canada Identification UL 508 Listed Class I, Div. 2, Groups A, B, C, D T5 Class I, Zone 2, Group IIC T5 Designation Shipbuilding approval Identification C, EMC2 Certificate DNV GL 14445-15HH Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” 07/04/2020   Page 4 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Drawings Block diagram Pictogram 07/04/2020   Page 5 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Classifications eCl@ss eCl@ss 4.0 27210100 eCl@ss 4.1 27210100 eCl@ss 5.0 27210100 eCl@ss 5.1 27210100 eCl@ss 6.0 27210100 eCl@ss 7.0 27210120 eCl@ss 8.0 27210120 eCl@ss 9.0 27210120 ETIM ETIM 4.0 EC002653 ETIM 5.0 EC002653 ETIM 6.0 EC002653 ETIM 7.0 EC002653 UNSPSC UNSPSC 6.01 30211506 UNSPSC 7.0901 39121008 UNSPSC 11 39121008 UNSPSC 12.01 39121008 UNSPSC 13.2 39121008 UNSPSC 18.0 39121008 UNSPSC 19.0 39121008 UNSPSC 20.0 39121008 UNSPSC 21.0 39121008 Approvals Approvals Approvals GL / UL Listed / cUL Listed / cULus Listed Ex Approvals ATEX / UL Listed / cUL Listed / cULus Listed Approval details 07/04/2020   Page 6 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Approvals GL    https://approvalfinder.dnvgl.com/  14445-15 HH UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 238705 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 238705 cULus Listed       Accessories Accessories Communication module Communication module - MINI MCR-2-V8-MOD-RTU - 2905634 Eight MINI Analog Pro signal conditioners and measuring transducers can be quickly and easily integrated into a Modbus/RTU network via a communication adapter.     Communication module - MINI MCR-2-V8-MOD-TCP - 2905635 Eight MINI Analog Pro signal conditioners and measuring transducers can be quickly and easily integrated into a Modbus/TCP network via a communication adapter.     07/04/2020   Page 7 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories Communication module - MINI MCR-2-V8-PB-DP - 2905636 Eight MINI Analog Pro signal conditioners and measuring transducers can be quickly and easily integrated into a PROFIBUS DP network via a communication adapter.     Device marking Marker for end clamp - UCT-EM (30X5) - 0801505 Marker for end clamp, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped into marker carrier, lettering field size: 30 x 5 mm, Number of individual labels: 24     Marker for end clamp - UCT-EM (30X5) YE - 0830340 Marker for end clamp, Sheet, yellow, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped into marker carrier, lettering field size: 30 x 5 mm, Number of individual labels: 24     Plastic label - UC-EMLP (15X5) - 0819301 Plastic label, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 10     Plastic label - UC-EMLP (15X5) YE - 0822615 Plastic label, Sheet, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 10     07/04/2020   Page 8 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories Plastic label - UC-EMLP (15X5) SR - 0828095 Plastic label, Sheet, silver, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 10     Plastic label - US-EMLP (15X5) - 0828790 Plastic label, Card, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     Plastic label - US-EMLP (15X5) YE - 0828873 Plastic label, Card, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     Plastic label - US-EMLP (15X5) SR - 0828874 Plastic label, Card, silver, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     DIN rail connector DIN rail bus connectors - ME 6,2 TBUS-2 1,5/5-ST-3,81 GY - 2695439 DIN rail connector (TBUS), 5-pos., for bridging the supply voltage, can be snapped onto NS 35/... DIN rails according to EN 60715     07/04/2020   Page 9 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories DIN rail bus connectors - ME 6,2 TBUS-2 1,5/5-ST-3,81 GN - 2869728 DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.     Evaluation unit Monitoring module - MINI MCR-2-FM-RC - 2904504 Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Screw connection technology, standard configuration     Monitoring module - MINI MCR-2-FM-RC-PT - 2904508 Fault monitoring module with plug-in connection technology for evaluating and reporting group errors from the FM system and for monitoring the supply voltages. Error message via N/C contact. Push-in connection technology, standard configuration     Labeled device marker Marker for end clamp - UCT-EM (30X5) CUS - 0801589 Marker for end clamp, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snapped into marker carrier, lettering field size: 30 x 5 mm, Number of individual labels: 24     Marker for end clamp - UCT-EM (30X5) YE CUS - 0830348 Marker for end clamp, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: snapped into marker carrier, lettering field size: 30 x 5 mm, Number of individual labels: 24     07/04/2020   Page 10 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories Plastic label - UC-EMLP (15X5) CUS - 0824550 Plastic label, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm     Plastic label - UC-EMLP (15X5) YE CUS - 0824551 Plastic label, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm     Plastic label - UC-EMLP (15X5) SR CUS - 0828099 Plastic label, can be ordered: by sheet, silver, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 10     Plastic label - US-EMLP (15X5) CUS - 0830076 Plastic label, can be ordered: By card, white, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     Plastic label - US-EMLP (15X5) YE CUS - 0830077 Plastic label, can be ordered: By card, yellow, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     07/04/2020   Page 11 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories Plastic label - US-EMLP (15X5) SR CUS - 0830078 Plastic label, can be ordered: By card, silver, labeled according to customer specifications, mounting type: adhesive, lettering field size: 15 x 5 mm, Number of individual labels: 189     Power module Power terminal block - MINI MCR-2-PTB - 2902066 Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Screw connection technology     Power terminal block - MINI MCR-2-PTB-PT - 2902067 Power terminal with plug-in connection technology for delivering the supply voltage to the DIN rail connector. Monitoring of the supply voltages in combination with the fault monitoring module. Push-in connection technology     Power supply Power supply unit - MINI-SYS-PS-100-240AC/24DC/1.5 - 2866983 Primary-switched MINI POWER supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A     Power supply unit - MINI-PS-100-240AC/24DC/1.5/EX - 2866653 Primary-switched power supply MINI POWER for DIN rail mounting, input: 1-phase, output: 24 V DC/1,5 A, for the potentially explosive area     07/04/2020   Page 12 / 13 https://www.phoenixcontact.com/us/products/2902014 Repeater power supply - MINI MCR-2-RPSS-I-I - 2902014 Accessories Programming cable Cable adapter - GW HART USB MODEM - 1003824 USB HART modem cable for communication between a PC and HART devices, cable length: 1m.     System adapter System adapter - MINI MCR-2-V8-FLK 16 - 2901993 Eight MINI Analog Pro signal conditioners and measuring transducers can be connected to a controller with minimal cabling effort and without any errors using system adapters and system cabling.     Terminal marking Marker strip - SK 5,0 WH:REEL - 0805221 Marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, for terminal block width: 5 mm, lettering field size: continuous x 5 mm, Number of individual labels: 90000     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 07/04/2020   Page 13 / 13
