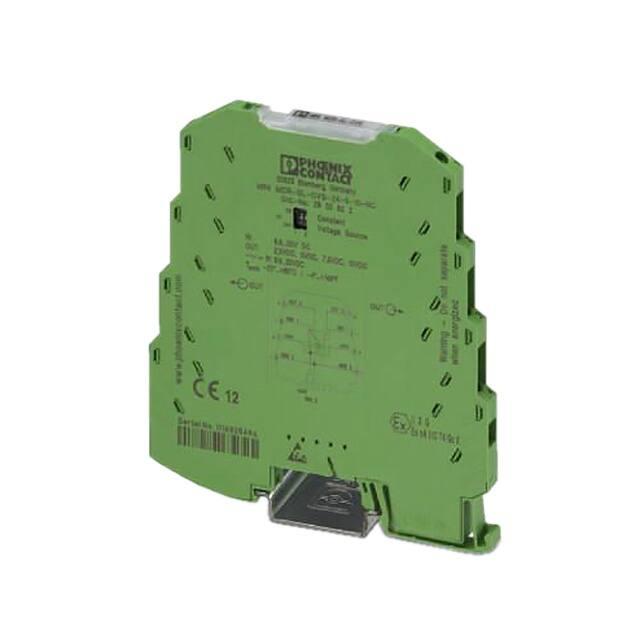

https://www.phoenixcontact.com/us/products/2902822 Constant voltage source - MINI MCR-SL-CVS-24-5-10-NC - 2902822 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Constant voltage source, input voltage 9.6 - 30 V DC, output voltage 10 V, 7.5 V, 5 V, 2.5 V DC, electrically isolated, can be configured via DIP switches, screw connection technology, standard configuration Product Description The 6.2 mm wide configurable MINI MCR-SL-CVS-24-10-5 constant voltage source is used to generate high precision constant voltages. The input voltage can fall between 9.6 V DC and 30 V DC. The DIP switches accessible from the side of the housing enable configuration of the 10 V DC, 5 V DC, 7.5 V DC, and 2.5 V DC output voltages. The input voltage can be applied either via connection terminal blocks on the modules or in conjunction with the DIN rail connector. Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 80.0 g Custom tariff number 85437090 Country of origin Germany Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area Dimensions Width 6.2 mm Height 93.1 mm Depth 102.5 mm Ambient conditions Ambient temperature (operation) -20 °C ... 65 °C Ambient temperature (storage/transport) -40 °C ... 85 °C 03/15/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/2902822 Constant voltage source - MINI MCR-SL-CVS-24-5-10-NC - 2902822 Technical data Ambient conditions Degree of protection IP20 Input data Voltage input signal 9.6 V DC ... 30 V DC Output data Configurable/programmable Yes, preconfigured Max. output voltage 10 V DC 7.5 V DC 5 V DC 2.5 V DC Output current ≤ 30 mA Short-circuit current approx. 32 mA Power supply Nominal supply voltage 24 V DC Supply voltage range 9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) Max. current consumption < 25 mA (10 V output with 30 mA load at 24 V DC IN) < 65 mA (10 V output with 30 mA load at 9.6 V DC IN) < 50 mA (10 V voltage output with 30 mA load at 12 V DC IN) < 20 mA (10 V voltage output with 30 mA load at 30 V DC IN) Power consumption < 600 mW (at 24 V IN) < 624 mW (at 9.6 V IN) < 564 mW (At 12 V IN) < 540 mW (at 30 V IN) Connection data Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 12 Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Stripping length 12 mm Screw thread M3 General Maximum transmission error ≤ 0.1 % (of final value) 03/15/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/2902822 Constant voltage source - MINI MCR-SL-CVS-24-5-10-NC - 2902822 Technical data General ≤ 0.5 % (Without adjustment) Maximum temperature coefficient < 0.01 %/K Temperature coefficient, typical < 0.002 %/K Setting range comparison ± 300 mV Electrical isolation Basic insulation according to EN 61010 Overvoltage category II Degree of pollution 2 Rated insulation voltage 50 V AC/DC Test voltage input/output 1.5 kV (50 Hz, 1 min.) Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Noise emission EN 61000-6-4 Noise immunity EN 61000-6-2 When being exposed to interference, there may be minimal deviations. Color green Housing material PBT Mounting position any Assembly instructions The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. Conformance CE-compliant ATEX  II 3 G Ex nA IIC T4 Gc X UL, USA / Canada UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC Certificate of classification DNV GL 14085-15HH Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Noise emission EN 61000-6-4 Designation Electromagnetic RF field Standards/regulations EN 61000-4-3 EN 61000-4-4 Designation Conducted interferences Standards/regulations EN 61000-4-6 Electrical isolation Basic insulation according to EN 61010 Conformance CE-compliant ATEX  II 3 G Ex nA IIC T4 Gc X UL, USA / Canada UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 03/15/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/2902822 Constant voltage source - MINI MCR-SL-CVS-24-5-10-NC - 2902822 Technical data Standards and Regulations Class I, Zone 2, Group IIC Classifications eCl@ss eCl@ss 4.0 27210107 eCl@ss 4.1 27210107 eCl@ss 5.0 27210107 eCl@ss 5.1 27210107 eCl@ss 6.0 27210107 eCl@ss 7.0 27210107 eCl@ss 8.0 27049002 eCl@ss 9.0 27040701 ETIM ETIM 3.0 EC001485 ETIM 4.0 EC001485 ETIM 5.0 EC002540 UNSPSC UNSPSC 6.01 30211506 UNSPSC 7.0901 39121008 UNSPSC 11 39121008 UNSPSC 12.01 39121008 UNSPSC 13.2 39121008 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / GL / cULus Listed Ex Approvals ATEX / UL Listed / cUL Listed / cULus Listed 03/15/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/2902822 Constant voltage source - MINI MCR-SL-CVS-24-5-10-NC - 2902822 Approvals Approvals submitted Approval details UL Listed  cUL Listed  EAC  GL  cULus Listed  Drawings Block diagram Dimensional drawing 93,1 + 1 – 2 + 3 – 4 OUT U GND 1 +24V 6,2 OUT OUT U 5 + GND 1 6 – +24V GND 2 7 + GND 2 8 – 102,5 OUT +24V GND 2 Zone 2 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/15/2016   Page 5 / 5
