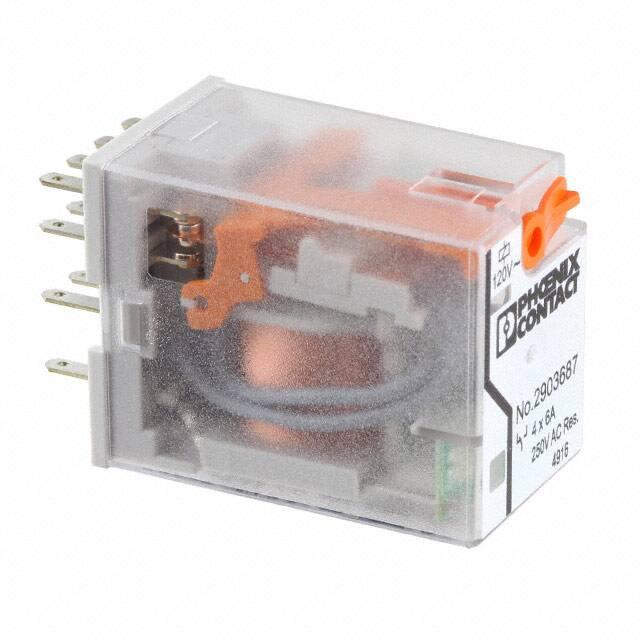

https://www.phoenixcontact.com/us/products/2903687 Single relay - REL-IR4/L-120AC/4X21 - 2903687 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug-in industrial relay with power contacts, 4 PDTs, test key, status LED, mechanical switch position indicator, coil voltage: 120 V AC Key Commercial Data Packing unit 1 pc Minimum order quantity 10 pc GTIN GTIN 4046356759007 Weight per Piece (excluding packing) 34.000 g Custom tariff number 85364900 Country of origin Poland Technical data Dimensions Width 21.2 mm Height 27.5 mm Depth 35.6 mm Ambient conditions Ambient temperature (operation) -40 °C ... 55 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Degree of protection RT I Coil side Nominal input voltage UN 120 V AC 08/01/2019   Page 1 / 5 https://www.phoenixcontact.com/us/products/2903687 Single relay - REL-IR4/L-120AC/4X21 - 2903687 Technical data Coil side Input voltage range in reference to UN see diagram Mains frequency 50/60 Hz Typical input current at UN 13 mA Typical response time 5 ms ... 15 ms (depending on phase relation) Typical release time range 5 ms ... 20 ms (depending on phase relation) Status display Yellow LED Power dissipation for nominal condition 1.56 W Contact side Contact type 4 PDTs Type of switch contact Single contact Contact material AgNi Maximum switching voltage 250 V AC/DC Minimum switching voltage 5 V (At 24 mA) Min. switching current 5 mA (at 24 V) Maximum inrush current 16 A (20 ms, N/O contact) Limiting continuous current 6A Interrupting rating (ohmic load) max. 144 W (at 24 V DC) 124 W (at 48 V DC) 108 W (at 60 V DC) 52 W (at 110 V DC) 48 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity min. 0.12 W Switching capacity 2 A (at 24 V, DC13) 0.22 A (at 120 V, DC13) 0.11 A (at 250 V, DC13) 1.5 A (at 24 V, AC15) 1.5 A (at 120 V, AC15) 1 A (at 240 V, AC15) Motor load according to UL 508 1/3 HP, 240 V AC General Test voltage relay winding/relay contact 2.5 kVrms (50 Hz, 1 min.) Test voltage PDT/PDT 2 kVrms (50 Hz, 1 min.) Operating mode 100% operating factor Mechanical service life approx. 2x 10 cycles Service life, electrical see diagram 7 08/01/2019   Page 2 / 5 https://www.phoenixcontact.com/us/products/2903687 Single relay - REL-IR4/L-120AC/4X21 - 2903687 Technical data General Mounting position any Connection data Connection method Plug connection Standards and Regulations Connection in acc. with standard CSA Standards/regulations IEC 60664 IEC 61810 Rated insulation voltage 250 V AC Rated surge voltage 2.5 kV Insulation Basic insulation Pollution degree 2 Overvoltage category II Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Classifications eCl@ss eCl@ss 5.0 27371601 eCl@ss 5.1 27371600 eCl@ss 6.0 27371600 eCl@ss 7.0 27371601 eCl@ss 8.0 27371601 eCl@ss 9.0 27371601 ETIM ETIM 2.0 EC001437 ETIM 3.0 EC001437 ETIM 4.0 EC001437 ETIM 5.0 EC001437 ETIM 6.0 EC001437 ETIM 7.0 EC001437 UNSPSC UNSPSC 6.01 30211916 08/01/2019   Page 3 / 5 https://www.phoenixcontact.com/us/products/2903687 Single relay - REL-IR4/L-120AC/4X21 - 2903687 Classifications UNSPSC UNSPSC 7.0901 39121515 UNSPSC 11 39121515 UNSPSC 12.01 39121515 UNSPSC 13.2 39122334 Approvals Approvals Approvals CSA / UL Recognized / cUL Recognized / VDE Zeichengenehmigung / EAC / EAC / cULus Recognized Ex Approvals Approval details CSA    http://www.csagroup.org/services-industries/product-listing/  2554095 UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 172140 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 172140 VDE Zeichengenehmigung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx  40040427 EAC      TR_TS_D_00573_c 08/01/2019   Page 4 / 5 https://www.phoenixcontact.com/us/products/2903687 Single relay - REL-IR4/L-120AC/4X21 - 2903687 Approvals EAC      TR_TS_S_00010_c cULus Recognized       Accessories Additional products Relay base - RIF-2-BPT/4X21 - 2900934 RIF-2... relay base, for industrial relay with 2 or 4 PDTs, push-in connection, plug-in option for input/suppressor modules, for mounting on NS 35/7,5     Relay base - RIF-2-BSC/4X21 - 2900932 RIF-2... relay base, for industrial relay with 2 or 4 changeover contacts, screw connection, plug-in option for input/ interference suppression modules, for mounting on NS 35/7,5     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 08/01/2019   Page 5 / 5
