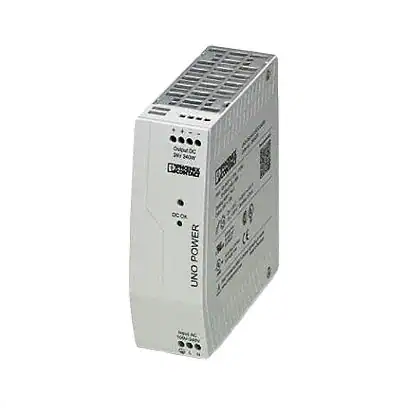

https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Primary-switched UNO power supply for DIN rail mounting, input: single-phase, output: 24 V DC/240 W Product Description UNO POWER power supplies - compact with basic functionality Thanks to their high power density, compact UNO POWER power supplies offer the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency. Why buy this product  Flexible mounting by simply snapping onto the DIN rail  More space in the control cabinet with up to 20 % higher power density  Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W  Outdoor installation, thanks to the wide temperature range from -25°C to +70°C Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356897037 Weight per Piece (excluding packing) 797.700 g Custom tariff number 85044030 Country of origin China Technical data Dimensions Width 45 mm Height 130 mm Depth 125 mm Ambient conditions Degree of protection IP20 12/28/2016   Page 1 / 6 https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Technical data Ambient conditions Ambient temperature (operation) -25 °C ... 70 °C (> 55 °C Derating: 2,5 %/K) Ambient temperature (storage/transport) -40 °C ... 85 °C Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing) Noise immunity EN 61000-6-2:2005 Input data Nominal input voltage range 100 V AC ... 240 V AC Input voltage range 85 V AC ... 264 V AC (< 95 V AC Derating 1 %/V) AC frequency range 45 Hz ... 65 Hz Current consumption 2.3 A (120 V AC) 1.2 A (230 V AC) Inrush surge current < 80 A (typical) Power failure bypass > 10 ms (120 V AC) > 10 ms (230 V AC) Input fuse 5 A (slow-blow, internal) Choice of suitable circuit breakers 6 A ... 16 A (Characteristics B, C, D, K) Type of protection Transient surge protection Protective circuit/component Varistor Output data Nominal output voltage 24 V DC ±1 % Setting range of the output voltage (USet) 24 V DC ... 28 V DC ±1 % Nominal output current (IN) 10 A (-25°C ... 55°C) Derating 55 °C ... 70 °C (2.5%/K) Connection in parallel Yes, for redundancy and increased capacity Connection in series No Control deviation change in load, static 10 % ... 90 % < 2 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage ±10 %) Residual ripple < 50 mVPP (with nominal values) Output power 240 W Typical response time 93 % (for 230 V AC and nominal values) Insulation voltage input/output 4 kV AC (type test) 3 kV AC (routine test) Protection class I (in closed control cabinet) MTBF (IEC 61709, SN 29500) > 562000 h (40°C) 12/28/2016   Page 2 / 6 https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Technical data General Mounting position horizontal DIN rail NS 35, EN 60715 Assembly instructions Alignable: 0 mm horizontally, 30 mm vertically Connection data, input Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 Stripping length 8 mm Screw thread M3 Connection data, output Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 Stripping length 8 mm Screw thread M3 Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Noise immunity EN 61000-6-2:2005 Standards/regulations EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 Standard - Safety of transformers EN 61558-2-16 Standard - Electrical safety EN 60950-1/VDE 0805 (SELV) Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV) Standard – Safety extra-low voltage EN 60950-1 (SELV) and EN 60204 (PELV) Standard - Safe isolation DIN VDE 0100-410 Standard – Limitation of mains harmonic currents EN 61000-3-2 UL approvals UL Listed UL 508 12/28/2016   Page 3 / 6 https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Technical data Standards and Regulations UL/C-UL Recognized UL 60950 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min. Low Voltage Directive Conformance with LV directive 2006/95/EC Approval - requirement of the semiconductor industry with regard to mains voltage dips EN 61000-4-11 Information technology equipment - safety (CB scheme) CB Scheme Drawings Block diagram L active N PFC PE Classifications eCl@ss eCl@ss 4.0 27040702 eCl@ss 4.1 27040702 eCl@ss 5.0 27049002 eCl@ss 5.1 27049002 eCl@ss 6.0 27049002 eCl@ss 7.0 27049002 eCl@ss 8.0 27049002 eCl@ss 9.0 27040701 ETIM ETIM 4.0 EC000599 ETIM 5.0 EC002540 ETIM 6.0 EC002540 UNSPSC UNSPSC 13.2 39121004 Approvals Approvals 12/28/2016   Page 4 / 6 https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Approvals Approvals UL Recognized / UL Listed / cUL Recognized / cUL Listed / EAC / EAC / IECEE CB Scheme / cULus Recognized Ex Approvals UL Listed / cUL Listed / cULus Listed Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 214596 UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 214596 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 EAC      EAC-Zulassung EAC      7500651.22.01.00242 IECEE CB Scheme    http://www.iecee.org/  DK-42444-UL cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   12/28/2016   Page 5 / 6 https://www.phoenixcontact.com/gb/products/2904372 Power supply unit - UNO-PS/1AC/24DC/240W - 2904372 Accessories Accessories Redundancy module Redundancy module - UNO-DIODE/5-24DC/2X10/1X20 - 2905489 Redundancy module, 5 V - 24 V DC, 2 x 10 A, 1 x 20 A.     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/28/2016   Page 6 / 6
