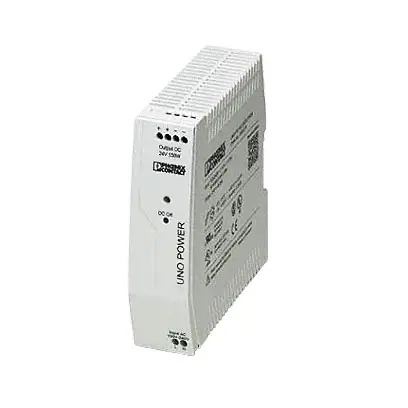

https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Primary-switched UNO power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/150 W Product Description UNO POWER power supplies - compact with basic functionality Thanks to their high power density, compact UNO POWER power supplies offer the ideal solution for loads up to 150 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency. Your advantages  Flexible mounting by simply snapping onto the DIN rail  More space in the control cabinet with up to 20 % higher power density  Maximum energy efficiency, thanks to over 90 % efficiency and extremely low idling losses under 0.3 W  Outdoor installation, thanks to the wide temperature range from -25°C to +70°C Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356897099 Weight per Piece (excluding packing) 600.000 g Custom tariff number 85044030 Country of origin Vietnam Technical data Dimensions Width 37 mm Height 130 mm 09/06/2019   Page 1 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Technical data Dimensions Depth 125 mm Ambient conditions Degree of protection IP20 Ambient temperature (operation) -25 °C ... 70 °C (> 55 °C Derating: 2.5 %/K) Ambient temperature (storage/transport) -40 °C ... 85 °C Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing) Climatic class 3K3 (in acc. with EN 60721) Degree of pollution 2 Input data Nominal input voltage range 100 V AC ... 240 V AC Input voltage range 85 V AC ... 264 V AC Frequency range (fN) 50 Hz ... 60 Hz 10 % Current consumption 1.66 A (100 V AC) 0.68 A (240 V AC) Nominal power consumption 164.7 VA Inrush current < 50 A (typical) Mains buffering time typ. 20 ms (120 V AC) typ. 20 ms (230 V AC) Input fuse 2.5 A (slow-blow, internal) Recommended breaker for input protection 6 A ... 16 A (Characteristics B, C, D, K) Power factor (cos phi) 0.97 Type of protection Transient surge protection Protective circuit/component Varistor Output data Nominal output voltage 24 V DC ±1 % Setting range of the output voltage (USet) 24 V DC ... 28 V DC ±1 % Nominal output current (IN) 6.25 A (-25 °C ... 55 °C) Derating 55 °C ... 70 °C (2.5%/K) Connection in parallel Yes, for redundancy and increased capacity Connection in series No Feedback voltage resistance < 35 V DC Protection against overvoltage at the output (OVP) ≤ 35 V DC Control deviation < 1 % (change in load, static 10 % ... 90 %) < 2 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage ±10 %) Residual ripple < 40 mVPP (with nominal values) 09/06/2019   Page 2 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Technical data Output data Output power 150 W Typical response time 868000 h (40 °C) Mounting position horizontal DIN rail NS 35, EN 60715 Assembly instructions alignable: 0 mm horizontally, 30 mm vertically Connection data, input Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 Stripping length 8 mm Screw thread M3 Connection data, output Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 Stripping length 8 mm Screw thread M3 09/06/2019   Page 3 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Technical data Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Noise immunity EN 61000-6-2:2005 Standards/regulations EN 61000-4-2 Contact discharge 4 kV (Test Level 2) Standards/regulations EN 61000-4-3 Frequency range 80 MHz ... 1 GHz Test field strength 10 V/m (Test Level 3) Frequency range 1.4 GHz ... 2 GHz Test field strength 3 V/m (Test Level 2) Standards/regulations EN 61000-4-4 Comments Criterion B Standards/regulations EN 61000-6-3 EN 61000-4-6 Frequency range 0.15 MHz ... 80 MHz Voltage 10 V (Test Level 3) Standards/regulations EN 61000-4-11 Low Voltage Directive Conformance with LV directive 2006/95/EC Standard - Safety of transformers EN 61558-2-16 Standard - Electrical safety EN 60950-1/VDE 0805 (SELV) Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV) Standard – Safety extra-low voltage EN 60950-1 (SELV) and EN 60204 (PELV) Standard - Safe isolation DIN VDE 0100-410 Standard – Limitation of mains harmonic currents EN 61000-3-2 UL approvals UL/C-UL listed UL 508 UL/C-UL Recognized UL 60950-1 UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) Shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min. Approval - requirement of the semiconductor industry with regard to mains EN 61000-4-11 voltage dips Certificate CB Scheme Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 25; 09/06/2019   Page 4 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Technical data Environmental Product Compliance For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Block diagram Classifications eCl@ss eCl@ss 4.0 27040700 eCl@ss 4.1 27040700 eCl@ss 5.0 27049000 eCl@ss 5.1 27049000 eCl@ss 6.0 27049000 eCl@ss 7.0 27049002 eCl@ss 8.0 27049002 eCl@ss 9.0 27040701 ETIM ETIM 4.0 EC000599 ETIM 5.0 EC002540 ETIM 6.0 EC002540 ETIM 7.0 EC002540 UNSPSC UNSPSC 13.2 39121004 Approvals Approvals 09/06/2019   Page 5 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Approvals Approvals UL Listed / UL Recognized / cUL Recognized / IECEE CB Scheme / cUL Listed / EAC / cULus Recognized / cULus Listed Ex Approvals UL Listed / cUL Listed / cULus Listed Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 214596 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 214596 IECEE CB Scheme    http://www.iecee.org/  DK-42308-UL cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 EAC      RU CDE.A*30.B.01082 cULus Recognized       09/06/2019   Page 6 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Approvals cULus Listed       Accessories Accessories Device circuit breakers Electronic device circuit breaker - CBMC E4 24DC/1-4A NO - 2906031 Multi-channel electronic device circuit breaker for protecting four loads at 24 V DC in the event of overload and short circuit. With electronic locking of the set nominal currents. For installation on DIN rails.     Electronic device circuit breaker - CBMC E4 24DC/1-10A NO - 2906032 Multi-channel electronic device circuit breaker for protecting four loads at 24 V DC in the event of overload and short circuit. With electronic locking of the set nominal currents. For installation on DIN rails.     Device protection Type 3 surge protection device - PLT-SEC-T3-230-FM-UT - 2907919 Type 2/3 surge protection, consisting of protective plug and base element with screw connection. For single-phase power supply network with integrated status indicator and remote signaling. Nominal voltage 230 V AC/DC.     Type 3 surge protection device - PLT-SEC-T3-24-FM-UT - 2907916 Type 3 surge protection, consisting of protective plug and base element, with integrated status indicator and remote signaling for single-phase power supply networks. Nominal voltage 24 V AC/DC.     09/06/2019   Page 7 / 8 https://www.phoenixcontact.com/us/products/2904376 Power supply unit - UNO-PS/1AC/24DC/150W - 2904376 Accessories Redundancy module Redundancy module - UNO-DIODE/5-24DC/2X10/1X20 - 2905489 Redundancy module, 5 V - 24 V DC, 2 x 10 A, 1 x 20 A.     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/06/2019   Page 8 / 8
