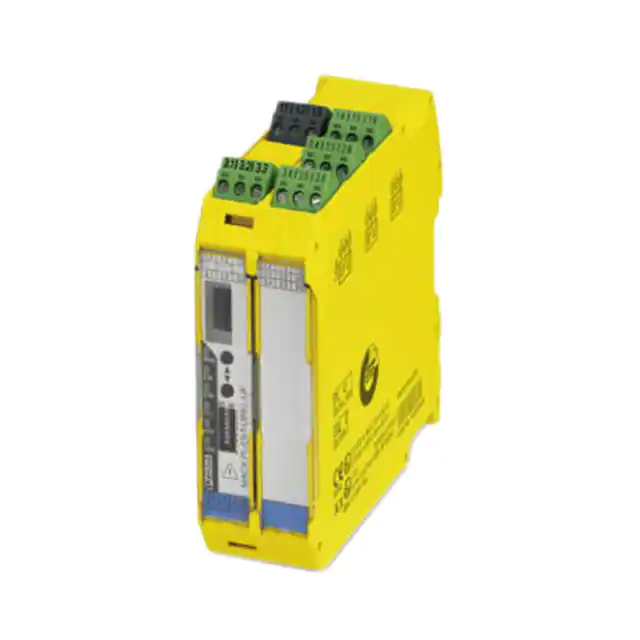

https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Programmable temperature transducer with analog output and 3 limit value relays, intrinsically safe signal inputs, resistance thermometer in 2-, 3-, or 4-wire technology, thermocouples, electrical isolation, wide-range power supply, spring-cage connection, PLd The figure shows a version with a screw connection Product Features     Key commercial data Packing unit 1 pc Custom tariff number 85437090 Country of origin Germany Technical data Note Utilization restriction EMC: class A product, see manufacturer's declaration in the download area Dimensions Width 35 mm Height 99 mm Depth 114.5 mm Ambient conditions Ambient temperature (operation) -20 °C ... 65 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Maximum altitude ≤ 2000 m Permissible humidity (operation) typ. 5 % ... 95 % (non-condensing) 05/18/2015   Page 1 / 6 https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Technical data Ambient conditions Noise immunity EN 61000-6-2 When being exposed to interference, there may be minimal deviations. Shock 15g, according to IEC 60068-2-27 Vibration (operation) 5g, accordance to IEC 60068-2-6 Degree of protection IP20 Input data Sensor types (RTD) that can be used Pt, Ni, Cu sensors: 2, 3, 4-wire Sensor types that can be used (TC) B, E, J, K, N, R, S, T, L, U, CA, DA, A1G, A2G, A3G, MG, LG Temperature measuring range -200 °C ... 850 °C Input signal range 0 Ω ... 50 kΩ Potentiometer resistance range 0 Ω ... 50 kΩ Input signal range -1000 mV ... 1000 mV Output data Current output signal 4 mA ... 20 mA Max. current output signal 22 mA Load/output load current output ≤ 600 Ω (at 20 mA) Behavior in the event of a sensor error according to NE 43 or freely configurable Output name Relay output Output description 1 SIL/PL Contact type 2 PDT Contact material AgSnO2, hard gold-plated Maximum switching voltage 250 V AC (250 V DC) Maximum inrush current 2 A (250 V AC) 2 A (28 V DC) 0.2 A (120 V DC) Mechanical service life 5 1 x 10 cycles Power supply Supply voltage range 24 V ... 230 V AC/DC (-20 %/+10 %, 50/60 Hz) Typical current consumption < 100 mA (24 V DC) Power consumption < 2.4 W Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.2 mm² 05/18/2015   Page 2 / 6 https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Technical data Connection data Conductor cross section flexible max. 1.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 16 Stripping length 8 mm Connection method Push-in connection General Maximum transmission error 0.1 % (e.g. for Pt 100, 300 K span, 4 ... 20 mA) Maximum temperature coefficient 0.01 %/K Step response (0–99%) typ. 1000 ms (With SIL) typ. 700 ms (Without SIL) Status display Green LED (supply voltage, PWR) Red LED, flashing (line, sensor error, ERR) Red LED (module error, ERR) Yellow LED (switching output) Inflammability class according to UL 94 V0 Pollution degree 2 Surge voltage category II Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Housing material PA 66-FR Color yellow Designation Input/output/power supply Electrical isolation 2.5 kV (50 Hz, 1 min., test voltage) Designation Input/output Electrical isolation 375 V (Peak value in accordance with EN 60079-11) Designation Input/power supply Electrical isolation 375 V (Peak value in accordance with EN 60079-11) Designation Input/switching output Electrical isolation 375 V (Peak value in accordance with EN 60079-11) Designation Output/supply Electrical isolation 300 Vrms (Rated insulation voltage (surge voltage category II; pollution degree 2, safe isolation as per EN 61010-1)) Conformance CE-compliant ATEX  II (1) G [Ex ia Ga] IIC  II (1) D [Ex ia Da] IIIC  II 3 G Ex nA nC ic IIC T4 Gc X IECEx [Ex ia Ga] IIC 05/18/2015   Page 3 / 6 https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Technical data General [Ex ia Da] IIIC Ex nA nC ic IIC T4 Gc X UL, USA / Canada UL 508 Listed Functional Safety (SIL) SIL 2 Safety data Max. internal inductance Li negligible Max. internal capacitance Ci 44 nF Max. output voltage Uo 6V Max. output current Io 7.4 mA Max. output power Po 11 mW Group IIC Max. external inductivity Lo 100 mH Max. external capacity Co 1.3 µF Group IIC Max. external inductivity Lo 10 mH Max. external capacity Co 1.7 µF Group IIC Max. external inductivity Lo 1 mH Max. external capacity Co 2.6 µF Group IIC Max. external inductivity Lo 0 mH Max. external capacity Co 10 µF Group IIB Max. external inductivity Lo 100 mH Max. external capacity Co 6.8 µF Group IIB Max. external inductivity Lo 10 mH Max. external capacity Co 9.2 µF Safety-related maximum voltage Um 253 V AC/DC EMC data Designation Electromagnetic RF field Standards/regulations EN 61000-4-3 Typical deviation from the measuring range final value 2% Designation Fast transients (burst) 05/18/2015   Page 4 / 6 https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Technical data EMC data Standards/regulations EN 61000-4-4 Typical deviation from the measuring range final value 2% Designation Conducted interferences Standards/regulations EN 61000-4-6 Typical deviation from the measuring range final value 2% Classifications eCl@ss eCl@ss 5.1 27200206 eCl@ss 6.0 27200206 ETIM ETIM 4.0 EC002653 ETIM 5.0 EC002653 Approvals Approvals Approvals UL Listed / cUL Listed / GL / Functional Safety / cULus Listed Ex Approvals IECEx / ATEX / UL Listed / cUL Listed / EAC Ex / cULus Listed Approvals submitted Approval details UL Listed  05/18/2015   Page 5 / 6 https://www.phoenixcontact.com/us/products/2904912 Temperature measuring transducer - MACX PL-EX-T-UIREL-UPSP - 2904912 Approvals cUL Listed  GL  Functional Safety  cULus Listed  Drawings Block diagram IN Sensor / Field OUT PLC / DCS passive RTD TC - ϑ ϑ + 4.3 4.3 4.2 4.2 4.1 4.1 GND I 3.3 OUT 3.2 + 3.1 Poti ϑ 3.3 3.2 3.6 34 4.3 3.5 31 4.2 3.4 32 4.1 5.3 Zone 0,1,2 Zone 20,21,22 DI 5.3 5.2 5.2 5.1 5.1 NC 1.3 Power 24V ...230V AC/DC 2.6 24 2.5 21 1.2 2.4 22 1.1 Zone 2 1.6 14 1.5 11 DI 1.4 12 Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 05/18/2015   Page 6 / 6
