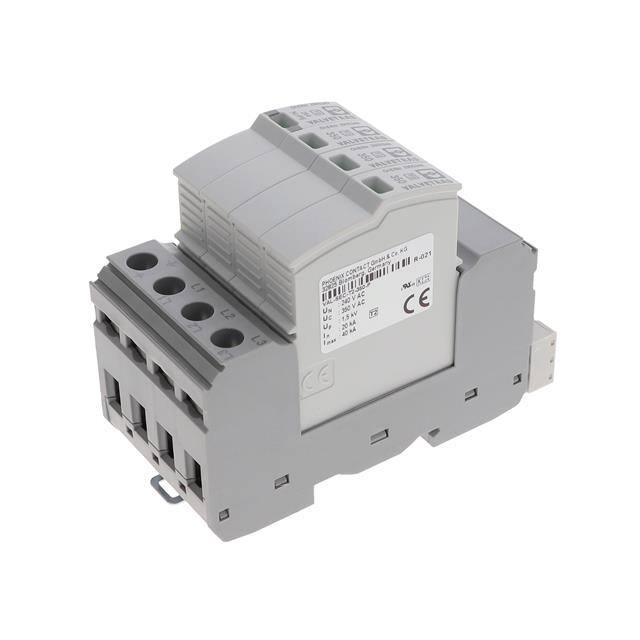

Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug-in surge arrester, in accordance with Type 2/Class II, for 3-phase power supply networks with separate N
and PE (5-conductor system: L1, L2, L3, N, PE), with remote indication contact.
Why buy this product
Varistor arrester with a low leakage current
High-performance gas-filled surge arrester for N/PE protection
Extremely narrow design, just 12 mm per position
High continuous voltage of 350 V AC for 230/400 V AC networks with high voltage fluctuations
Pluggable
Low voltage protection level of 1.5 kV
Optical, mechanical status indicator
Floating remote indication contact
Plugs can be checked with CHECKMASTER 2
Key Commercial Data
Packing unit
1 STK
GTIN
GTIN
4046356948173
Weight per Piece (excluding packing)
406.000 g
Custom tariff number
85363030
Country of origin
Germany
Technical data
Dimensions
Height
97.9 mm
Width
49.2 mm
Horizontal pitch
2.7 Div.
01/19/2017 Page 1 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Technical data
Ambient conditions
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 80 °C
Ambient temperature (storage/transport)
-40 °C ... 80 °C
Altitude
≤ 2000 m (amsl (above mean sea level))
Permissible humidity (operation)
5 % ... 95 %
Shock (operation)
30g (half sinus / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation)
5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
General
IEC test classification
II
T2
EN type
T2
IEC power supply system
TN-S
TT
Mode of protection
L-N
L-PE
N-PE
Mounting type
DIN rail: 35 mm
Color
light grey RAL 7035
traffic grey A RAL 7042
Housing material
PA 6.6-FR 20% GF
PBT-FR
Degree of pollution
2
Flammability rating according to UL 94
V-0
Design
DIN rail module, two-section, divisible
Number of positions
4
Surge protection fault message
Optical, remote indicator contact
Protective circuit
Nominal voltage UN
240/415 V AC (TN-S)
240/415 V AC (TT)
Nominal frequency fN
50 Hz (60 Hz)
Maximum continuous operating voltage UC (L-N)
350 V AC
Maximum continuous operating voltage UC (L-PE)
350 V AC
Maximum continuous voltage UC (N-PE)
264 V AC
Rated load current IL
40 A (Biconnect M4 fork-type cable lug 6 mm²)
63 A (TWIN ferrule 2 x 10 mm²)
Residual current IPE
≤ 1 µA
Nominal discharge current In (8/20) µs
20 kA
Maximum discharge current Imax (8/20) µs
40 kA
Follow current interrupt rating Ifi (N-PE)
100 A (264 V AC)
01/19/2017 Page 2 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Technical data
Protective circuit
Short-circuit current rating ISCCR
25 kA (in case of 315 A gG backup fuse)
50 kA (in case of 200 A gG backup fuse)
Voltage protection level Up (L-N)
≤ 1.5 kV
Voltage protection level Up (L-PE)
≤ 1.9 kV
Voltage protection level Up (N-PE)
≤ 1.5 kV
Residual voltage Ures (L-N)
≤ 1.5 kV (at In)
≤ 1.3 kV (at 10 kA)
≤ 1.2 kV (at 5 kA)
≤ 1.1 kV (at 4 kA)
≤ 1 kV (at 2 kA)
Residual voltage Ures (N-PE)
≤ 0.5 kV (at In)
≤ 0.5 kV (at 10 kA)
≤ 0.5 kV (at 5 kA)
≤ 0.5 kV (at 4 kA)
≤ 0.5 kV (at 2 kA)
TOV behavior at UT (L-N)
415 V AC (5 s / withstand mode)
457 V AC (120 min / safe failure mode)
TOV behavior at UT (N-PE)
1200 V AC (200 ms / withstand mode)
Response time tA (L-N)
≤ 25 ns
Response time tA (N-PE)
≤ 100 ns
Max. backup fuse with branch wiring
315 A (gG)
Max. backup fuse with V-type through wiring
40 A (gG / Biconnect M4 fork-type cable lug, 6 mm²)
63 A (gG / TWIN ferrule 2x 10mm²)
Indicator/remote signaling
Switching function
PDT contact
Operating voltage
5 V AC ... 250 V AC
125 V DC (200 mA DC)
Operating current
5 mA AC ... 1 A AC
1 A DC (30 V DC)
Connection method
Pluggable screw connection
Screw thread
M2
Tightening torque
0.25 Nm
Stripping length
7 mm
Conductor cross section flexible
0.14 mm² ... 1.5 mm²
Conductor cross section solid
0.14 mm² ... 1.5 mm²
Conductor cross section AWG
28 ... 16
Connection data
Connection method
Screw connection
Screw thread
M5
01/19/2017 Page 3 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Technical data
Connection data
Tightening torque
4.5 Nm
Stripping length
16 mm
Conductor cross section flexible
2.5 mm² ... 16 mm²
Conductor cross section solid
2.5 mm² ... 25 mm²
Conductor cross section AWG
12 ... 4
UL specifications
SPD Type
4CA
Maximum continuous operating voltage MCOV (L-L)
700 V AC
Maximum continuous operating voltage MCOV (L-N)
350 V AC
Maximum continuous operating voltage MCOV (L-G)
350 V AC
Maximum continuous operating voltage MCOV (N-G)
264 V AC
Nom. voltage
240/415 V AC
Mode of protection
L-L
L-N
L-G
N-G
Power distribution system
3Y
Nominal frequency
50/60 Hz
Measured limiting voltage MLV (L-L)
3280 V
Measured limiting voltage MLV (L-N)
2000 V
Measured limiting voltage MLV (L-G)
2080 V
Measured limiting voltage MLV (N-G)
950 V
Nominal discharge current In (L-L)
20 kA
Nominal discharge current In (L-N)
20 kA
Nominal discharge current In (L-G)
20 kA
Nominal discharge current In (N-G)
20 kA
UL indicator/remote signaling
Operating voltage
125 V AC
Operating current
1 A AC
Tightening torque
2 lbf-in. ... 4 lbf-in.
Conductor cross section AWG
30 ... 14
UL connection data
Conductor cross section AWG
14 ... 2 (solid)
14 ... 4 (stranded)
Tightening torque
40 lbf-in. ... 50 lbf-in.
Standards and Regulations
Standards/regulations
IEC 61643-11 2011
EN 61643-11 2012
01/19/2017 Page 4 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Application drawing
Dimensional drawing
97,9
49,2
T2
T2
T2
VAL-SEC
T2-350-P
VAL-SEC
T2-350-P
VAL-SEC
T2-350-P
67
N/PE
VAL-SEC-T2
N/PE-350-P
74,5
VALVETRAB VALVETRAB VALVETRAB VALVETRAB
F2
F1
L1
L2
L3
N
PE
L1
L2
L3
N
PE
01/19/2017 Page 5 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Product drawing
Circuit diagram
N
12
11
PE
L1
L2
14
FM
L3
VALVETRAB VALVETRAB VALVETRAB VALVETRAB
N/PE
T2
T2
T2
VAL-SEC-T2
N/PE-350-P
VAL-SEC
T2-350-P
VAL-SEC
T2-350-P
VAL-SEC
T2-350-P
Classifications
eCl@ss
eCl@ss 5.1
27130801
eCl@ss 6.0
27130805
eCl@ss 8.0
27130805
eCl@ss 9.0
27130805
ETIM
ETIM 5.0
EC000941
ETIM 6.0
EC000941
UNSPSC
UNSPSC 13.2
39121620
Approvals
Approvals
Approvals
UL Recognized / KEMA-KEUR / cUL Recognized / CCA / IECEE CB Scheme / GL / EAC / cULus Recognized
Ex Approvals
01/19/2017 Page 6 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Approvals
Approval details
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 330181
KEMA-KEUR
http://www.dekra-certification.com
2196453.01
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 330181
NTR-NL 7347
CCA
IECEE CB Scheme
http://www.iecee.org/
NL-34356
GL
http://www.gl-group.com/newbuilding/approvals/index.html
13947-15 HH
EAC
RU CDE.A*30.B01561
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Accessories
Accessories
Device marking
Label - EML (20XE)R - 0803452
Label, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK S1.1, Mounting type: Adhesive,
Lettering field: continuous x 20 mm
01/19/2017 Page 7 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Accessories
Label - EML (20XE)R YE - 0803453
Label, Roll, yellow, unlabeled, can be labeled with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK S1.1, Mounting type: Adhesive,
Lettering field: continuous x 20 mm
Zack marker strip - ZBN 18:UNBEDRUCKT - 2809128
Zack marker strip, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, Mounting type:
Snap into tall marker groove, for terminal block width: 18 mm, Lettering field: 18 x 5 mm
Zack marker strip - ZBN 18:UNBEDRUCKT - 2809128
Zack marker strip, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, Mounting type:
Snap into tall marker groove, for terminal block width: 18 mm, Lettering field: 18 x 5 mm
End block
End clamp - CLIPFIX 35 - 3022218
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color:
gray
Labeled device marker
Marker for terminal blocks - ZBN 18,LGS:L1-N,ERDE - 2749576
Marker for terminal blocks, Strip, white, labeled, Horizontal: L1, L2, L3, N, GND, Mounting type: Snap into tall marker
groove, for terminal block width: 18 mm, Lettering field: 18 x 5 mm
01/19/2017 Page 8 / 10
https://www.phoenixcontact.com/in/products/2905340
Type 2 surge arrester - VAL-SEC-T2-3S-350-FM - 2905340
Accessories
Marker for terminal blocks - ZBN 18,LGS:ERDE - 2749589
Marker for terminal blocks, Strip, white, labeled, Horizontal: Grounding symbol, Mounting type: Snap into tall marker
groove, for terminal block width: 18 mm, Lettering field: 18 x 5 mm
Marker pen
Marker pen - X-PEN 0,35 - 0811228
Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35
mm
Terminal marking
Flat zack marker sheet - ZBFM 5/WH:UNBEDRUCKT - 0803595
Flat zack marker sheet, Sheet, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, Mounting
type: Snap into flat marker groove, for terminal block width: 5.2 mm, Lettering field: 5 x 4.5 mm
Spare parts
Type 2 surge protection plug - VAL-SEC-T2-350-P - 2905346
Replacement plug for surge arresters from the VALVETRAB SEC product range for L-N and L-PEN paths.
Type 2 surge protection plug - VAL-SEC-T2-N/PE-350-P - 2905347
Replacement plug for surge arresters from the VALVETRAB SEC product range for the N-PE path.
01/19/2017 Page 9 / 10
