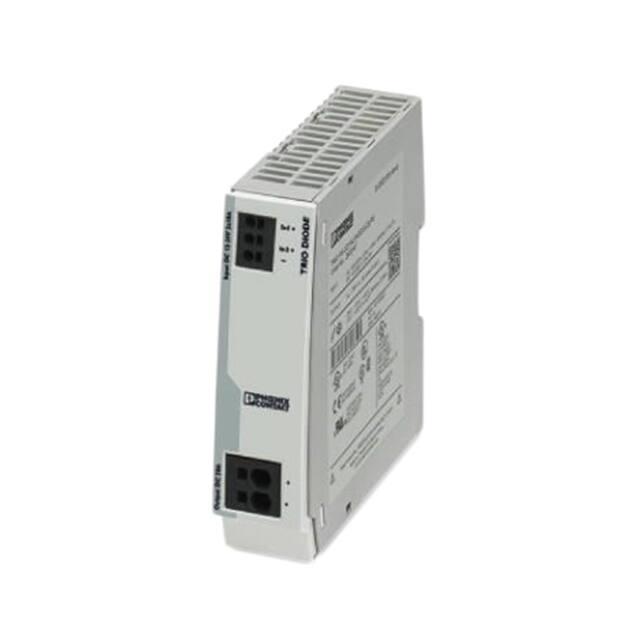

https://www.phoenixcontact.com/us/products/2907380 Diode - TRIO2-DIODE/12-24DC/2X10/1X20 - 2907380 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Redundancy module, 12 V - 24 V DC, 2 x 10 A, 1 x 20 A Product Description A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, TRIO DIODE provides the solution: decoupling with diode. Why buy this product  Quick and easy installation, thanks to Push-in connection technology  Save energy  Redundant wiring up to the load  Permanent monitoring of redundancy  Consistent redundancy up to the load Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626198262 Weight per Piece (excluding packing) 520.000 g Custom tariff number 85049091 Country of origin China Technical data Dimensions Width 35 mm Height 130 mm 07/30/2017   Page 1 / 5 https://www.phoenixcontact.com/us/products/2907380 Diode - TRIO2-DIODE/12-24DC/2X10/1X20 - 2907380 Technical data Dimensions Depth 115 mm Ambient conditions Degree of protection IP20 Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) Ambient temperature (storage/transport) -40 °C ... 85 °C Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing) Climatic class 3K3 (in acc. with EN 60721) Degree of pollution 2 Input data Nominal input voltage range 12 V DC ... 24 V DC Input voltage range 10 V DC ... 30 V DC Nominal input current 2x 10 A (-25 °C ... 60 °C) 1x 20 A (-25 °C ... 60 °C) Maximum input current 2x 15 A (-25°C ... 40°C) 1x 30 A (-25°C ... 40°C) Nominal input current 2x 10 A (-25 °C ... 60 °C) 1x 20 A (-25 °C ... 60 °C) Output data Nominal output current (IN) 10 A Derating 60 °C ... 70 °C (2.5%/K) Connection in series No Power loss nominal load max. 10 W (IOUT = 10 A) General Net weight 0.4 kg Efficiency > 97 % Protection class III Degree of protection IP20 MTBF (IEC 61709, SN 29500) 25 °C 40 °C 60 °C Mounting position horizontal DIN rail NS 35, EN 60715 Assembly instructions Alignable: 0 mm horizontally, 30 mm vertically Connection data, input Connection method Push-in connection Conductor cross section solid min. 0.2 mm² 07/30/2017   Page 2 / 5 https://www.phoenixcontact.com/us/products/2907380 Diode - TRIO2-DIODE/12-24DC/2X10/1X20 - 2907380 Technical data Connection data, input Conductor cross section solid max. 4 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Stripping length 10 mm Connection data, output Connection method Screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 14 Stripping length 8 mm Screw thread M3 Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU Noise immunity EN 61000-6-2:2005 Standards/regulations EN 61000-4-2 Contact discharge 4 kV (Test Level 2) Standards/regulations EN 61000-4-3 Frequency range 80 MHz ... 1 GHz Test field strength 10 V/m Frequency range 1.4 GHz ... 2 GHz Test field strength 3 V/m Standards/regulations EN 61000-4-4 Comments Criterion B Standards/regulations EN 61000-4-5 EN 61000-6-3 EN 61000-4-6 Frequency range 0.15 MHz ... 80 MHz Voltage 10 V (Test Level 3) Standards/regulations EN 61000-4-11 Low Voltage Directive Conformance with LV directive 2006/95/EC Standard - Electrical safety IEC 60950-1/VDE 0805 (SELV) 07/30/2017   Page 3 / 5 https://www.phoenixcontact.com/us/products/2907380 Diode - TRIO2-DIODE/12-24DC/2X10/1X20 - 2907380 Technical data Standards and Regulations Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV) Standard – Safety extra-low voltage IEC 60950-1 (SELV) and EN 60204-1 (PELV) UL approvals UL/C-UL listed UL 508 UL/C-UL Recognized UL 60950-1 Shock 18 ms, 30g, in each space direction (according to IEC 60068-2-27) Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min. Drawings Block diagram 2x10 A ln1 + + ln2 + + - Classifications eCl@ss eCl@ss 4.0 27250311 eCl@ss 4.1 27250311 eCl@ss 5.0 27242213 eCl@ss 5.1 27242213 eCl@ss 6.0 27049002 eCl@ss 7.0 27049002 eCl@ss 8.0 27371010 eCl@ss 9.0 27371010 ETIM ETIM 5.0 EC002540 ETIM 6.0 EC002540 UNSPSC UNSPSC 13.2 39121004 07/30/2017   Page 4 / 5 https://www.phoenixcontact.com/us/products/2907380 Diode - TRIO2-DIODE/12-24DC/2X10/1X20 - 2907380 Approvals Approvals Approvals UL Recognized / UL Listed / cUL Recognized / cUL Listed / EAC / cULus Listed Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 211944 UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 211944 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  FILE E 123528 EAC      RU CDE.A*30.B.01082 cULus Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 07/30/2017   Page 5 / 5
