2907752

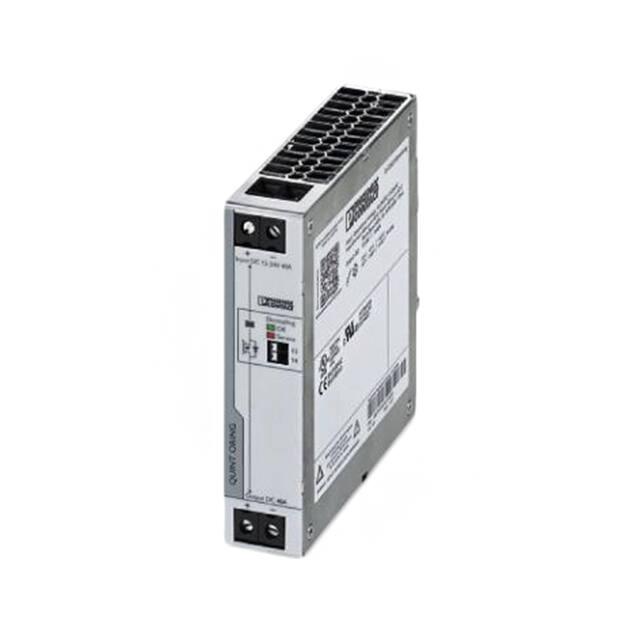

https://www.phoenixcontact.com/gb/products/2907752 Redundancy module - QUINT4-S-ORING/12-24DC/1X40 - 2907752 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Active QUINT single redundancy module for DIN rail mounting, input: 12 - 24 V DC, output: 12 - 24 V DC/1 x 40 A, incl. mounted UTA 107/30 universal DIN rail adapter Product Description Active redundancy module for superior system availability and maximum operational reliability. QUINT S-ORING enables the separate structuring of a redundant system. In combination with the new QUINT POWER power supply, the redundant system is monitored continuously. Why buy this product  Consistent redundancy up to the load  Input voltage and decoupling section monitored on a permanent basis  Save energy by decoupling with MOSFET Key Commercial Data Packing unit 1 STK GTIN GTIN 4055626231907 Weight per Piece (excluding packing) 728.700 g Custom tariff number 85049091 Country of origin China Technical data Dimensions Width 32 mm Height 130 mm Depth 125 mm Width with alternative assembly 122 mm Height with alternative assembly 130 mm Depth with alternative assembly 35 mm Ambient conditions 08/16/2017   Page 1 / 5 https://www.phoenixcontact.com/gb/products/2907752 Redundancy module - QUINT4-S-ORING/12-24DC/1X40 - 2907752 Technical data Ambient conditions Degree of protection IP20 Ambient temperature (operation) -40 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) Ambient temperature (storage/transport) -40 °C ... 85 °C Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing) Climatic class 3K3 (in acc. with EN 60721) Degree of pollution 2 Installation height ≤ 5000 m (> 2000 m, observe derating) Input data Nominal input voltage range 12 V DC ... 24 V DC Input voltage range 8 V DC ... 30 V DC (SELV) Nominal input current 40 A (-40 °C ... 60 °C) Output data Output voltage range 8 V DC ... 30 V DC Nominal output current (IN) 40 A Static Boost (IStat.Boost) 45 A Dynamic Boost (IDyn.Boost) 60 A Selective Fuse Breaking (ISFB) 240 A (15 ms) Derating 60 °C ... 70 °C (2.5%/K) Connection in series No Power loss nominal load max. 6 W (IOUT = 40 A) General Net weight 0.55 kg Efficiency > 99 % Protection class III Degree of protection IP20 MTBF (IEC 61709, SN 29500) 13475000 h (25 °C) 15000000 h (40 °C) 7450000 h (60 °C) Mounting position horizontal DIN rail NS 35, EN 60715 Assembly instructions alignable: PN ≥50 %, 5 mm horizontally, 15 mm next to active components, 50 mm vertically anreihbar: PN
