2908040

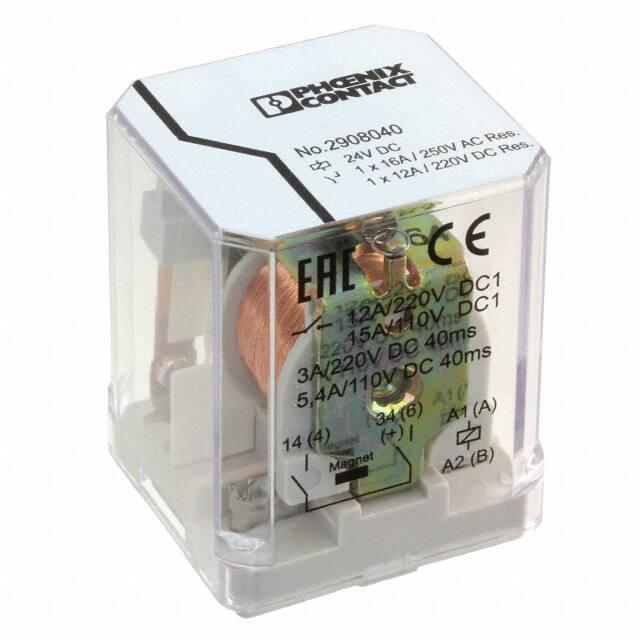

https://www.phoenixcontact.com/us/products/2908040 Single relay - REL-PR1-24DC/1/MB - 2908040 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug-in high-power relay with power contacts, specifically for switching high DC loads, 1 N/O contact, blowout magnet, coil voltage: 24 V DC Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 80.000 g Custom tariff number 85364190 Country of origin Poland Technical data Dimensions Width 38.6 mm Height 45.5 mm Depth 36.1 mm Ambient conditions Ambient temperature (operation) -40 °C ... 70 °C Ambient temperature (storage/transport) -40 °C ... 85 °C Coil side Nominal input voltage UN 24 V DC Input voltage range in reference to UN see diagram Typical input current at UN 70 mA Typical response time 20 ms Typical release time 15 ms Contact side 09/30/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/2908040 Single relay - REL-PR1-24DC/1/MB - 2908040 Technical data Contact side Contact type 1 N/O contact Type of switch contact Single contact Contact material AgNi Maximum switching voltage 440 V AC 350 V DC Minimum switching voltage 5 V (At 24 mA) Min. switching current 5 mA (at 24 V) Maximum inrush current 50 A (20 ms) 30 A (4 s) Limiting continuous current 16 A Interrupting rating (ohmic load) max. 384 W (at 24 V DC) 768 W (at 48 V DC) 930 W (at 60 V DC) 1650 W (at 110 V DC) 2640 W (at 220 V DC) 4000 VA (for 250 V AC) Switching capacity min. 120 mW Switching capacity in acc. with DIN VDE 0660/IEC 60947 1 A (at 220 V, DC13) 1.5 A (at 240 V, AC15) General Test voltage relay winding/relay contact 2.5 kV Operating mode 100% operating factor Degree of protection RT I Mechanical service life Approx. 2 x 10 cycles Degree of pollution 3 Overvoltage category III Designation Standards/regulations Standards/regulations IEC 61810 Mounting position any 7 Standards and Regulations Rated surge voltage 4 kV Degree of pollution 3 Overvoltage category III Designation Standards/regulations Standards/regulations IEC 61810 09/30/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/2908040 Single relay - REL-PR1-24DC/1/MB - 2908040 Classifications eCl@ss eCl@ss 4.0 27371104 eCl@ss 4.1 27371104 eCl@ss 5.0 27371601 eCl@ss 5.1 27371601 eCl@ss 6.0 27371601 eCl@ss 7.0 27371601 eCl@ss 8.0 27371601 eCl@ss 9.0 27371601 ETIM ETIM 2.0 EC001437 ETIM 3.0 EC001437 ETIM 4.0 EC001437 ETIM 5.0 EC001437 UNSPSC UNSPSC 6.01 30211916 UNSPSC 7.0901 39121515 UNSPSC 11 39121515 UNSPSC 12.01 39121515 UNSPSC 13.2 39121515 Approvals Approvals Approvals EAC Ex Approvals Approval details EAC   7500651.22.01.00244 09/30/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/2908040 Single relay - REL-PR1-24DC/1/MB - 2908040 Accessories Additional products Relay socket - RIF-4-BPT/3X21 - 2900961 RIF-4... relay base, for high-power relay with 2 or 3 PDTs or 3 N/O contacts, push-in connection, plug-in option for input/ suppressor modules, for mounting on NS 35/7,5     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 09/30/2016   Page 4 / 4
