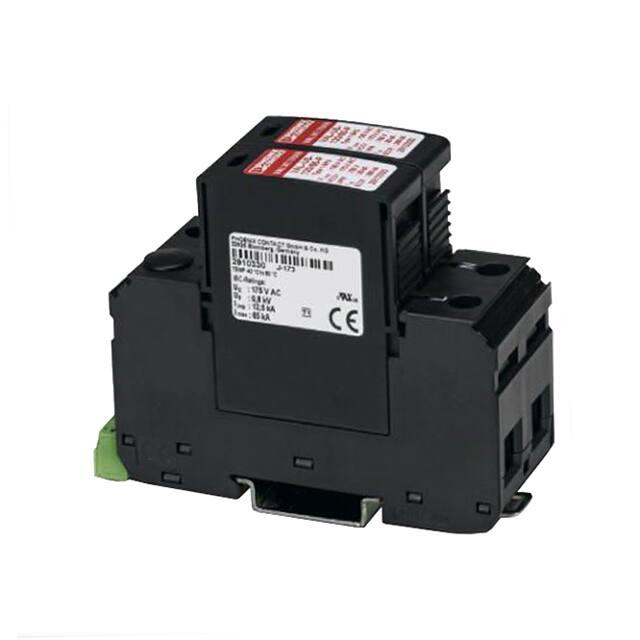

VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid. Surge protective device, two channels with remote indicator contact for 48 V DC, 2-wire plus ground Commercial data Item number 2910346 Packing unit 1 pc Sales key CL17 Product key CL115U Catalog page Page 90 (C-4-2019) GTIN 4055626444888 Weight per piece (including packing) 262 g Weight per piece (excluding packing) 262 g Customs tariff number 85363030 Country of origin DE Jan 8, 2024, 9:17 AM Page 1 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Technical data Product properties IEC test classification I / II T1 / T2 EN type T1 / T2 IEC power supply system DC Type DIN rail module, two-section, divisible Product type Surge protection for NEMA power supply units Product family VALVETRAB US Number of positions 2 Surge protection fault message Optical, remote indicator contact Insulation characteristics Overvoltage category III Pollution degree 2 Electrical properties Indicator/remote signaling Connection name Remote fault indicator contact Switching function Changeover contact Operating voltage 5 V AC ... 250 V AC 30 V DC Operating current 5 mA AC ... 1.5 A AC 1 A DC (30 V DC) Connection data Connection method Screw connection Screw thread M5 Tightening torque 4.5 Nm (1.5 mm² ... 16 mm²) 4.5 Nm (25 mm² ... 35 mm²) Stripping length 16 mm Conductor cross section flexible 1.5 mm² ... 25 mm² Conductor cross section rigid 1.5 mm² ... 35 mm² Conductor cross section AWG 15 ... 2 Remote fault indicator contact Connection method Screw connection Screw thread M2 Tightening torque 0.25 Nm Stripping length 7 mm Conductor cross section flexible 0.14 mm² ... 1.5 mm² Conductor cross section rigid 0.14 mm² ... 1.5 mm² Conductor cross section AWG 28 ... 16 Jan 8, 2024, 9:17 AM Page 2 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Dimensions Dimensional drawing Width 35.6 mm Height 96.8 mm Depth 77.5 mm (incl. DIN rail 7.5 mm) Horizontal pitch 2 Div. Material specifications Flammability rating according to UL 94 V-0 CTI value of material 600 Insulating material PA 6.6/PBT Material group I Housing material PA 6.6 PBT Protective circuit Mode of protection (DC+) - (DC-) (DC+/DC-) - PE Direction of action 1L-N & N-GND Nominal voltage UN 60 V AC ±10 % (TN-S) 60 V DC ±10 % -48 V DC ±10 % (RRH) Maximum continuous voltage UC 100 V DC Rated load current IL 80 A Residual current IPE ≤ 0.6 mA Nominal discharge current In (8/20) µs 12.5 kA Total discharge current Itotal (10/350) µs 12.5 kA Short-circuit current rating ISCCR 5 kA Voltage protection level Up (DC+) - (DC-) ≤ 0.4 kV Voltage protection level Up (DC+/DC-) - PE ≤ 0.4 kV Residual voltage Ures ≤ 0.4 kV (at In) ≤ 0.35 kV (at 10 kA) ≤ 0.3 kV (at 5 kA) ≤ 0.25 kV (at 3 kA) TOV behavior at UT 130 V DC (5 s / withstand mode) Response time tA ≤ 25 ns Max. backup fuse with V-type through wiring 80 A (gG) Max. backup fuse with branch wiring 160 A (gG) Environmental and real-life conditions Ambient conditions Degree of protection IP20 (only when all terminal points are used) Ambient temperature (operation) -40 °C ... 80 °C Jan 8, 2024, 9:17 AM Page 3 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Ambient temperature (storage/transport) -40 °C ... 80 °C Altitude ≤ 2000 m (amsl) Permissible humidity (operation) 5 % ... 95 % Shock (operation) 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) Vibration (operation) 7.5g (10 ... 500 Hz / 2.5 h / X, Y, Z) Approvals UL specifications Short-circuit current rating (SCCR) 5 kA (DC) Voltage protection rating VPR (DC+) - (DC-) 400 V Voltage protection rating VPR (DC+) - G 400 V Voltage protection rating VPR (DC-) - G 600 V UL type type 1 Nominal discharge current In 20 kA Maximum Surge Current per Phase 65 kA Mode of protection (DC+) - (DC-) (DC+) - G Nominal voltage 48 V DC Power distribution system DC SPD Type 1 UL indicator/remote signaling Operating voltage 125 V AC AC operating current 1 A AC UL connection data Tightening torque 30 lbf-in. Conductor cross section AWG 14 ... 2 Standards and regulations Air clearances and creepage distances Standards/regulations EN 60664-1 / EN 61643-11 Standards/specifications IEC 61643-11 Note 2011 Standards/specifications EN 61643-11 Note 2012 Mounting Mounting type DIN rail: 35 mm Jan 8, 2024, 9:17 AM Page 4 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Drawings Dimensional drawing 96,8 35,6 44 77,5 89,8 Circuit diagram 12 14 11 FM L N Jan 8, 2024, 9:17 AM Page 5 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Approvals To download certificates, visit the product detail page: https://www.phoenixcontact.com/us/products/2910346  UL Listed  cUL Listed Approval ID: FILE E 330181 Approval ID: FILE E 330181 cULus Listed Jan 8, 2024, 9:17 AM Page 6 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Classifications ECLASS ECLASS-11.0 27130805 ECLASS-13.0 27171202 ETIM ETIM 9.0 EC000941 UNSPSC UNSPSC 21.0 39121600 Jan 8, 2024, 9:17 AM Page 7 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Accessories MPB 18/1-10/1.0.0 - Wiring bridge 2830443 https://www.phoenixcontact.com/us/products/2830443 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 10 pitches with contact sequence 1-00 MPB 18/4-12 - Wiring bridge 2809296 https://www.phoenixcontact.com/us/products/2809296 Wiring bridge for modules with connecting pitch 17.5 mm, 4-phase, 12-pos. MPB 18/4- 8 - Wiring bridge 2809283 https://www.phoenixcontact.com/us/products/2809283 Wiring bridge for modules with connecting pitch 17.5 mm, 4-phase, 8pos. Jan 8, 2024, 9:17 AM Page 8 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 MPB 18/3- 6 - Wiring bridge 2809241 https://www.phoenixcontact.com/us/products/2809241 Wiring bridge for modules with connecting pitch 17.5 mm, 3-phase, 6pos. MPB 18/1-57 - Wiring bridge 2809238 https://www.phoenixcontact.com/us/products/2809238 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 57-pos. MPB 18/1-12 - Wiring bridge 2748593 https://www.phoenixcontact.com/us/products/2748593 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 12-pos. MPB 18/1- 9 - Wiring bridge 2748580 https://www.phoenixcontact.com/us/products/2748580 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 9pos. Jan 8, 2024, 9:17 AM Page 9 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 MPB 18/1- 8 - Wiring bridge 2748577 https://www.phoenixcontact.com/us/products/2748577 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 8pos. MPB 18/1- 6 - Wiring bridge 2748564 https://www.phoenixcontact.com/us/products/2748564 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 6pos. MPB 18/1- 4 - Wiring bridge 2809225 https://www.phoenixcontact.com/us/products/2809225 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 4pos. MPB 18/1- 3 - Wiring bridge 2809212 https://www.phoenixcontact.com/us/products/2809212 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 3pos. Jan 8, 2024, 9:17 AM Page 10 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 MPB 18/1- 2 - Wiring bridge 2809209 https://www.phoenixcontact.com/us/products/2809209 Wiring bridge for modules with connecting pitch 17.5 mm, 1-phase, 2pos. ZBN 18,LGS:ERDE - Marker for terminal blocks 2749589 https://www.phoenixcontact.com/us/products/2749589 Marker for terminal blocks, Strip, white, labeled, horizontal: Grounding symbol, mounting type: snapped, for terminal block width: 18 mm, lettering field size:  18 x 5 mm, Number of individual labels: 5 ZBN 18,LGS:L1-N,ERDE - Marker for terminal blocks 2749576 https://www.phoenixcontact.com/us/products/2749576 Marker for terminal blocks, Strip, white, labeled, horizontal: L1, L2, L3, N, GND, mounting type: snapped, for terminal block width: 18 mm, lettering field size:  18 x 5 mm, Number of individual labels: 5 Jan 8, 2024, 9:17 AM Page 11 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 ZBN 18:UNBEDRUCKT - Zack marker strip 2809128 https://www.phoenixcontact.com/us/products/2809128 Zack marker strip, Strip, white, unlabeled, can be labeled with: CMS-P1PLOTTER, PLOTMARK, mounting type: snapped, for terminal block width: 18 mm, lettering field size: 18 x 5 mm, Number of individual labels: 5 DK-BIC-35 - Feed-through terminal block 2749880 https://www.phoenixcontact.com/us/products/2749880 Feed-through terminal block for VAL and FLT applications UCT-TM 16 - Marker for terminal blocks 0829146 https://www.phoenixcontact.com/us/products/0829146 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 16 mm, lettering field size: 14.8 x 9.6 mm, Number of individual labels: 18 Jan 8, 2024, 9:17 AM Page 12 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 SZS 0,4X2,5 VDE - Screwdriver 1205037 https://www.phoenixcontact.com/us/products/1205037 Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip SZK PZ2 VDE - Screwdriver 1206463 https://www.phoenixcontact.com/us/products/1206463 Screwdriver, PZ crosshead, VDE insulated, size: PZ 2 x 100 mm, 2-component grip, with non-slip grip VAL-US-48/65-P - Type 1 surge protection plug 2910328 https://www.phoenixcontact.com/us/products/2910328 UL Recognized type 1 SPD and IEC type 2 surge protection plug with a varistor and thermal disconnect for use with VAL-US base elements, mechanical and visual fault warning Jan 8, 2024, 9:17 AM Page 13 (14) VAL-US-48/65/1+1V-FM - Type 1 surge protection device 2910346 https://www.phoenixcontact.com/us/products/2910346 Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Jan 8, 2024, 9:17 AM Page 14 (14)
